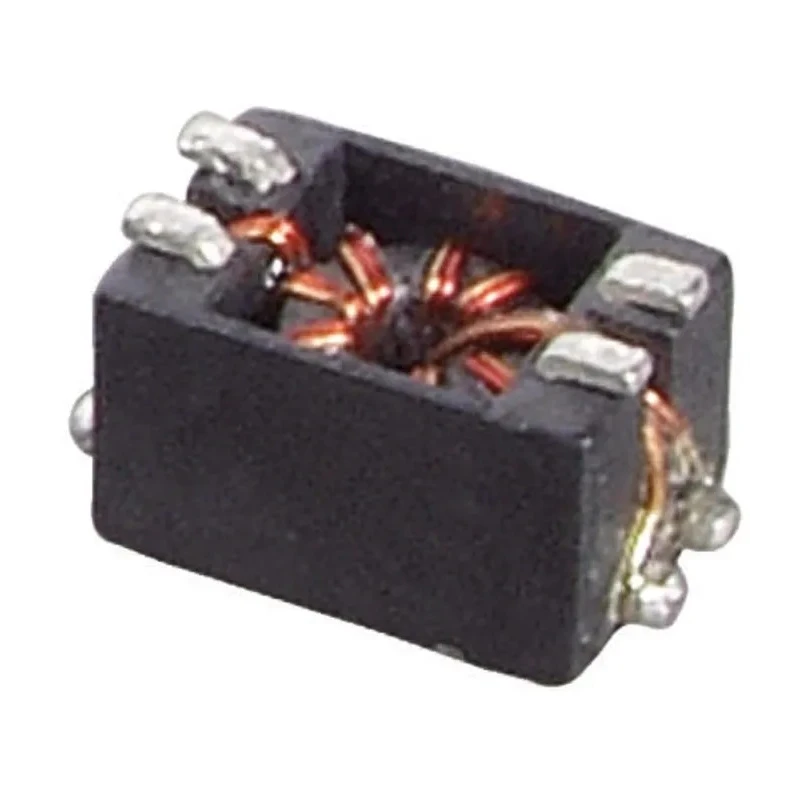

Wurth Elektronik WE-SLM Surface Mount Common Mode Line Filter 22µH -30 to 50% Tolerance 300mA 6mm 744242220
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | - 40°C to +125°C |
| Height | 3.3mm |
| Length | 6mm |
| Depth | 3.3mm |
| Packaging | Tape & Reel |
| Series | WE-SLM |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 22μH |
| Standards/Approvals | Class F, UL-94-V0 |
| Maximum DC Current | 300mA |
| Maximum DC Resistance | 230mΩ |
| Inductance Tolerance | -30 to 50 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 100kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Inductance value of 22 microhenries ensures effective noise suppression.
- High current capability up to 300mA DC for demanding applications.
- Compact dimensions with 6mm length and 3.3mm height and depth.
- Wirewound construction with ferrite core material for high performance.
- Operating temperature range from minus 40°C to plus 125°C.
- Complies with automotive standard AEC-Q200 for reliability.
- Class F insulation rating with UL-94-V0 flammability compliance.
- Packaged in tape and reel format suitable for automated assembly.
Product Description
Wurth Elektronik model 744242220 is a Surface Mount Common Mode Line Filter featuring a ferrite core and wirewound inductor construction. It provides an inductance of 22 microhenries with an inductance tolerance ranging from minus 30 to plus 50 percent. This product can handle a maximum DC current of 300 milliamperes and operates reliably within a temperature range of minus 40 degrees Celsius to plus 125 degrees Celsius.
The filter is designed with compact dimensions measuring 6 millimeters in length and 3.3 millimeters in both height and depth, making it well suited for advanced electronics requiring surface mount components.
It is constructed with a ferrite core and complies with automotive AEC-Q200 standards, ensuring suitability for automotive and industrial environments. The device also meets Class F insulation and UL-94-V0 flammability standards.
Packaging is done in tape and reel format for compatibility with automated manufacturing processes. Its wirewound construction enhances reliability and performance as a noise suppression component.
This common mode choke is recommended for applications including USB, CAN, FireWire interfaces, sensor lines, signal lines, and power supply systems where electromagnetic interference reduction is necessary.
Inductance of 22µH with tolerance -30 to 50%. Maximum DC current rating of 300mA. Compact size: 6mm length, 3.3mm height and depth. Ferrite core and wirewound construction for high efficiency. Operating temperature range: -40°C to +125°C.
Complies with Automotive AEC-Q200 standard. Class F insulation rating and UL-94-V0 flame rating. Low DC resistance of 230 milliohms supports efficient conduction. Tape & Reel packaging for automated assembly. Ideal for noise filtering in USB, CAN, FireWire, and sensor line applications.
Wurth Elektronik products offer reliable components for industrial, electronic, automotive, and telecommunications uses. Explore more high-quality inductors and EMI filters at EnvMart for your electronic circuit designs and manufacturing needs.
Explore more products in our Surface Mount Inductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 22 microhenries, with a tolerance ranging from -30 to +50 percent.
It can handle a maximum DC current of 300 milliamperes.
This filter has compact dimensions measuring 6mm in length, and 3.3mm in both height and depth.
The operating temperature range is from -40°C to +125°C.
It features a ferrite core and a wirewound construction for enhanced performance.
It complies with automotive standard AEC-Q200, Class F insulation rating, and UL-94-V0 flammability standards.
It is packaged in tape and reel format, making it suitable for automated assembly processes.
The maximum self-resonant frequency is 100kHz.
It is recommended for applications including USB, CAN, FireWire interfaces, sensor lines, and power supply systems where noise reduction is necessary.
The maximum DC resistance is 230 milliohms, which supports efficient conduction.
This model utilizes a surface mount termination style.
This filter belongs to the WE-SLM series.
