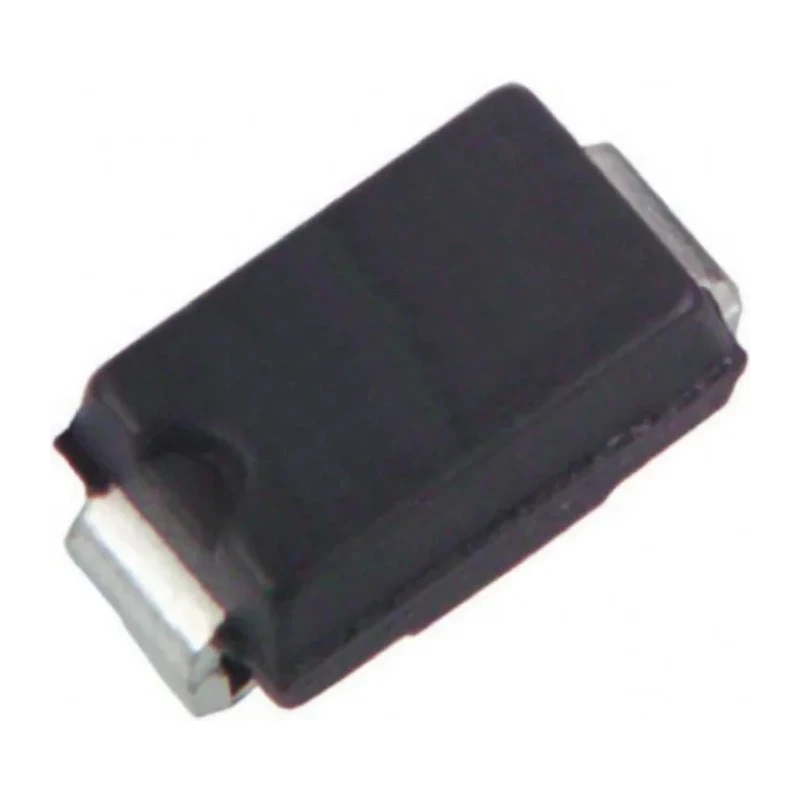

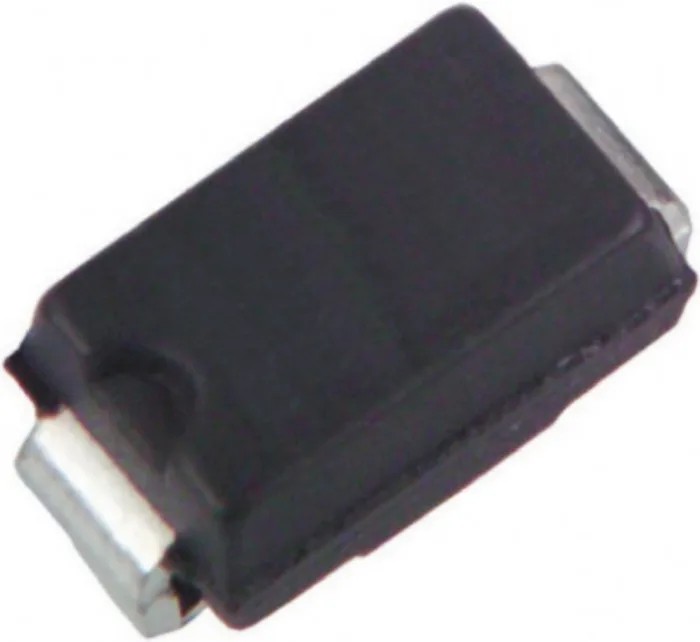

Taiwan Semiconductor 400 V 1.5 A Switching Diode Surface Mount Sub SMA S1GL R2

Taiwan Semiconductor S1GL R2 is a high-performance Schottky rectifier diode rated for 400 V peak reverse voltage and capable of continuous forward current of 1.5 A in a 2-pin Sub SMA surface mount package. It provides efficient switching and low forward voltage drop, making it suitable for power management applications in semiconductor circuits.

This diode supports an operating temperature range from -55°C to 150°C, ensuring reliable operation under harsh industrial and automotive conditions. The maximum forward voltage of 1.1 V reduces power losses during conduction phases.

Its peak non-repetitive forward surge current of 30 A allows absorption of transient high current events without damage, enhancing durability. With a peak reverse recovery time of 1.8 μs, it is optimized for high-frequency switching applications, such as power supplies and voltage regulators.

Measuring 2.9 mm in length, 1.9 mm in width, and 1.43 mm in height, this compact diode fits dense PCB assemblies. Its surface mount design simplifies automated assembly and reduces board space requirements.

The product complies with the AEC-Q101 automotive quality standard making it suitable for automotive electronics and systems requiring stringent reliability.

This single diode rectifier from Taiwan Semiconductor comes packaged on reels, facilitating efficient insertion into automated manufacturing lines and supporting industrial, automotive, and electronic device applications.

This diode features a maximum forward voltage of 1.1 V ensuring efficient switching performance. It supports operation from -55°C to 150°C for robust industrial applications. Peak non-repetitive forward surge current rating is 30 A for transient overload conditions.

The diode exhibits a peak reverse recovery time of 1.8 μs, suitable for switching power supplies. Compliance with AEC-Q101 automotive standards guarantees reliability in demanding environments. Compact dimensions (2.9 mm length, 1.9 mm width, 1.43 mm height) enable dense PCB layouts.

Designed for single diode configuration and surface mounting technology. Explore more semiconductor components and switching diodes from leading manufacturers at EnvMart to support your industrial electronics and power management solutions.
