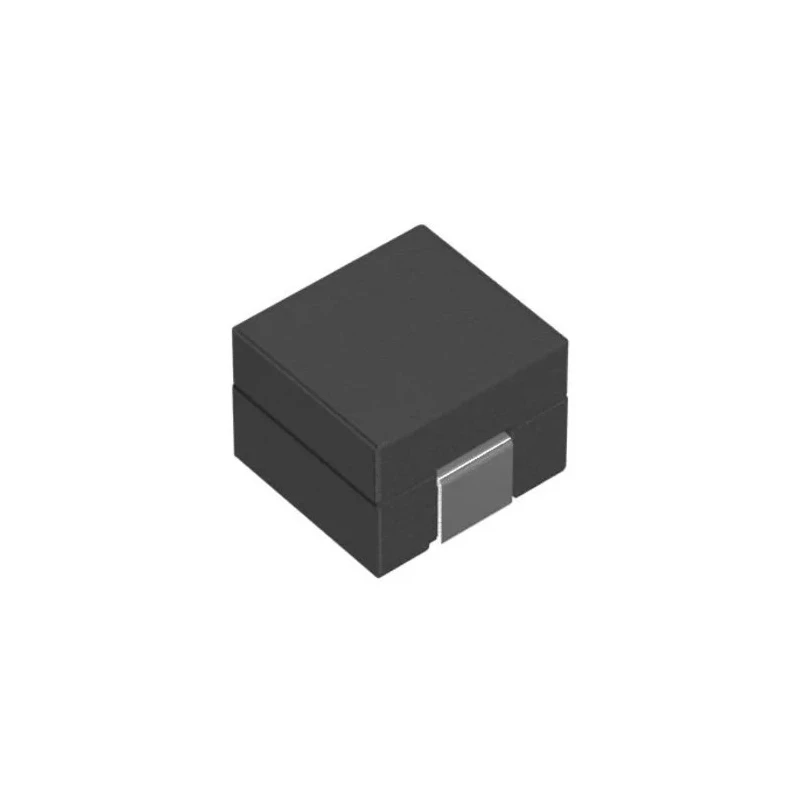

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 110 nH ±20 % 47 A Idc VLB7050HT-R11M
Specifications
| Country of Origin | China |
|---|---|
| Brand | TDK |
| Height | 4.8mm |
| Operating Temperature Range | - 40 to +125°C (including self-temperature rise) |
| Length | 6.8mm |
| Model | VLB7050HT-R11M |
| Depth | 6.7mm |
| Packaging | Reel |
| Series | VLB |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 110nH |
| Standards/Approvals | Lead Free, Halogen Free, RoHS, REACH, SVHC-free |
| Package/Case | 7050 |
| Maximum DC Current | 47A |
| Maximum DC Resistance | 286μΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
| High operating frequency | Up to 2MHz |
| High output processing capacity | Minimal copper loss |
Key Features
- Compact 7050 package with 6.8 mm length, 4.8 mm height, and 6.7 mm depth design.
- High maximum DC current rating of 47 A ensures superior handling of high output processing capacity.
- Low maximum DC resistance of 286 μΩ reduces power loss and enhances efficiency.
- Shielded construction minimizes electromagnetic interference for stable circuit operation.
- Operates reliably at frequencies up to 2 MHz, suitable for high-frequency switching power supplies.
- Wide operating temperature range from -40 °C to 125 °C including self-temperature rise.
- Lead-free, halogen-free, RoHS, REACH, and SVHC-free compliant for environmental safety.
- Ferrite core and wirewound construction ensures high saturation current and durability.
Product Description
TDK VLB7050HT-R11M shielded wirewound surface mount inductor with ferrite core delivers robust inductance of 110 nH ±20 % with high current handling capacity of 47 A. This compact 7050 SMD package measures 6.8 mm in length, 4.8 mm in height, and 6.7 mm in depth, making it suitable for space-constrained electronic circuits.
Designed for demanding industrial and electronic applications, this inductor features minimal copper loss through high output processing capacity. The low maximum DC resistance of 286 μΩ supports efficient energy conversion. Shielding reduces electromagnetic interference, enhancing signal integrity in power and signal lines.
It supports operation frequencies up to 2 MHz, ideal for personal computers and servers, particularly in voltage regulator modules (VRMs). The operating temperature range from -40 °C to 125 °C including self-temperature rise ensures reliable performance under various environmental conditions.
The ferrite core construction combined with wirewound technology provides high saturation current capacity and mechanical stability. Environmentally compliant with lead-free, halogen-free, RoHS, REACH, and SVHC-free standards, it meets modern regulatory requirements.
The product is packaged on a reel facilitating automated surface mount assembly processes common in electronics manufacturing. Applications include personal computing, servers, amusement equipment, and audio-visual devices.
Compact 7050 SMD package for space efficiency. High maximum DC current of 47 A for demanding electrical loads. Low DC resistance ensures energy efficiency. Shielded design for reduced interference. Operates reliably up to 2 MHz frequencies.
Wide temperature tolerance from -40 °C to 125 °C. Environmentally compliant with key global standards. Ferrite core and wirewound construction for durability. Reel packaging for streamlined automated assembly.
Ideal for industrial, electronic, and computing environments requiring reliable inductors with excellent high current performance. Explore more Surface Mount Inductors and TDK products on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 110 nH with a tolerance of ±20%.
It has a maximum DC current rating of 47 A, allowing it to handle high output processing capacity.
This unit has dimensions of 6.8 mm in length, 4.8 mm in height, and 6.7 mm in depth.
The maximum DC resistance is 286 μΩ, which helps reduce power loss and enhance efficiency.
It operates reliably within a temperature range of -40 °C to 125 °C, including self-temperature rise.
This model operates reliably at frequencies up to 2 MHz, making it suitable for high-frequency applications.
It features a wirewound construction with a ferrite core, ensuring high saturation current and durability.
Yes, it is compliant with lead-free, halogen-free, RoHS, REACH, and SVHC-free standards.
It is packaged on a reel, facilitating automated surface mount assembly processes.
This inductor is suitable for applications in personal computing, servers, amusement equipment, and audio-visual devices.
The series designation for this model is VLB, indicating its specific product line within the TDK offerings.
The low maximum DC resistance and high output processing capacity contribute to its efficiency by minimizing copper loss.
