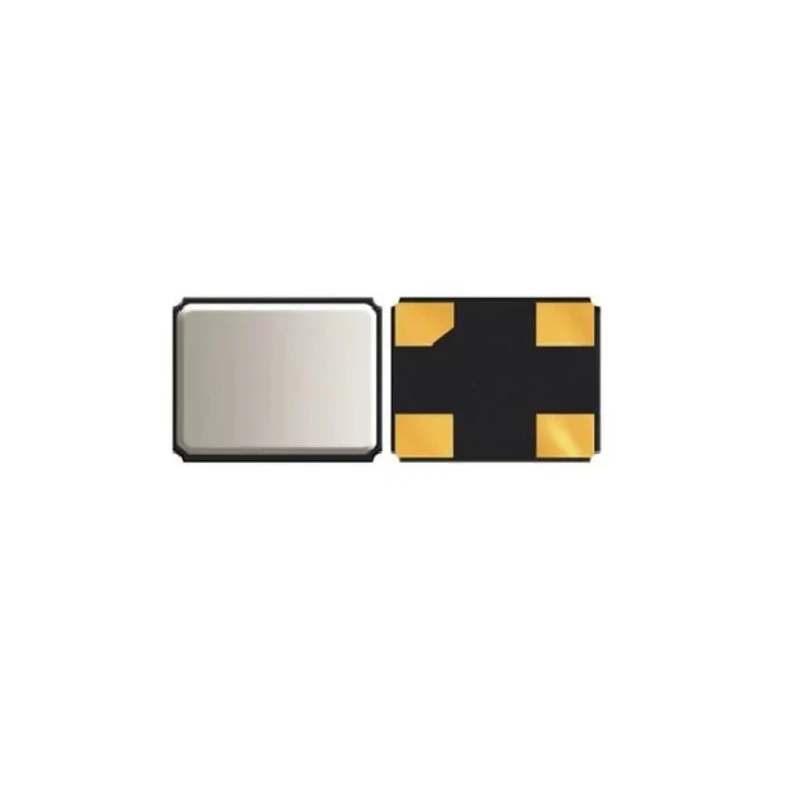

Abracon 27.12 MHz Surface Mount Crystal 8 pF Load Capacitance 4-Pin ABM11W Series ABM11W

The Abracon ABM11W 27.12 MHz Surface Mount Crystal is engineered for compact, height-constrained electronic designs requiring high frequency stability and low power consumption. This 4-pin crystal features an 8 pF load capacitance and a series resistance of 50 Ω, making it ideal for Bluetooth and wireless module applications as well as ultra-low power microcontroller units (MCUs). The device’s small footprint with dimensions of 2 mm length, 1.6 mm width, and only 0.5 mm height fits perfectly in IoT devices, wearables, and embedded systems requiring space-saving components.

Designed for robust performance, the crystal operates reliably across a wide temperature range from -40°C to 125°C. Its frequency tolerance and stability are maintained within ±10 ppm, ensuring precise timing control in sensitive circuits. The ABM11W series comes packaged in tape and reel for automated assembly environments, boosting manufacturing efficiency.

Manufactured to meet RoHS standards, this crystal is environmentally friendly and safety compliant. Its sealed design guarantees long term operational reliability without frequency drift or degradation.

Precise 27.12 MHz frequency suitable for Bluetooth and wireless communication modules. Compact surface mount package reduces PCB area and height profile. High stability and low ESR support accurate timing in low power devices.

Wide operating temperature range for industrial and commercial applications. RoHS compliant for environmental safety. Optimized for wearables, IoT devices, and energy-efficient electronics.

This crystal unit is ideal for industrial electronics manufacturing, embedded system design, wireless modules, and IoT applications where size, power, and frequency accuracy are critical. For more electronic components like crystals, oscillators, and passive devices, explore the Electronics Components category on EnvMart.
