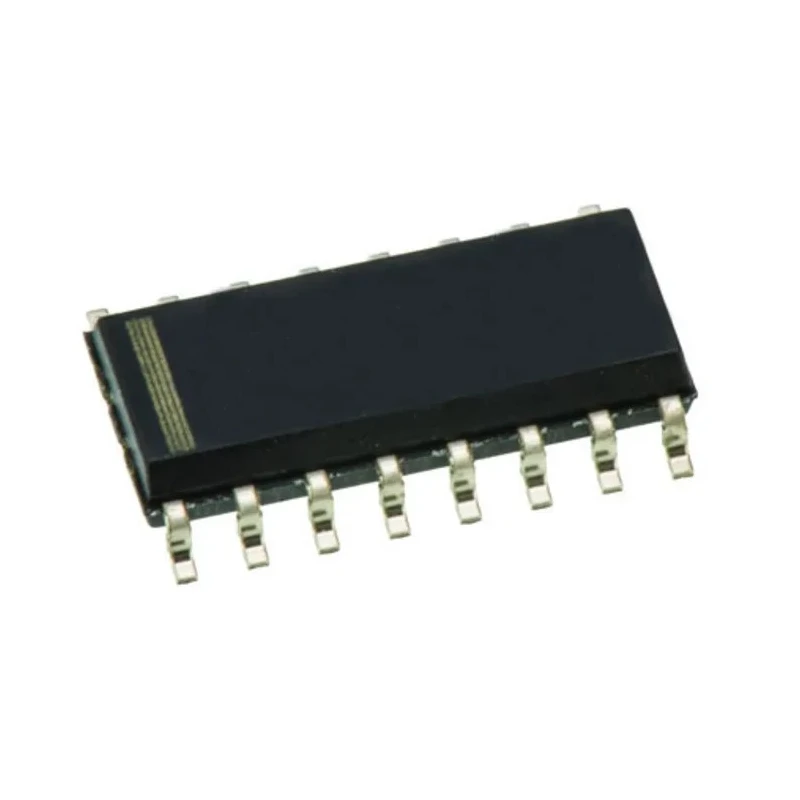

Texas Instruments Instrumentation Amplifier , 1 mV Input Offset Voltage, 2.5 MHz Gain Bandwidth Product, 16-Pin INA110KU
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 2.35mm |
| Length | 10.28mm |
| Model | INA110KU |
| Mount Type | Surface |
| Series | INA110 |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -25°C |
| Number Of Channels | 1 |
| Pin Count | 16 |
| Maximum Supply Voltage | 18V |
| Minimum Supply Voltage | 6V |
| Supply Current | 4.5mA |
| GBP - Gain Bandwidth Product | 2.5MHz |
| Vos - Input Offset Voltage | 1 mV |
| Slew Rate | 17V/μs |
| CMRR - Common Mode Rejection Ratio | 106dB |
Key Features
- The device features a high common mode rejection ratio of 106 dB.
- Operating voltage range spans from 6V to 18V.
- Slew rate of 17 V/μs enables accurate signal amplification.
- Low supply current of 4.5 mA optimizes power usage.
- Designed for surface mount with a compact 16-pin SOIC package.
- Temperature range capability from -25°C to 85°C for versatile usage.
- Provides high input impedance and precise differential gain.
- Ideal for high-precision measurement and electrically noisy environments.
Product Description
Texas Instruments INA110KU instrumentation amplifier delivers high precision differential signal amplification with a low 1 mV input offset voltage, ideal for applications requiring accurate low-level signal detection. The 2.5 MHz gain bandwidth product ensures performance in high-frequency environments.
This 16-pin SOIC device operates on a supply voltage range of 6V to 18V and features a low supply current of 4.5 mA, making it well suited for power-sensitive and compact electronic designs. Its high common mode rejection ratio of 106 dB minimizes interference from unwanted common-mode signals, enhancing measurement reliability.
The INA110KU's slew rate of 17 V/μs supports rapid signal changes without distortion, and the device functions effectively across a temperature range from -25°C to 85°C, enabling robust performance in varied environmental conditions.
Typical applications include industrial and laboratory instrumentation, medical devices, sensor signal conditioning, and any high-precision test and measurement systems operating in noisy electrical environments. Its surface mount 16-pin SOIC package supports efficient PCB layout and assembly processes.
The device provides high input impedance for minimal loading on signal sources. Its three op-amp configuration allows accurate gain settings through internal or external resistors. Low DC offset and drift characteristics contribute to consistent long-term accuracy.
Compact form factor accommodates space-constrained designs. Designed to maintain precise gain and signal integrity in electrically noisy environments. Explore more Texas Instruments Instrumentation Amplifiers and related semiconductor products on EnvMart for your electronic and industrial design projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The INA110KU has an input offset voltage of 1 mV, which is suitable for accurate low-level signal detection.
The gain bandwidth product of the INA110KU is 2.5 MHz, allowing it to perform well in high-frequency applications.
This model operates within a supply voltage range of 6V to 18V, making it versatile for various electronic designs.
The INA110KU features a high common mode rejection ratio of 106 dB, which helps minimize interference from unwanted signals.
The maximum operating temperature for this model is 85°C, allowing it to function effectively in various environments.
The slew rate of the INA110KU is 17 V/μs, enabling it to handle rapid signal changes without distortion.
The INA110KU has a low supply current of 4.5 mA, which optimizes power usage in electronic applications.
This model is designed in a 16-pin SOIC package, suitable for surface mount applications.
The INA110KU has a height of 2.35 mm and a length of 10.28 mm, making it compact for space-constrained designs.
The INA110KU features a single channel, which is typical for instrumentation amplifiers used in precise applications.
This model can operate in a temperature range from -25°C to 85°C, providing versatility in various conditions.
Typical applications for the INA110KU include industrial and laboratory instrumentation, medical devices, and sensor signal conditioning.
