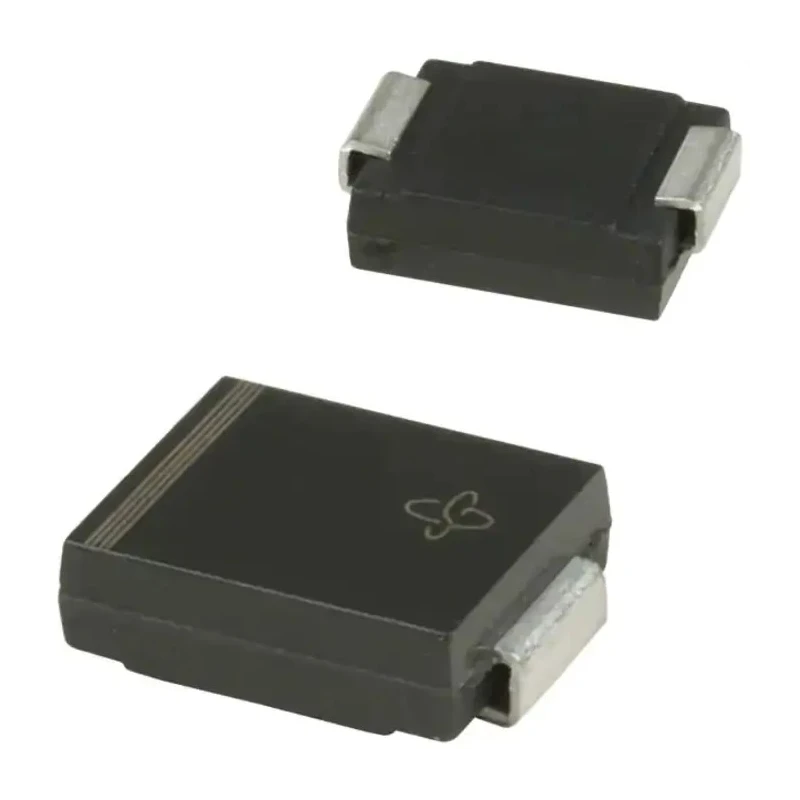

Vishay 1-Element Uni-Directional, Bi-Directional TransZorb TVS Diode 1.5 kW, Surface Mount DO-214 Package SMCJ160CA-E3/57T
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 2.42mm |
| Length | 7.11mm |
| Model | SMCJ160CA-E3/57T |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | TRANSZORB TVS |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 121V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Single |
| Direction Type | Uni-Directional, Bi-Directional |
| Minimum Breakdown Voltage Vbr | 64.6V |
| Maximum Reverse Stand-off Voltage Vwm | 160V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 5.8A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Designed for effective electrostatic discharge protection for sensitive electronics and automotive systems.
- Surface mount DO-214 package with a compact footprint of 7.11mm length, 6.22mm width, and 2.42mm height.
- Operating temperature range from -55°C to 150°C enabling reliable performance in harsh environments.
- Peak pulse current rating of 5.8 A with excellent clamping voltage of 121 V for transient suppression.
- Halogen free and lead-free construction suitable for automated assembly processes.
- Compliance with automotive standard AEC-Q101 ensuring suitability for automotive load dump protection.
- Low incremental surge resistance and glass passivated chip junction for fast response times.
- Typical reverse stand-off voltage of 160 V and reverse breakdown voltage of 64.6 V making it ideal for protecting low voltage circuits.
Product Description
Vishay SMCJ160CA-E3/57T TVS Diode is a robust TransZorb device designed for transient voltage suppression in automotive, industrial, and consumer electronics applications. This 1-element diode is available in a surface mount DO-214 package to support compact PCB designs while offering high reliability against voltage transients.
It features a uni-directional and bi-directional diode configuration with a peak pulse power dissipation rating of 1.5 kW, enabling it to handle severe transient events such as load dumps and electrostatic discharges. The diode provides a clamping voltage of 121 V and a maximum peak pulse current of 5.8 A, thereby effectively protecting sensitive components from damage.
The device operates reliably across a wide junction temperature range from -55°C up to 150°C. Its glass passivated chip junction enhances stability and fast response time essential for protection circuits. The matte tin-plated leads ensure excellent solderability during automated PCB assembly.
Certified to the automotive AEC-Q101 standard, this diode is ideal for automotive load dump protection and other demanding applications requiring high quality and performance. The halogen free and lead (Pb) free composition supports environmentally compliant manufacturing processes.
Applications include protection of ICs, MOSFETs, and signal lines in industrial, telecommunications, computer, and consumer electronic systems. The diode’s capability to handle repetitive 10/1000μs pulse waveforms with a duty cycle of 0.01% makes it versatile for various high-reliability uses.
Effective ESD protection for automotive and industrial electronics. Compact DO-214 surface mount package for space-saving PCB layouts. Wide operating temperature suitable for harsh environments. High peak pulse power and current ratings ensure robust transient suppression.
Environmental compliance with halogen free and lead free materials. Automotive grade and AEC-Q101 qualified for load dump applications. Fast response glass passivated chip junction. Reliable solderable tin-plated leads for automated assembly.
Explore the Electronics & Electricals category at EnvMart for more semiconductor and transient voltage suppression solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation rating of the SMCJ160CA-E3/57T is 1.5 kW, allowing it to handle severe transient events effectively.
This diode operates reliably within a temperature range of -55°C to 150°C, making it suitable for harsh environments.
The clamping voltage of this TVS diode is 121 V, which helps protect sensitive components from voltage transients.
The maximum peak pulse current rating for this diode is 5.8 A, allowing it to effectively suppress transient voltages.
The DO-214 package has dimensions of 7.11 mm in length, 6.22 mm in width, and 2.42 mm in height.
This TVS diode complies with the automotive standard AEC-Q101, ensuring its suitability for automotive applications.
The SMCJ160CA-E3/57T features a uni-directional and bi-directional diode configuration, making it versatile for various applications.
The maximum reverse stand-off voltage for this diode is 160 V, which is important for protecting low voltage circuits.
The minimum breakdown voltage of the SMCJ160CA-E3/57T is 64.6 V, providing effective protection against voltage spikes.
The diode is halogen-free and lead-free, supporting environmentally compliant manufacturing processes.
This model has one element per chip, designed for effective transient voltage suppression.
The maximum reverse leakage current for this diode is 1 μA, which is low and helps in maintaining circuit integrity.
