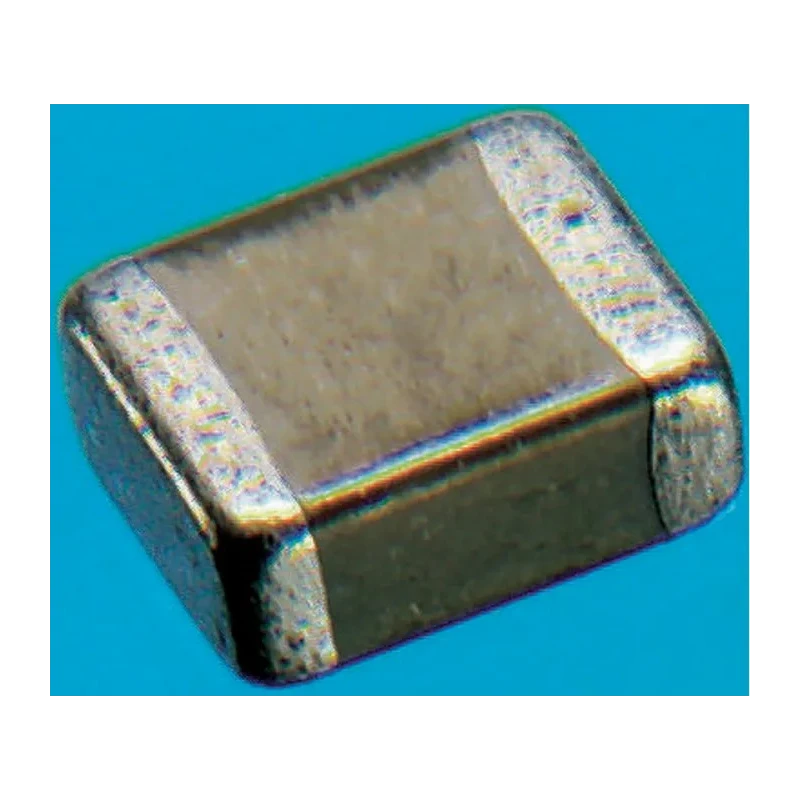

KYOCERA AVX 1 nF Multilayer Ceramic Capacitor 2kV DC ±10% Surface Mount 1210 Package 1210GC102KAT1A

KYOCERA AVX 1210GC102KAT1A is a new multilayer ceramic capacitor designed with high voltage capability and stable electrical performance. Featuring a capacitance of 1 nF and a DC voltage rating of 2 kV, this surface mount device is packaged in a compact 1210 case size suitable for automated manufacturing processes.

This capacitor uses an X7R dielectric, allowing it to maintain capacitance within ±10% across a broad operating temperature range from -55°C up to 125°C. Its high voltage rating and low equivalent series resistance make it ideal for industrial electronic applications including snubbers in high frequency power converters, resonators in switched-mode power supplies (SMPS), and high voltage coupling or DC blocking.

The device is delivered on reel packaging facilitating efficient pick-and-place assembly lines. Capacitance stability and durability are enhanced by the advanced ceramic materials and surface mount termination technology, optimized to ensure reliable solder joints in complex circuit boards.

Dimensions of the capacitor are 3.2 mm in length, 2.5 mm in width, and 1.7 mm in height, enabling compact circuit designs. While the product does not have specific automotive certifications, it is well suited for demanding industrial electronic environments. Protective surface coatings may be applied as needed to prevent external arcing in high voltage applications.

Compact 1210 surface mount package for space-saving design. X7R dielectric for reliable capacitance over wide temperature ranges. 2kV DC rating suitable for high voltage industrial electronics. Low ESR ensures efficiency in high-frequency applications.

Operating temperature from -55°C to 125°C supports harsh environments. Reel packaging for streamlined automated assembly. Dimensions: 3.2 mm (L) × 2.5 mm (W) × 1.7 mm (H). High voltage series optimized for power conversion circuits.

Surface mount termination enables robust electrical connection.

This KYOCERA AVX multilayer ceramic capacitor is optimally designed for electronics manufacturing, industrial power systems, and other high voltage applications requiring compact, efficient capacitors. Explore more products from the Multilayer Ceramic Capacitor category on EnvMart for your component needs.
