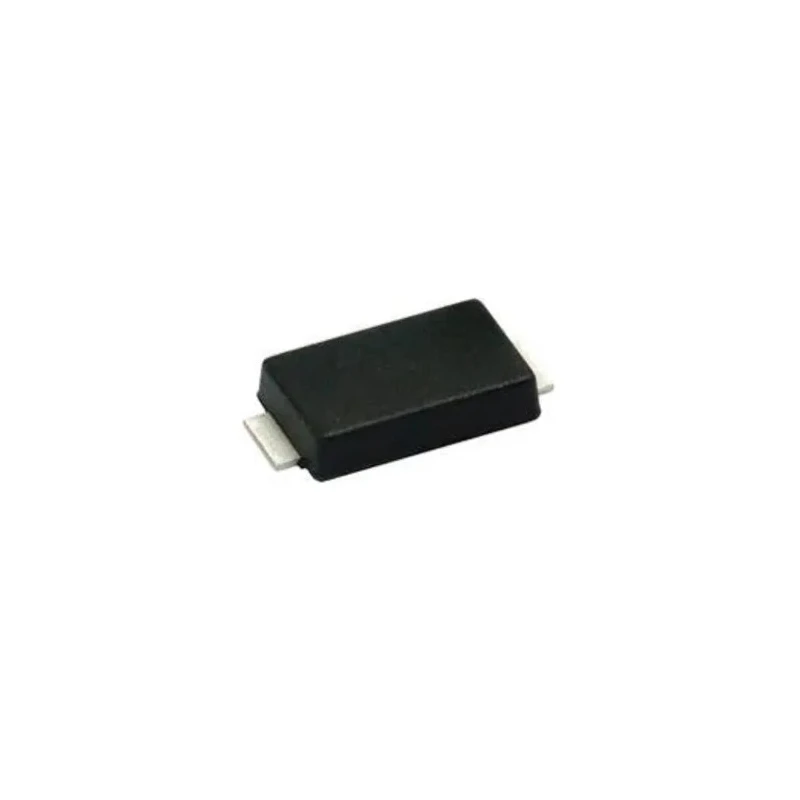

Vishay 1-Element Uni-Directional TVS Diode 600W, 83.3V Breakdown, 75V Stand-off, DO-221, SMA6F75A-M3/H
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1mm |
| Length | 4.35mm |
| Model | SMA6F75A-M3/H |
| Width | 2.7mm |
| Mount Type | Surface |
| Series | eSMP |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-221 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 120V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 83.3V |
| Maximum Reverse Stand-off Voltage Vwm | 75V |
| Peak Pulse Power Dissipation Pppm | 600W |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 25.6A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Single-element, uni-directional TVS diode with robust 600 W peak pulse power rating.
- 83.3 V minimum breakdown voltage ensures reliable clamping of voltage transients.
- 75 V maximum reverse stand-off voltage for effective protection of modern circuitry.
- Compact DO-221 package allows easy surface mounting for automated assembly.
- 2-pin configuration streamlines PCB layout and design flexibility.
- Clamping voltage up to 120 V for safeguarding sensitive semiconductor devices.
- Low 1 µA maximum reverse leakage current supports high-efficiency operation.
- Wide operating temperature range from -55°C to +175°C enables use in harsh environments.
Product Description
The Vishay SMA6F75A-M3/H is a high-performance, single-element uni-directional TVS (Transient Voltage Suppression) diode engineered for reliable protection of electronic circuits from voltage spikes, surges, and electrical transients. With a robust 600 W peak pulse power rating and 83.3 V minimum breakdown voltage, this diode offers exceptional safeguarding for sensitive components across a broad range of industrial and commercial applications.
This component integrates a 2-pin DO-221 surface-mount package, designed for streamlined automated placement and optimized for compact electronic designs. Its compact dimensions - 1 mm height, 4.35 mm length, and 2.7 mm width - enable efficient PCB use and excellent thermal performance.
Single-element, uni-directional design for precise and dependable voltage suppression. 75 V maximum reverse stand-off voltage allows effective circuit protection while supporting modern operating voltages. Clamping voltage rating up to 120 V ensures rapid response to high-energy surges, minimizing component stress.
Low 1 µA maximum reverse leakage current contributes to energy efficiency in always-on designs. Broad operating temperature range from -55°C to +175°C, suitable for use in automotive, industrial, telecommunications, consumer, and computing systems.
Complies with industry standards for performance and reliability, and features ESD protection for sensitive signal lines. Surface-mountable (DO-221) for compatibility with high-reliability SMD assembly processes.
These TVS diodes are ideal for protection against voltage transients induced by switching, inductive load spikes, or lightning events, commonly found in sensor input lines, data communication interfaces, and power supply rails.
Industries served include automotive electronics, industrial controls, power management systems, telecommunications infrastructure, consumer device manufacturing, and computer hardware.
Discover more TVS diodes and unmatched protection solutions for your design requirements in our Electronics & Electricals > Semiconductor > TVS Diode category, featuring Vishay and other trusted global brands.
