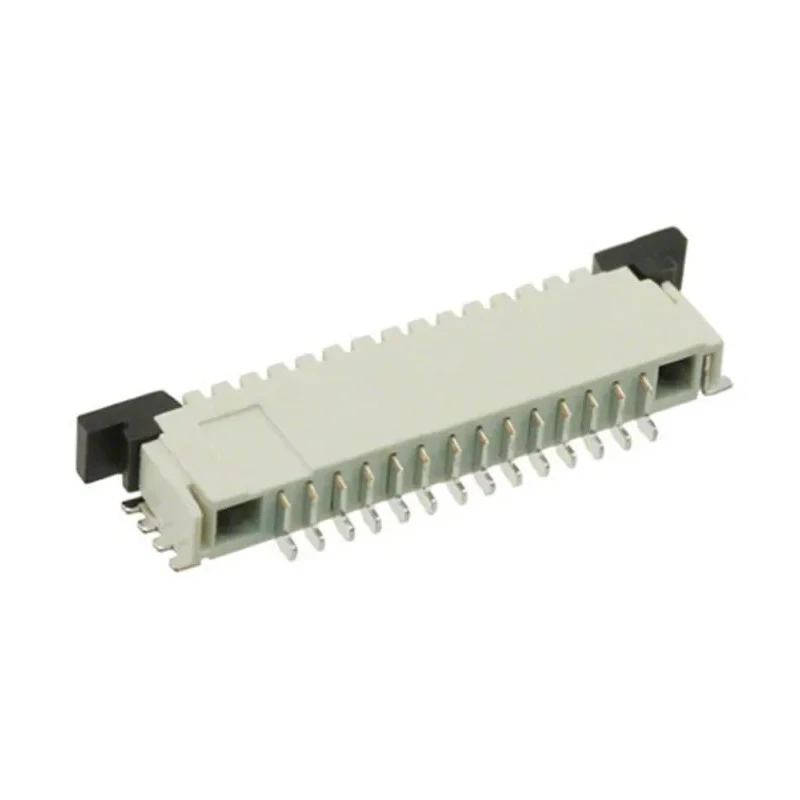

TE Connectivity FPC 1 mm Pitch 14 Way Right Angle Female FPC Connector Solder 1-84953-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 200V ac |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | FPC |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 14 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
Key Features
- Compact 1.0 mm pitch design suits space-constrained PCB layouts.
- Right angle female connector with top contact position facilitates easy board mounting.
- Solder termination with phosphor bronze contacts plated with tin over nickel ensures durable electrical connections.
- Incorporates a ZIF (Zero Insertion Force) slide lock actuator for secure cable insertion without damage.
- Supports up to 200V AC and 1A current for low power electronic applications.
- Operating temperature range from -40°C to 85°C suits varied industrial environments.
- Housing made from liquid crystal polymer delivers excellent mechanical stability.
- Includes solder tabs for enhanced retention on PCB during assembly.
Product Description
TE Connectivity 1-84953-4 FPC Connector is a 1 mm pitch, 14-way right angle female connector designed for reliable signal routing on compact electronic PCBs. Its solder termination and phosphor bronze contacts with tin over nickel plating provide durable, low resistance electrical connections suitable for industrial and commercial electronic applications.
The connector features a Zero Insertion Force (ZIF) slide lock actuator that secures flexible printed cables easily without damaging delicate contacts, enhancing connector life and mating cycles. Designed with a top contact position and right angle orientation, it facilitates efficient board space utilization and assembly.
Its housing is constructed from liquid crystal polymer, ensuring excellent mechanical strength and thermal stability within an operating range of -40°C to 85°C. Rated for 200 volts AC and 1 ampere current, this connector is appropriate for a wide variety of devices including handheld scanners, set-top boxes, business, industrial, and medical equipment.
Solder tabs enable additional mechanical retention on the PCB, ensuring secure mounting during vibration or handling. The single row of 14 contacts spaced at 1 mm pitch is ideally suited for applications where signal integrity and compact design are critical.
Compact 1.0 mm pitch design suits space-constrained PCB layouts. Right angle female connector with top contact position facilitates easy board mounting. Solder termination with phosphor bronze contacts plated with tin over nickel ensures durable electrical connections.
Incorporates a ZIF (Zero Insertion Force) slide lock actuator for secure cable insertion without damage. Supports up to 200V AC and 1A current for low power electronic applications. Operating temperature range from -40°C to 85°C suits varied industrial environments.
Housing made from liquid crystal polymer delivers excellent mechanical stability. Includes solder tabs for enhanced retention on PCB during assembly. Ideal for handheld scanners, set-top boxes, industrial, medical, and business equipment.
This TE Connectivity FPC connector is a reliable choice for electronics manufacturing requiring a compact, secure, and long-lasting connector solution. Explore more products in the FPC Connector category at EnvMart for complementary electronic components and accessories.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This connector supports up to 200V AC and 1A current, making it suitable for low power electronic applications.
The contacts in this model are designed with a pitch size of 1 mm, which is ideal for compact PCB layouts.
The housing is made from liquid crystal polymer, providing excellent mechanical stability and thermal performance.
The ZIF feature allows for secure cable insertion without damaging the delicate contacts, enhancing connector life and mating cycles.
It operates effectively within a temperature range of -40°C to 85°C, suitable for various industrial environments.
This connector features 14 contacts, arranged in a single row with a top contact position.
It uses solder termination, which ensures durable electrical connections.
The connector is designed with a right angle orientation, facilitating efficient board space utilization during assembly.
The contacts are made from phosphor bronze and are plated with tin over nickel for enhanced conductivity and durability.
Yes, it includes solder tabs that provide enhanced retention on the PCB during assembly, ensuring secure mounting.
This model is suitable for a variety of devices including handheld scanners, set-top boxes, and industrial or medical equipment.
The connector is manufactured in India.
