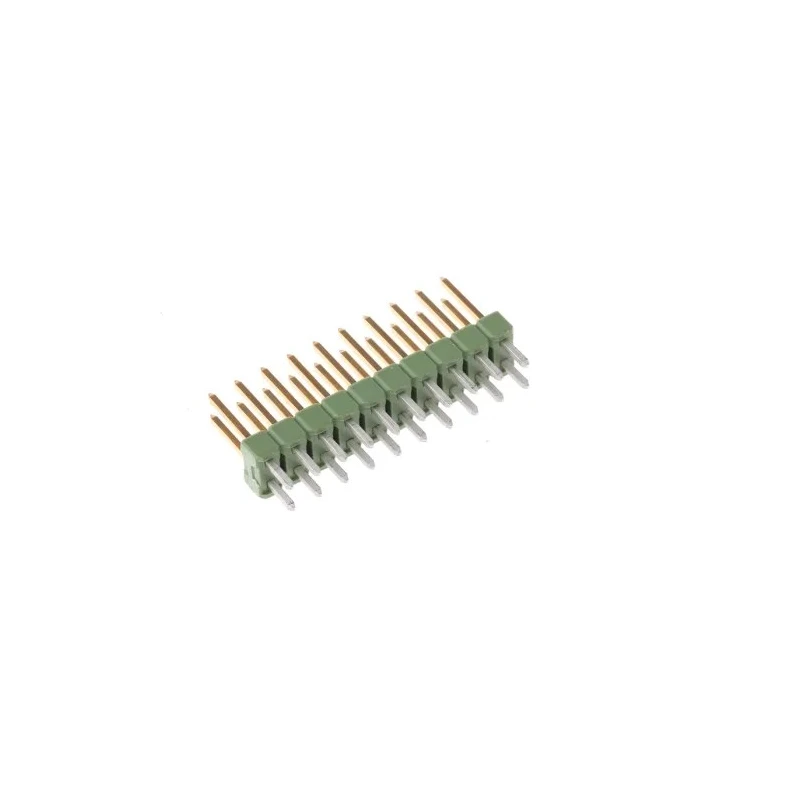

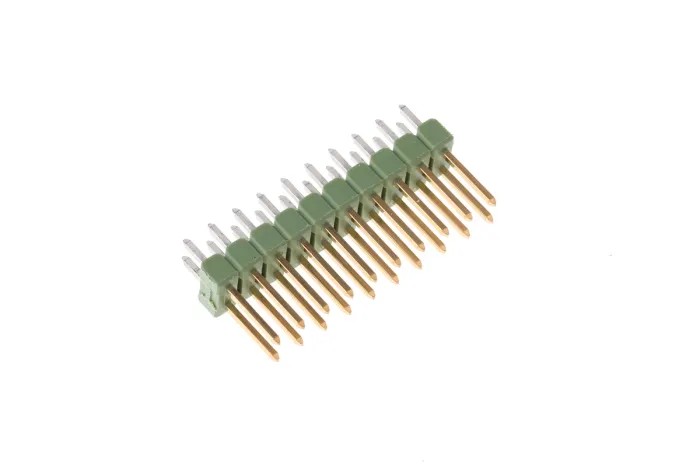

TE Connectivity AMPMODU MOD II Series 20 Contact 2.54 mm Pitch 2 Row Straight Through Hole Pin Header 1-826632-0

TE Connectivity 1-826632-0 AMPMODU MOD II Series pin header is a 20-contact, 2.54 mm pitch, 2-row, straight through hole connector that is unshrouded, providing versatile interconnect solutions for electronic circuits.

Constructed with a polybutylene terephthalate housing and gold-plated brass contacts, it offers durability and excellent conductivity.

Its through-hole mounting and straight orientation make it suitable for board-to-board and wire-to-board applications in diverse industries including automotive controls, industrial test equipment, telecommunications systems, medical instruments, and storage equipment.

Rated for operation between -65°C and 105°C with a voltage of up to 750 V and a current of 3 A, it ensures robust performance under demanding conditions.

The header features a breakaway design enabling users to easily customize the number of pins to meet specific design requirements, increasing installation efficiency and reducing labor costs.

This pin header utilizes a 2.54 mm centerline pitch suitable for various PCB mounting needs. It features 20 gold-plated brass contacts arranged in two rows to ensure reliable connectivity. The housing material is polybutylene terephthalate offering durability and high temperature resistance.

Designed for through-hole mounting with a straight orientation, facilitating board-to-board and wire-to-board connections. Operates reliably between -65°C and 105°C with a voltage rating of 750 V and a current capacity of 3 A.

Termination type is solder, and the product includes male contact gender with tail pin length of 3.2 mm and mating pin length of 6.7 mm. Flexible breakaway design allows resizing to fit specific application requirements efficiently.

Ideal for industrial, automotive, telecommunications, and medical instrument applications. This unshrouded pin header is economical and time saving during installation.

This component is part of the AMPMODU Interconnect System, a proven and compact design widely used in automation and control applications needing reliable and economical signal standards.
