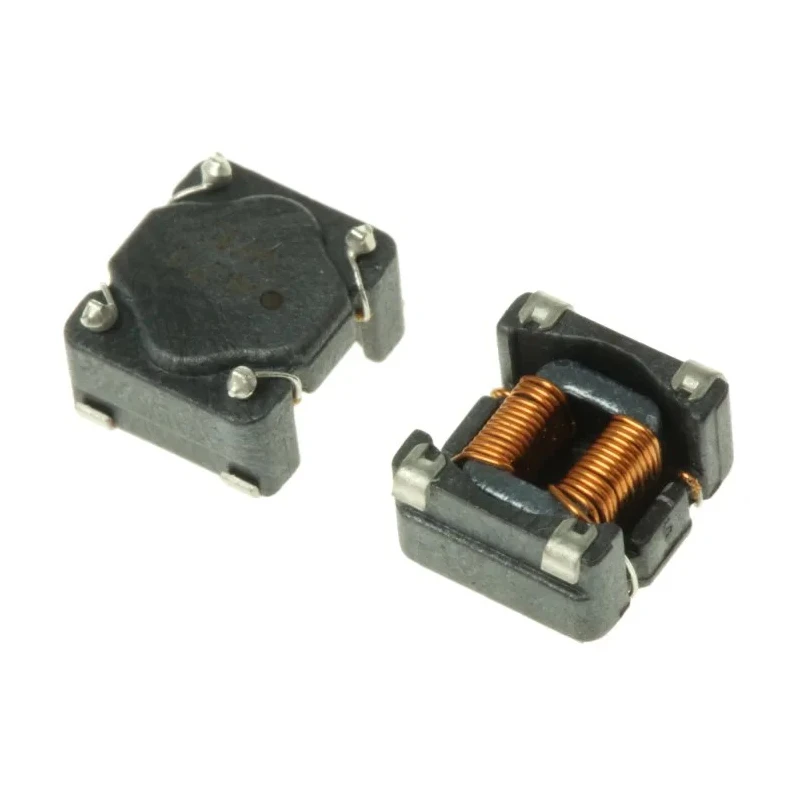

Wurth Elektronik WE-SL5 Surface Mount Common Mode Line Filter with Ferrite Core 470 μH ±40% 1.6 A 10mm Length 744272471

Wurth Elektronik 744272471 Surface Mount Common Mode Line Filter is a reliable component designed for noise suppression on data and power lines in various electronic applications. This filter features a ferrite core and a sectional winding construction to provide an inductance of 470 μH with a tolerance of ±40%, supporting a maximum DC current of 1.6 A. Its surface mount termination style facilitates automated PCB assembly processes.

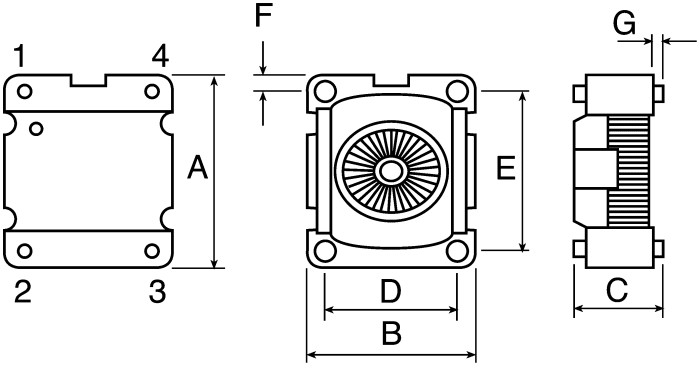

With a compact size measuring 10mm in length, 6.5mm in height, and 8.7mm in depth, this filter fits efficiently into dense electronic circuits. It operates over a wide temperature range from -40°C up to 125°C and complies with the AEC-Q200 automotive standard, making it suitable for automotive and harsh environment applications.

The maximum DC resistance is low at 65 milliohms, reducing power loss and enhancing signal integrity. Its maximum self resonant frequency is 100 kHz, ensuring effective filtering at relevant frequencies. The filter supports interfaces such as USB, Firewire, and various data and power lines typical in industrial and consumer electronics.

Packaging is in tape and reel format, compatible with standard pick-and-place assembly equipment, improving production efficiency. The product is RoHS compliant, ensuring environmental safety by restricting hazardous substances.

Typical use cases include noise filtering in automotive electronics, data communication lines, power supply lines, and other industrial electronic systems requiring reliable EMI suppression. This surface mount common mode choke from Wurth Elektronik contributes to improved electronic system performance and compliance with electromagnetic standards.

Surface mount design for easy PCB integration. Ferrite core material ensures effective noise suppression. Meets AEC-Q200 automotive standard for quality and reliability. Operates reliably from -40°C to 125°C temperature range.

Compact dimensions: 10mm length, 6.5mm height, and 8.7mm depth. Low maximum DC resistance of 65mΩ enhances performance. Supports interfaces like USB, Firewire, data, and power lines. Packaging in tape and reel format suitable for automated assembly.

Compliant with RoHS environmental standards. Explore the wide range of Wurth Elektronik electronic components at EnvMart for advanced industrial, automotive, and electronic design applications.
