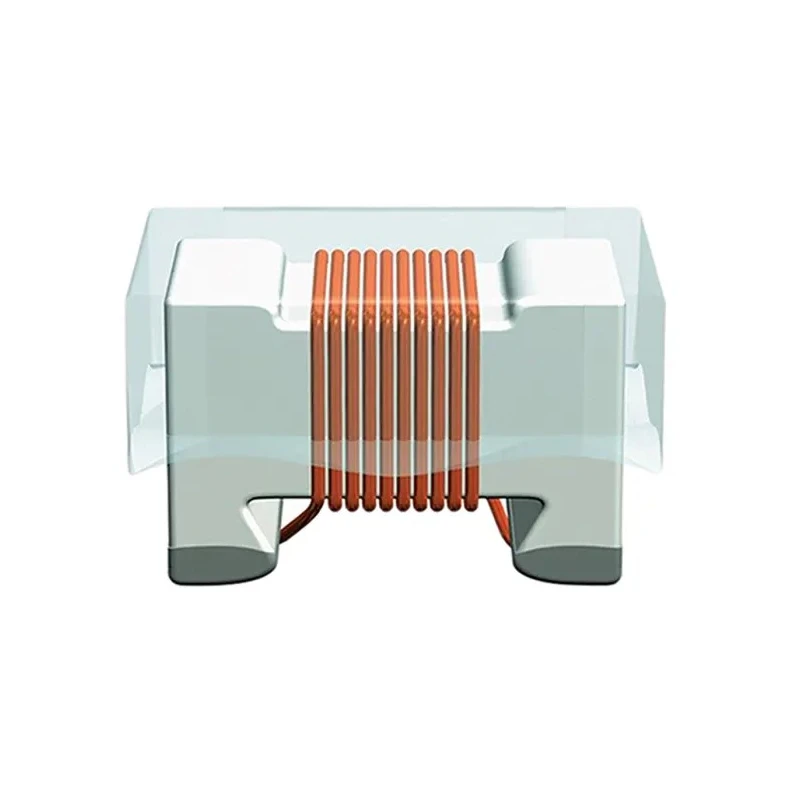

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 220 nH ±5% 320 mA Idc Q:45 B82498F3221J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F3221J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 220nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 320mA |
| Pin Count | 2 |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 950MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor has a compact 0805 package with dimensions 2.3 x 1.7 x 1.45 mm.
- It utilizes a ceramic core and wirewound construction for high quality and reliability.
- Maximum DC resistance is 700 mΩ ensuring efficient performance.
- Operates over a wide temperature range from -55°C to 125°C.
- Compliant with RoHS and automotive AEC-Q200 standards.
- Maximum self-resonant frequency reaches up to 950 MHz, ideal for high-frequency applications.
- Termination style is solder, suitable for surface mount assembly.
- Packaging is Tape & Reel for automated pick-and-place processes.
Product Description
TDK B82498F3221J000 is an 0805 unshielded wirewound surface mount inductor designed with a ceramic core, offering an inductance of 220 nH ±5% and a maximum DC current rating of 320 mA. This component is ideal for applications requiring high quality factor and high self-resonant frequency.
The inductor features a compact package with dimensions 2.3 x 1.7 x 1.45 mm, making it suitable for space-constrained industrial and electronic designs. Its wirewound construction combined with a ceramic core ensures excellent electrical performance and stability across a wide temperature range from -55°C to 125°C.
This product complies with RoHS directives and the automotive AEC-Q200 standard, establishing it as a reliable choice for automotive and industrial environments. Its high maximum self-resonant frequency of 950 MHz supports high-frequency circuit applications like RF modules, power supplies, and filtering circuits.
The termination style is solder, designed for seamless surface mount technology (SMT) assembly. Delivered in Tape & Reel packaging, it supports efficient automated manufacturing processes.
Compact 0805 package size with precise dimensions. High-quality ceramic core combined with wirewound construction. Wide operating temperature range of -55°C to 125°C. Compliant to RoHS and automotive AEC-Q200. High Q factor and self-resonant frequency for demanding electronic applications.
Solder termination style for surface mount assembly. Tape & Reel packaging suitable for automated production.
This surface mount inductor is suitable for industrial, automotive, telecommunications, and consumer electronic applications. Choose TDK SIMID series for dependable and precise inductive components. Explore more Surface Mount Inductors and similar electronic components on EnvMart for diverse industrial uses.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 220 nH ±5%.
The maximum DC current rating for this unit is 320 mA.
The dimensions of this inductor are 2.3 x 1.7 x 1.45 mm.
The maximum self-resonant frequency reaches up to 950 MHz, making it suitable for high-frequency applications.
It operates over a wide temperature range from -55°C to 125°C.
The termination style is solder, designed for surface mount assembly.
It is delivered in Tape & Reel packaging, suitable for automated pick-and-place processes.
This product is compliant with RoHS and automotive AEC-Q200 standards.
The maximum DC resistance is 700 mΩ, ensuring efficient performance.
The minimum quality factor for this model is 45.
The core material is ceramic, which contributes to its high performance and reliability.
This surface mount inductor is suitable for industrial, automotive, telecommunications, and consumer electronic applications.
