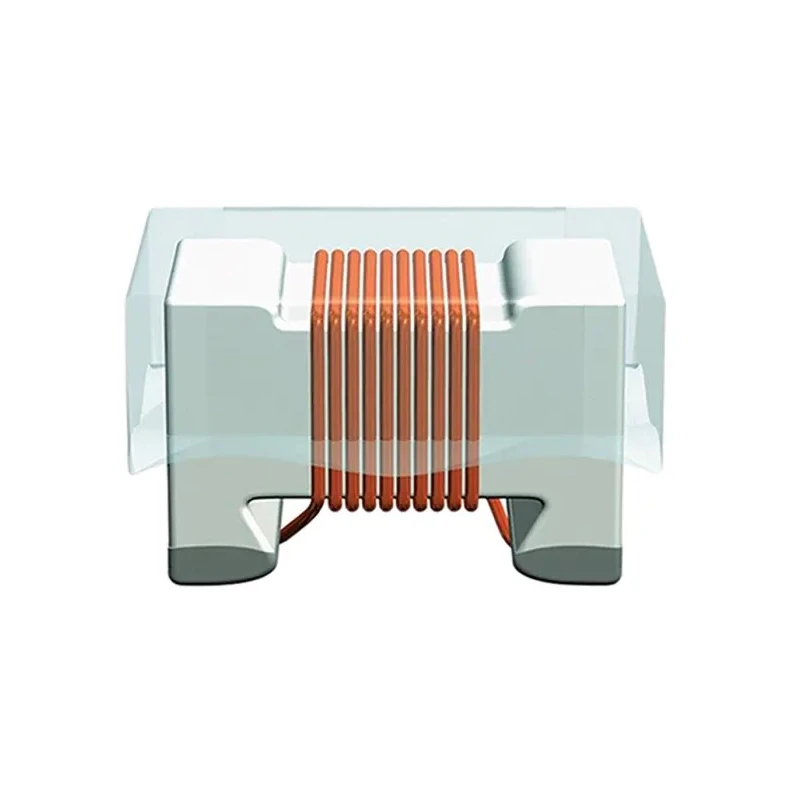

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 220nH ±5% 320mA Idc Q:45 B82498F3221J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F3221J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 220nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 320mA |
| Pin Count | 2 |
| Maximum DC Resistance | 700mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 950MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| 220nH SIMID SMT Inductor 0805-FBrand | Epcos |
Key Features
- The inductor features a ceramic core and wirewound construction for high performance.
- It supports a maximum DC current of 320mA and has a quality factor of at least 45.
- Package case size is 0805 with dimensions of 2.3mm length, 1.7mm depth, and 1.4mm height.
- Operating temperature range extends from -55°C to +125°C, meeting AEC-Q200 automotive standards.
- Termination style is solder with no magnetic shielding applied.
- Maximum DC resistance is 700mΩ ensuring low power loss during operation.
- Maximum self resonant frequency is 950MHz suitable for high frequency applications.
- This component is RoHS compliant for environmental safety.
Product Description
TDK B82498F3221J000 is a SIMID series 0805 unshielded wirewound surface mount inductor with a ceramic core and epoxy moulded flat top designed for vacuum pickup applications. It offers an inductance value of 220nH with a tolerance of ±5%, supporting a maximum DC current of 320mA and a minimum quality factor of 45.
The inductor's compact dimensions are 2.3 x 1.7 x 1.45mm (L x W x H), making it suitable for space-constrained electronic designs. It operates reliably within a temperature range from -55°C to +125°C and complies with the AEC-Q200 standard for automotive applications.
Its wirewound construction on a ceramic core ensures stable inductance and low losses, while the solder termination style facilitates easy PCB mounting. This component has a maximum DC resistance of 700mΩ and maximum self resonant frequency at 950MHz allowing efficient performance in high frequency circuits.
This inductor is RoHS compliant, confirming its adherence to environmental standards. Applications include power supplies, filters, and signal processing in industrial, automotive, and consumer electronics sectors.
The inductor is epoxy moulded with a flat top for vacuum pickup handling during assembly. It is packaged in tape and reel format aiding automated manufacturing processes. Pin count is 2 with no magnetic shielding provided.
Its high Q factor and resonant frequency suit advanced electronic designs requiring precision inductance. This device increases circuitry reliability with robust temperature tolerance and low resistance. Explore more Surface Mount Inductors and related electronic components on EnvMart to support various industrial and automotive electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features an inductance value of 220nH with a tolerance of ±5%.
It supports a maximum DC current of 320mA.
The dimensions of this inductor are 2.3mm in length, 1.7mm in depth, and 1.4mm in height.
It operates reliably within a temperature range from -55°C to +125°C.
The maximum self-resonant frequency is 950MHz, making it suitable for high frequency applications.
The termination style is solder, facilitating easy PCB mounting.
It has a maximum DC resistance of 700mΩ, ensuring low power loss during operation.
This inductor complies with the AEC-Q200 automotive standard.
It is packaged in tape and reel format, which aids in automated manufacturing processes.
It has a minimum quality factor of 45, suitable for advanced electronic designs.
The inductor features a ceramic core, which contributes to its performance.
The country of origin for this inductor is India.
