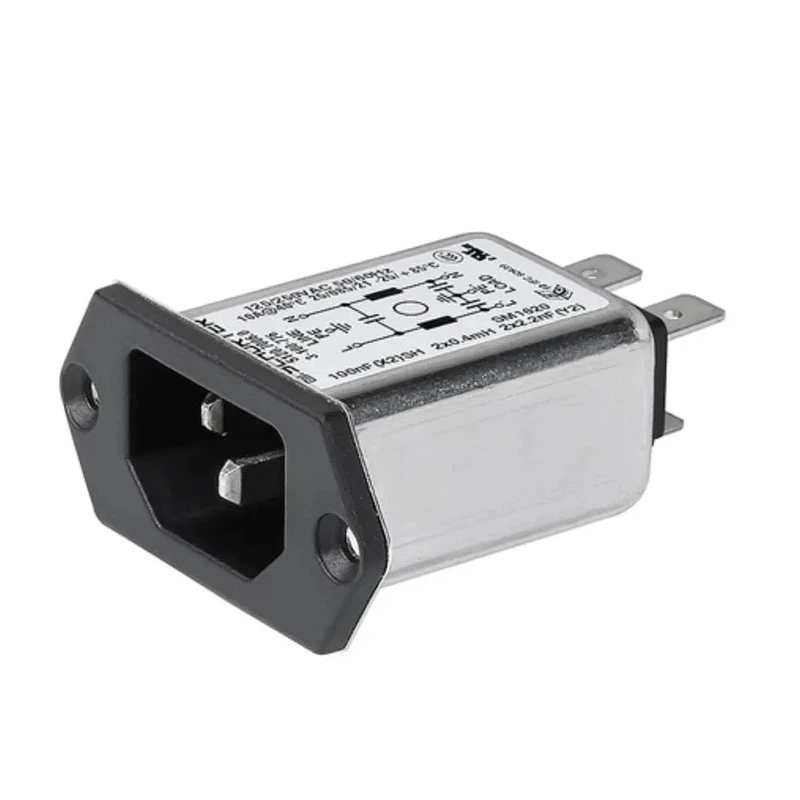

Schurter IEC Connector 5120 Series Quick Connect 1A 250V C18, C14 3-101-140

Free Delivery in India | Lowest Global Shipping Charges

Schurter IEC Connector 5120 Series Quick Connect 1A 250V C18, C14 3-101-140

Name: Schurter IEC Connector 5120 Series Quick Connect 1A 250V C18, C14 3-101-140
Brand: Schurter
SKU: 201913
Price: 13.83 USD
Availability: InStock



Category IEC Connector Brand Schurter Condition New

Specifications

Country of Origin	India
Voltage	250V
Brand	Schurter
Current	1A
Height	24.6mm
Filter Type	Line
Depth	42.5mm
Operating Frequency	60Hz
Series	5120
Termination Type	Quick Connect
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Fuse Size	5 x 20 mm
IEC Connector Type	C18, C14
UL File Number	E72928
VDE Certificate Number	40016382

Key Features

Part of the 5120 Series with a compact plastic flange design.
Accepts 5 x 20 mm fuse size (fuse not included).
Suitable for mounting front, rear, or side in multiple configurations.
Compatible with IEC connector types C18 and C14.
Operating temperature ranges from -25°C to 85°C ensuring broad application use.
Designed for standard and medical applications requiring line filtering.
Optimized shielding due to a closed metal filter case.
Ideal for compact, high density switching power supplies with high transient loads.

Product Description

Schurter 3-101-140 is an IEC Connector from the 5120 Series, designed to operate with a current rating of 1A and a voltage rating of 250V, featuring a quick connect termination type. This compact IEC connector includes a modern plastic flange that eliminates the bevel around the inlet providing an aesthetic flat design. The connector supports multiple mounting options including front, rear, and side mounting variations to suit various panel and chassis applications.

The product accepts standard 5 x 20 mm fuses, though the fuse drawer is not included and must be ordered separately. Designed with a minimum operating temperature of -25°C and a maximum of 85°C, it ensures reliable function in diverse environmental conditions. The filter type is line, providing effective EMI suppression which is critical in sensitive electronics environments.

These IEC connectors are ideal for use in compact, high density switching power supplies which are subject to high transient loads. The connector's optimal shielding from its closed metal case also supports use in medical equipment applications compliant with IEC 60601-1 and IEC 60601-1-11 standards, making it a reliable choice for both industrial and medical equipment uses.

Schurter 5120 Series connectors are known for their robust construction and performance, featuring compliance with regulatory approvals including VDE Certificate Number 40016382, UL File Number E72928, and CCC File Number 2010010204438235.

Part of the 5120 Series with a compact plastic flange design. Accepts 5 x 20 mm fuse size (fuse not included). Suitable for front, rear, or side mounting options. IEC connector types supported: C18, C14. Operating temperature range from -25°C to 85°C.

Provides line filtering with high shielding effectiveness. Designed for industrial and medical applications. Meets multiple safety and approval standards. Quick connect termination for ease of installation. Compact design suitable for high density applications.

This Schurter IEC Connector is a reliable component suitable for electronic, industrial, medical, and power equipment applications requiring secure and compliant power connections. Explore more IEC Connectors and power components at EnvMart to find complementary parts and accessories.
