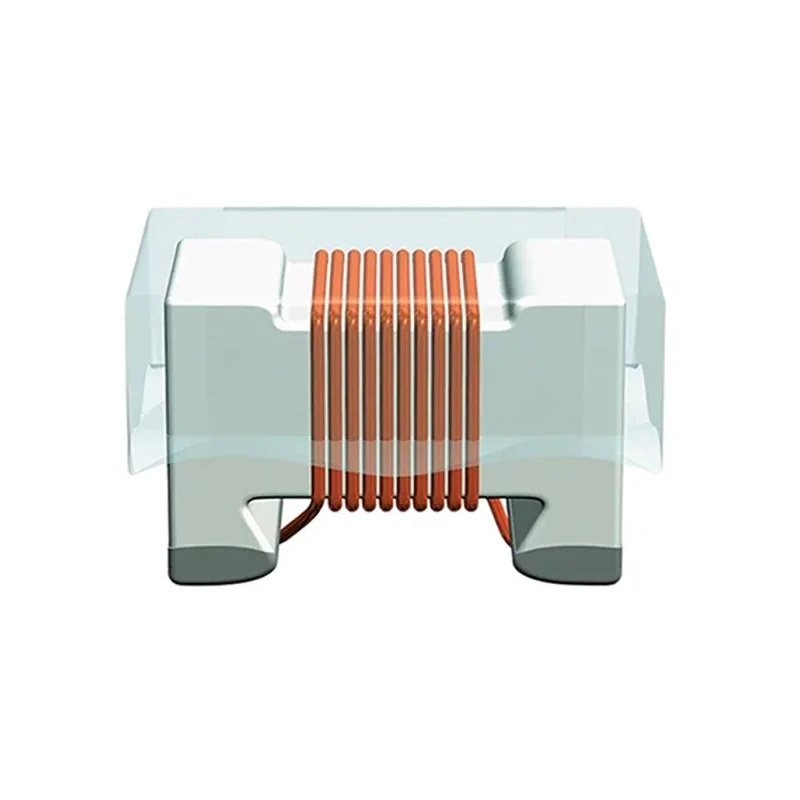

TDK SIMID 0805 Wirewound Surface Mount Inductor Ceramic Core 680 nH ±5% 190 mA Idc Q:23 B82498F3681J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F3681J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 680nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 190mA |
| Maximum DC Resistance | 1.7Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 300MHz |
| Minimum Quality Factor | 23 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| 680nH SIMID SMT Inductor 0805-FBrand | Epcos |
Key Features
- Wirewound construction provides high quality factor and stability.
- Ceramic core enhances magnetic properties and durability.
- Operating temperature range from -55°C to +125°C for wide application environments.
- Maximum DC resistance of 1.7 Ω minimizes power losses.
- Compliant with RoHS standards and AEC-Q200 automotive requirements.
- Surface mount termination style suitable for automated assembly.
- Epoxy moulded flat top design supports vacuum pickup during manufacturing.
- Maximum self-resonant frequency of 300 MHz ensures effective high-frequency performance.
Product Description
TDK B82498F3681J000 SIMID series wirewound surface mount inductor features a ceramic core with an inductance rating of 680 nanohenries and a tolerance of ±5%. This component supports a maximum DC current of 190 mA and offers a high quality factor of 23, making it suitable for precision electronic circuit applications.
The device comes in a 0805 package case with compact dimensions of 2.3 mm length, 1.7 mm depth, and 1.4 mm height. It is epoxy moulded with a flat top enabling reliable vacuum pickup in automated assembly processes. The inductor operates reliably in harsh conditions between -55°C and +125°C, conforming to industry-standard AEC-Q200 automotive certification and RoHS compliance.
This surface mount technology (SMT) component offers a maximum DC resistance of 1.7 ohms and a self-resonant frequency reaching 300 MHz, ideal for high-frequency applications in industrial, automotive, telecommunications, and consumer electronics. The tape and reel packaging facilitates efficient volume assembly in manufacturing environments.
Wirewound construction provides stable inductance. Ceramic core delivers high magnetic permeability. Compact 0805 size enables PCB space savings. Wide operating temperature range suits extreme conditions. Low DC resistance reduces power loss and heating.
AEC-Q200 and RoHS certifications ensure quality and compliance. Flat epoxy moulded top for vacuum pick and placement. High self-resonant frequency supports RF circuits. Packaging optimized for industrial assembly lines.
This component is essential for designers requiring reliable inductors in SMT form factor for applications ranging from signal filtering, impedance matching, to power management circuits. Browse the Electronics Components category at EnvMart for additional Surface Mount Inductors from leading brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 680 nanohenries (nH) with a tolerance of ±5%.
This unit supports a maximum DC current of 190 mA.
It operates reliably within a temperature range of -55°C to +125°C.
The maximum DC resistance is 1.7 ohms, which helps minimize power losses.
The maximum self-resonant frequency is 300 MHz, making it suitable for high-frequency applications.
The dimensions are 2.3 mm in length, 1.7 mm in depth, and 1.4 mm in height.
It features a ceramic core, which enhances its magnetic properties and stability.
The termination style is surface mount, suitable for automated assembly processes.
It is compliant with RoHS standards and meets AEC-Q200 automotive requirements.
It is packaged in tape and reel format, facilitating efficient volume assembly in manufacturing environments.
This model is suitable for applications such as signal filtering, impedance matching, and power management circuits.
The minimum quality factor is 23, indicating a high level of performance in electronic circuits.
