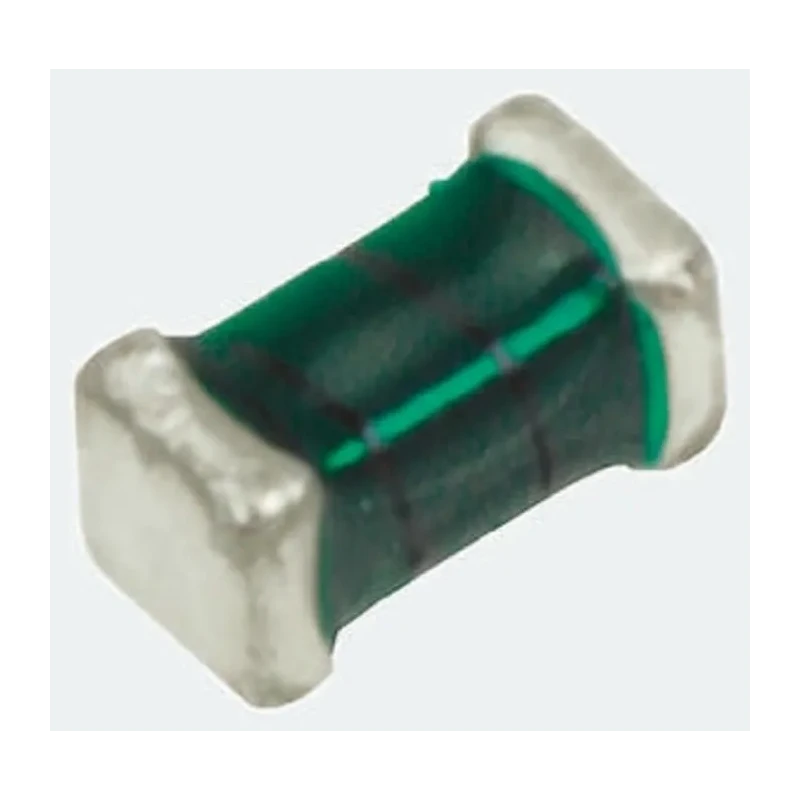

TDK SIMID 0603 Wirewound Surface Mount Inductor Copper Plated Ceramic Core 68 nH ±5% 230 mA Idc Q14 B82496C3680J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3680J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 68nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 230mA |
| Maximum DC Resistance | 1.3Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 2GHz |
| Minimum Quality Factor | 14 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0603 package size with dimensions 1.6 x 0.8 x 0.8 mm.
- High mechanical stability and high resonance frequency for reliable operation.
- Operating temperature range from -55°C to 150°C.
- Rated maximum DC resistance of 1.3 ohms ensuring low power loss.
- Inductance tolerance is ±5% for precise circuit performance.
- Minimum quality factor of 14 optimizes frequency response.
- Compliant with RoHS and automotive standard AEC-Q200.
- Termination style is surface mount for automated PCB assembly.
Product Description
TDK B82496C3680J000 SIMID series wirewound Surface Mount Inductor features a copper plated ceramic core with a compact 0603 package, measuring 1.6 mm length, 0.8 mm width, and 0.8 mm height. This inductor provides an inductance of 68 nH with ±5% tolerance, supporting a maximum DC current of 230 mA and a maximum DC resistance of 1.3 Ω.
Designed for high resonance frequency applications, it achieves a maximum self resonant frequency of 2 GHz and a minimum quality factor of 14, balancing electrical performance with mechanical reliability. Its operating temperature range from -55°C to 150°C makes it suitable for demanding electronic environments, including automotive electronics, verified by the AEC-Q200 standard. The device is RoHS compliant, ensuring environmental safety.
This surface mount device, with a termination style optimized for automated PCB assembly, is supplied on tape and reel packaging, facilitating high-volume manufacturing efficiency. Its robust construction and compact dimensions make it ideal for applications in power management, RF circuits, and signal conditioning in industrial, automotive, and consumer electronics sectors.
Compact 0603 size enables space-saving circuit board designs. Copper plated ceramic core enhances thermal stability and durability. High mechanical stability suitable for vibration and shock environments. Compliance with automotive and environmental standards ensures quality and safety.
Ideal for integration in high-frequency applications. Tape and reel packaging supports automated pick-and-place assembly. Explore more from TDK inductors category on EnvMart to find compatible and complementary components for your electronic designs and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 68 nH with an inductance tolerance of ±5%.
The dimensions of this inductor are 1.6 mm in length, 0.8 mm in width, and 0.8 mm in height, corresponding to the 0603 package size.
It supports a maximum DC current of 230 mA, ensuring efficient performance in various applications.
The maximum self-resonant frequency is 2 GHz, making it suitable for high-frequency applications.
It operates within a temperature range of -55°C to 150°C, allowing it to function in demanding environments.
This unit features a surface mount termination style, optimized for automated PCB assembly.
The maximum DC resistance is 1.3 Ω, which helps to minimize power loss during operation.
It complies with the automotive standard AEC-Q200, ensuring it meets specific quality requirements for automotive applications.
The minimum quality factor is 14, which optimizes its frequency response.
It features a copper plated ceramic core, enhancing thermal stability and mechanical reliability.
It is supplied on tape and reel packaging, facilitating efficient high-volume manufacturing and automated pick-and-place assembly.
This model is suitable for applications in power management, RF circuits, and signal conditioning in industrial, automotive, and consumer electronics sectors.
