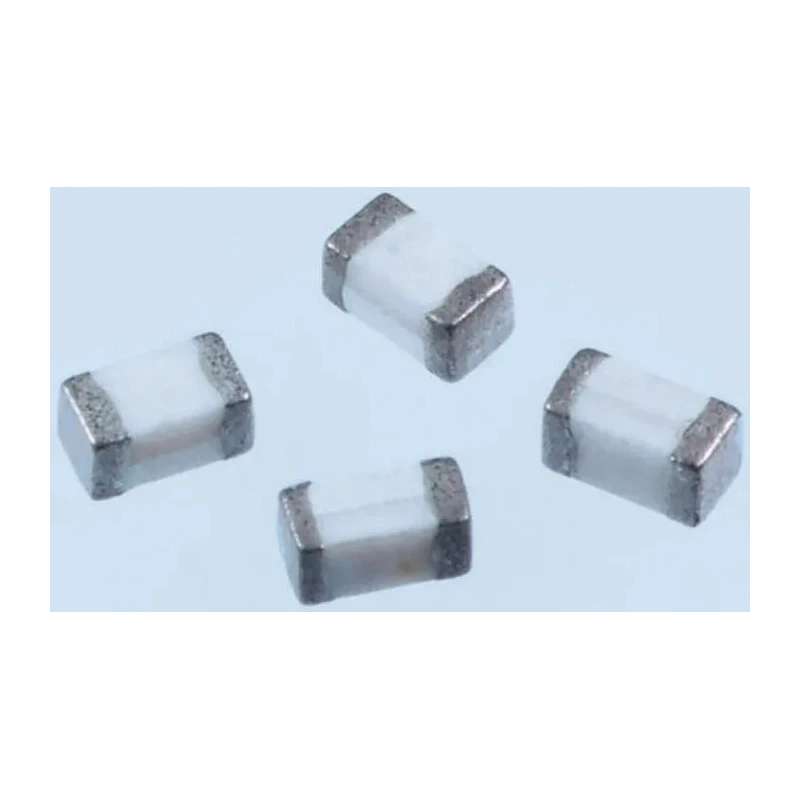

Wurth Elektronik WE-MK Series 0603 Unshielded Multilayer Ceramic Surface Mount Inductor 10 nH ±5 % 600mA 3.7GHz 74478611
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Wurth Elektronik |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | 74478611 |
| Depth | 0.8mm |
| Packaging | Tape |
| Series | WE-MK |
| Maximum Operating Temperature | 120°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ceramic |
| Inductance | 10nH |
| Standards/Approvals | RoHS, REACH |
| Package/Case | 0603 |
| Maximum DC Current | 600mA |
| Maximum DC Resistance | 450mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 3.7GHz |
| Minimum Quality Factor | 8 |
| Inductor Construction | Multilayer |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact 0603 package size suitable for surface mounting.
- Ceramic core construction provides high stability and reliability.
- Rated for maximum DC current of 600mA.
- Maximum self-resonant frequency of 3.7GHz supports high frequency applications.
- Operating temperature range from -40°C to 120°C.
- Multilayer construction enhances inductance and quality factor.
- Inductance tolerance of ±5 % ensures precise performance.
- Automotive standard AEC-Q200 compliant for enhanced reliability.
Product Description
Wurth Elektronik 74478611 WE-MK Series 0603 multilayer ceramic surface mount inductor offers a robust and stable inductance of 10 nH with a tolerance of ±5 %. It features a ceramic core and multilayer construction, ensuring high reliability and performance in demanding electronic circuits.

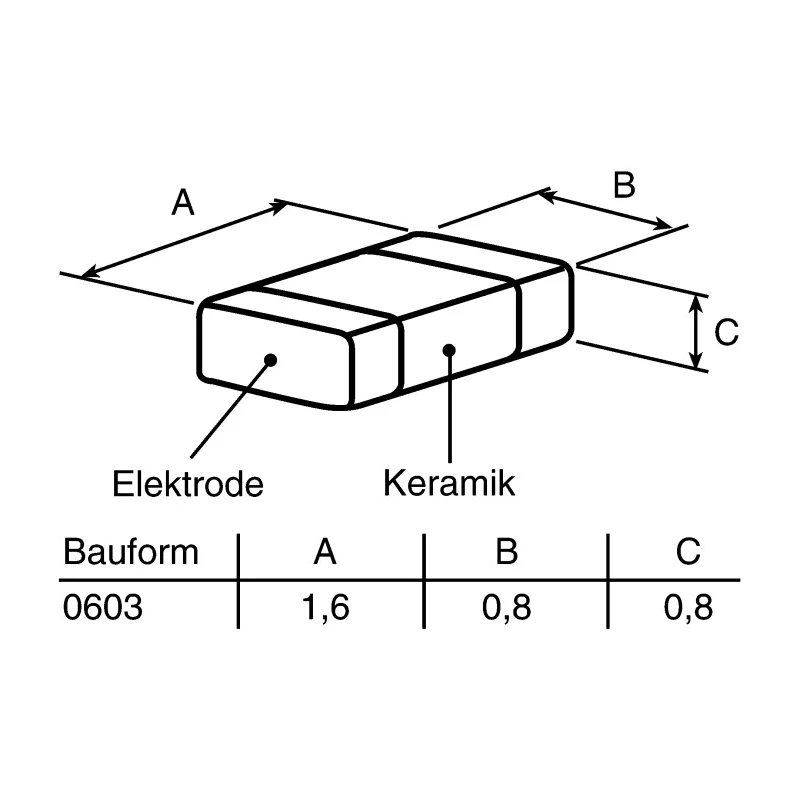

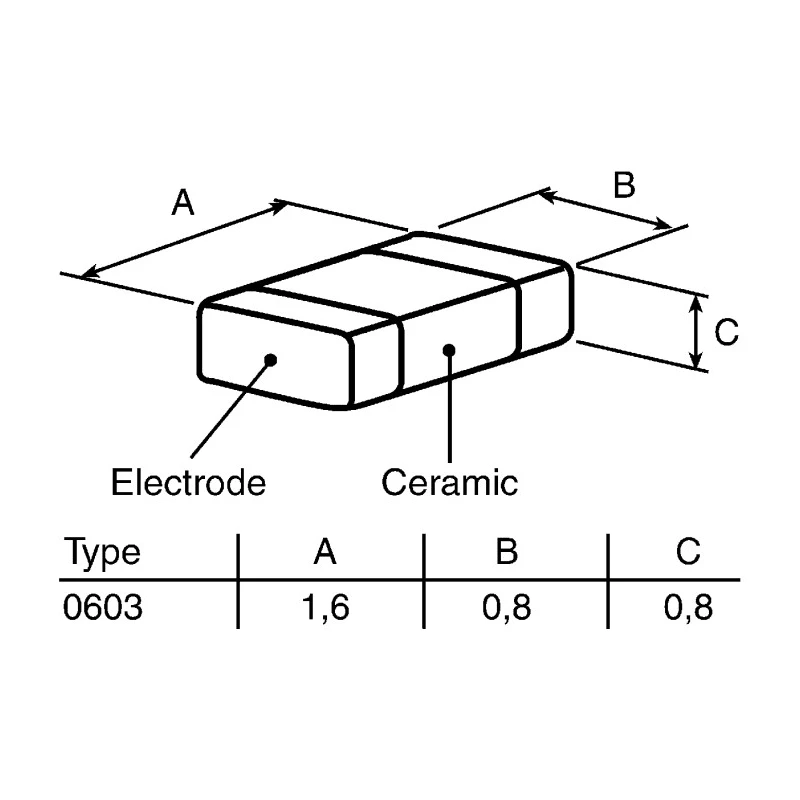

This inductor is designed in a compact 0603 package with dimensions of 1.6mm length, 0.8mm height, and 0.8mm depth, making it ideal for space-constrained designs in modern electronics.
The series complies with automotive standard AEC-Q200 and has no shielding, facilitating effective integration into various applications.
It supports a maximum DC current of 600mA and offers a maximum self-resonant frequency of 3.7GHz, suitable for high-frequency circuits such as tuners, transponders, HF amplifiers, pagers, oscillators, laptops, PCMCIA cards, Bluetooth, wireless LAN, and filter circuits.
The product operates reliably within a temperature range of -40°C to 120°C and has a maximum DC resistance of 450mΩ, providing efficient performance and minimal losses. Compact 0603 package size suitable for surface mounting.
Ceramic core for enhanced durability and stability. Inductance of 10 nH with ±5 % tolerance for precise electronic filtering. Maximum DC current rating of 600mA for diverse application demands. Maximum self-resonant frequency at 3.7GHz supports high-frequency operations.
Conforms to AEC-Q200 automotive standards, ensuring high reliability. Multilayer design for improved inductance and quality factor. Wide operating temperature range from -40°C to 120°C. Environmentally compliant with RoHS and REACH standards.
This surface mount inductor is widely used in industrial, automotive, commercial electronics manufacturing, and telecommunications applications requiring compact size and high-frequency functionality.
Explore more in the Surface Mount Inductors category at EnvMart for comparable components and related electronic parts.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 nH with a tolerance of ±5 %.
It is rated for a maximum DC current of 600mA.
The maximum self-resonant frequency is 3.7GHz, making it suitable for high-frequency applications.
This unit has dimensions of 1.6mm in length, 0.8mm in height, and 0.8mm in depth.
The inductor operates reliably within a temperature range of -40°C to 120°C.
It conforms to automotive standard AEC-Q200 and is also compliant with RoHS and REACH standards.
It features a multilayer construction with a ceramic core, enhancing its stability and performance.
The maximum DC resistance is 450mΩ, providing efficient performance and minimal losses.
This model uses a surface mount termination style, suitable for compact designs.
The minimum quality factor is 8, indicating good performance in filtering applications.
It is packaged in tape, facilitating easy handling and placement during assembly.
