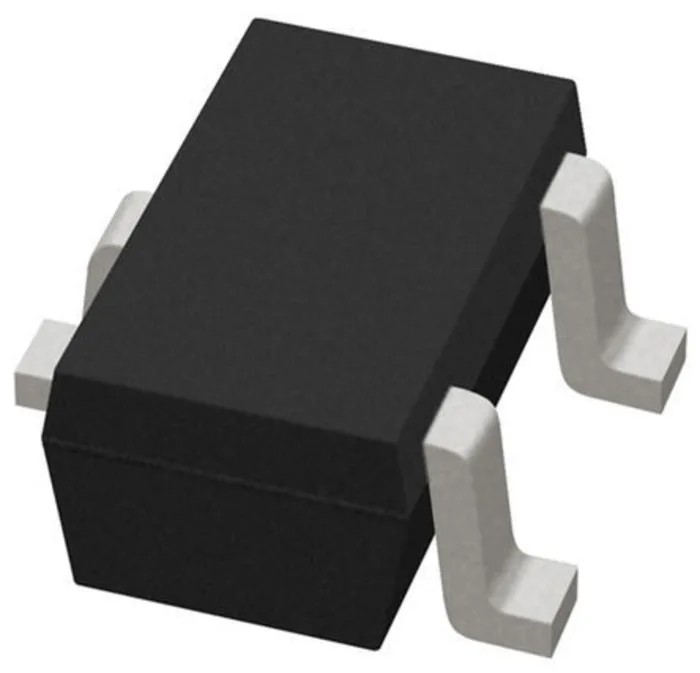

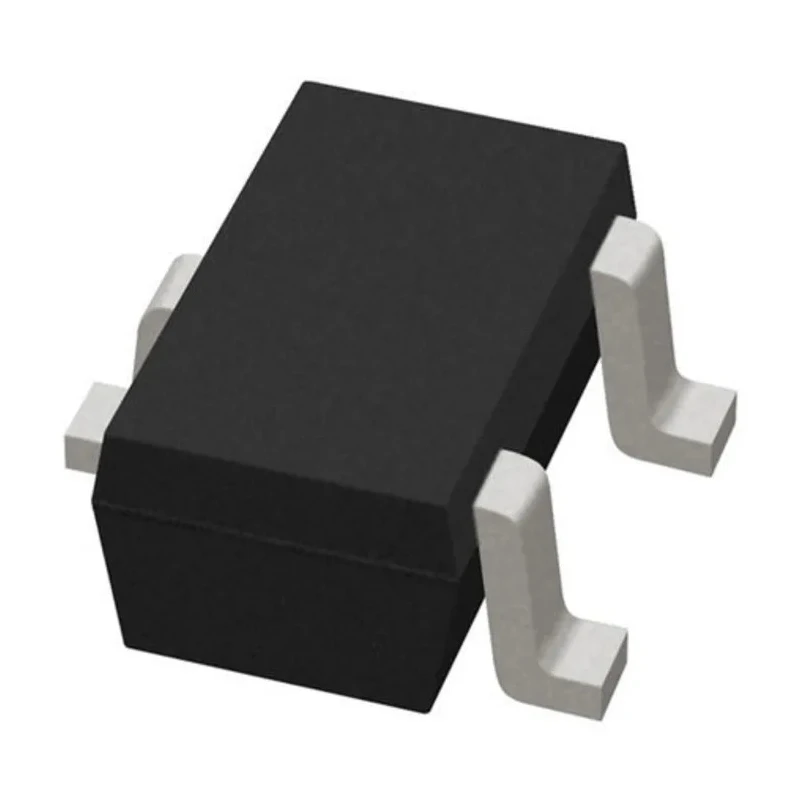

Nexperia 4-Element Bi-Directional ESD Protection Diode 150W 3-Pin SOT-323 PESD1CAN-UX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1.1mm |
| Length | 2.2mm |
| Model | PESD1CAN-UX |
| Width | 1.35mm |
| Mount Type | Surface |
| Series | PESD |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-323 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Number of Elements per Chip | 4 |
| Clamping Voltage VC | 50V |
| Automotive Standard | AEC-Q101 |
| Diode Configuration | Common Cathode |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 25.4V |
| Maximum Reverse Stand-off Voltage Vwm | 24V |
| Peak Pulse Power Dissipation Pppm | 150W |
| Test Current It | 3A |
| Maximum Peak Pulse Current Ippm | 3A |
| Maximum Reverse Leakage Current | 50nA |
Key Features
- Designed for bi-directional Electrostatic Discharge (ESD) protection.
- Common cathode diode configuration with 4 elements per chip.
- Supports a peak pulse power dissipation of 150W.
- Compact surface mount SOT-323 package measuring 2.2mm x 1.35mm x 1.1mm.
- Automotive grade compliant with AEC-Q101 standard.
- Operates reliably within -55°C to 150°C temperature range.
- Minimum breakdown voltage of 25.4V and maximum stand-off voltage of 24V.
- Maximum peak pulse current rating of 3A.
Product Description
Nexperia PESD1CAN-UX 4-Element Bi-Directional ESD Protection Diode delivers reliable transient voltage suppression with a peak pulse power dissipation of 150W in a small 3-pin SOT-323 surface-mount package. This device is engineered to protect sensitive automotive Controller Area Network (CAN) bus lines and electronic circuits against the damaging effects of electrostatic discharge (ESD) and other transient voltage events.
The diode features a common cathode configuration with four elements integrated on a single chip, allowing bi-directional ESD protection suitable for robust industrial and automotive environments. It complies with the automotive standard AEC-Q101, ensuring high reliability under demanding conditions.
With a minimum breakdown voltage of 25.4V and a maximum reverse stand-off voltage of 24V, this diode effectively clamps voltage spikes to a maximum of 50V, offering circuit protection without disruption. The device supports a maximum peak pulse current of 3A and maintains a low maximum reverse leakage current of 50nA, ensuring minimal power dissipation under normal operating conditions.
Designed for surface mounting, its compact footprint of 2.2mm length, 1.35mm width, and 1.1mm height enables use in space-constrained applications. The diode operates reliably over a wide temperature range of -55°C to 150°C, suitable for harsh automotive and industrial environments.
This bi-directional ESD protection diode is an essential component for safeguarding sensitive electronics in automotive, industrial manufacturing, and electronic assembly applications. It effectively protects communication lines, ensuring system integrity and longevity against transient voltage damage.
Designed for bi-directional Electrostatic Discharge (ESD) protection. Common cathode diode configuration with 4 elements per chip. Supports a peak pulse power dissipation of 150W. Compact surface mount SOT-323 package measuring 2.2mm x 1.35mm x 1.1mm.
Automotive grade compliant with AEC-Q101 standard. Operates reliably within -55°C to 150°C temperature range. Minimum breakdown voltage of 25.4V and maximum stand-off voltage of 24V. Maximum peak pulse current rating of 3A.
Low maximum reverse leakage current of 50nA. Protects automotive CAN bus lines from transient voltage spikes. Explore EnvMart for a wide range of Nexperia semiconductors and TVS diode solutions suited for industrial, automotive, and electronic applications.
Explore more products in our TVS Diodes category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a peak pulse power dissipation of 150W.
It operates reliably within a temperature range of -55°C to 150°C.
The diode comes in a compact surface mount SOT-323 package, measuring 2.2mm in length, 1.35mm in width, and 1.1mm in height.
The maximum reverse stand-off voltage is 24V.
The minimum breakdown voltage is 25.4V.
It has a maximum peak pulse current rating of 3A.
This unit features a common cathode diode configuration with four elements per chip.
Yes, it is compliant with the AEC-Q101 automotive standard.
The maximum reverse leakage current is 50nA.
It is designed for bi-directional ESD protection, particularly for automotive CAN bus lines and sensitive electronic circuits.
The clamping voltage is 50V.
This model has a pin count of 3.
