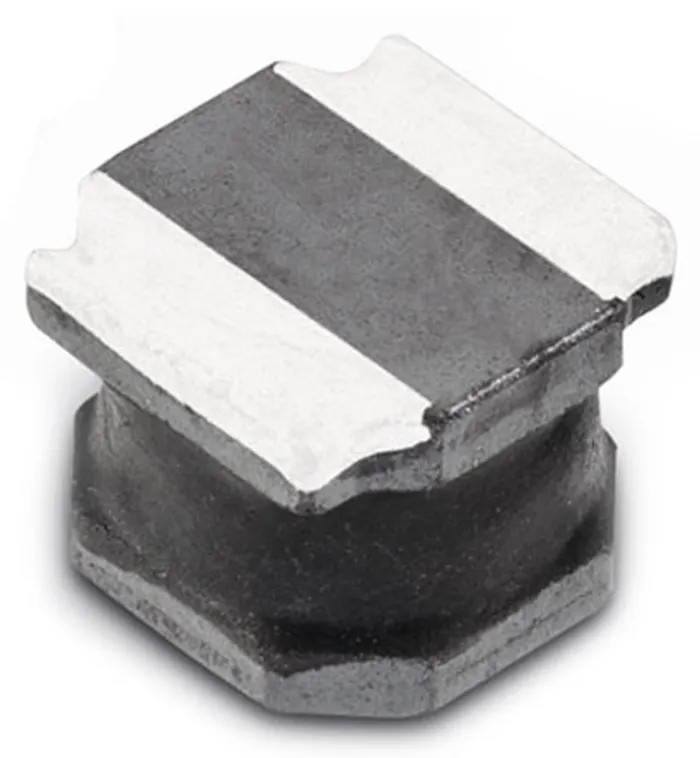

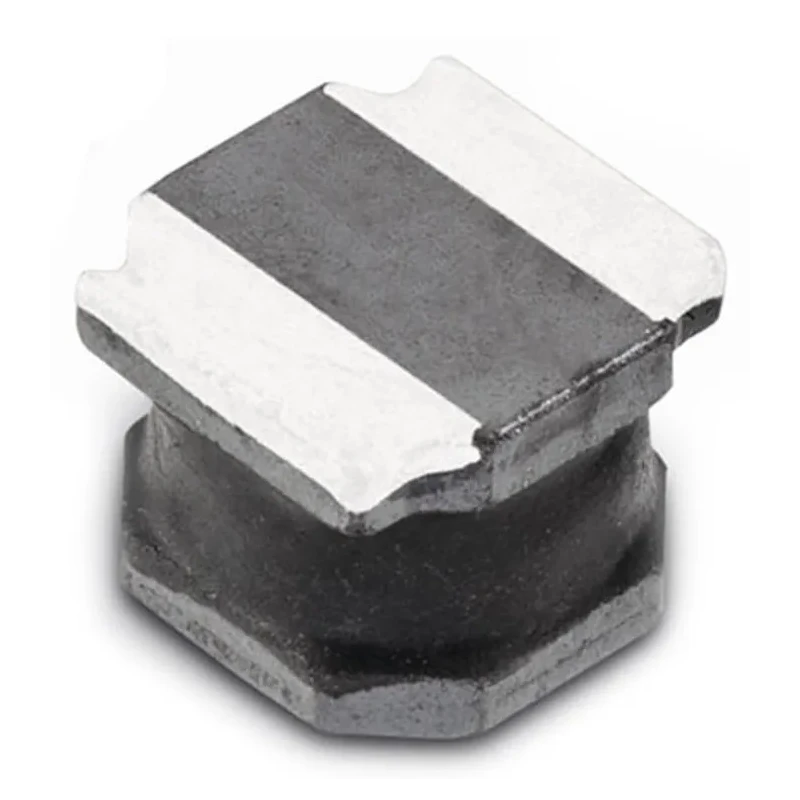

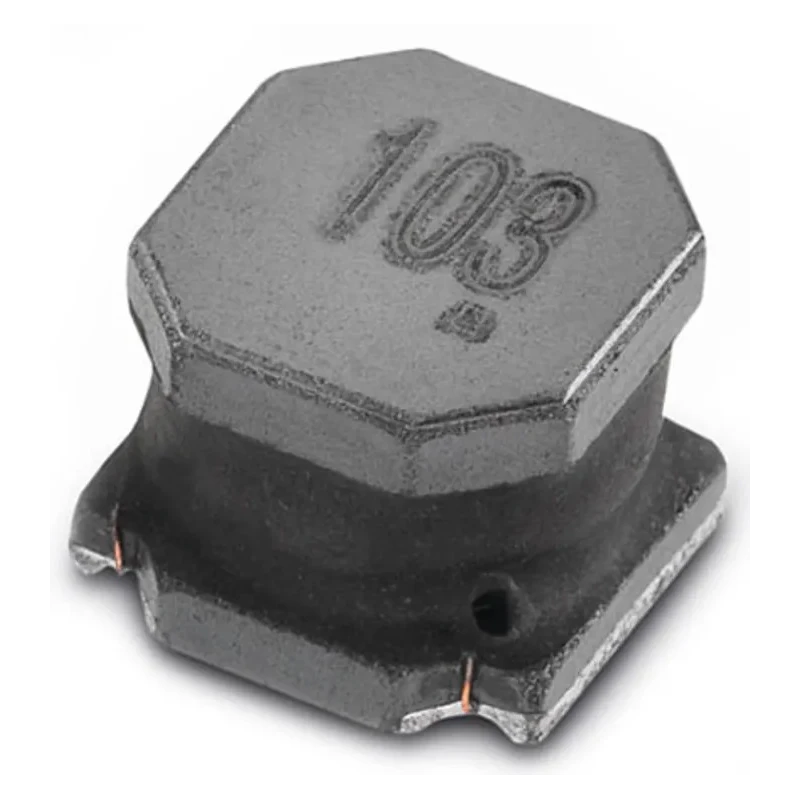

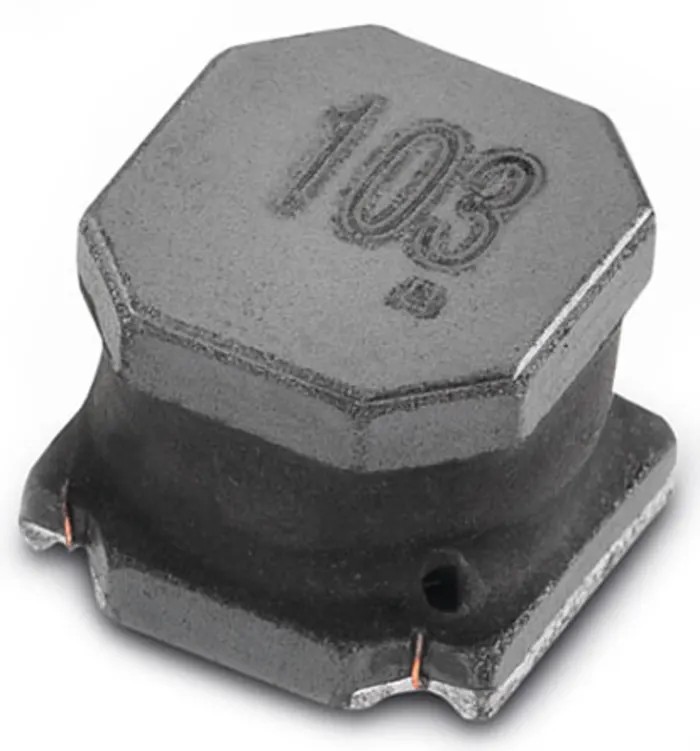

Wurth Elektronik WE-LQS 8065 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10mH ±20% 130mA Idc 74404086103
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 6.5mm |
| Length | 8mm |
| Depth | 8mm |
| Packaging | Tape & Reel |
| Series | WE-LQS |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10mH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 |
| Package/Case | 8065 |
| Maximum DC Current | 130mA |
| Pin Count | 2 |
| Maximum DC Resistance | 22.8Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 411kHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a compact 8065 package with dimensions 8mm x 6.5mm x 8mm.
- Designed for a maximum DC current of 130mA with maximum DC resistance of 22.8Ω.
- Complies with automotive standard AEC-Q200 and RoHS, REACH, JEDEC JS709B, IEC 61249-2-21 standards.
- Ferrite core and wirewound construction ensure high efficiency and shielding.
- Operating temperature range from -40°C to 125°C for reliability in harsh environments.
- Surface mount termination style enables easy PCB integration.
- Maximum self-resonant frequency of 411kHz supports efficient signal handling.
- Suitable for use in portable electronics, switching controllers, and power management circuits.
Product Description
Wurth Elektronik 74404086103 WE-LQS 8065 series shielded wirewound surface mount inductor features a ferrite core and is designed for compact, high-performance electronic applications. With 10mH ±20% inductance and a maximum DC current rating of 130mA, it offers reliable power management in demanding environments.
This inductor is built with wirewound construction on a ferrite core and includes magnetic shielding to reduce electromagnetic interference, enhancing signal integrity. The compact 8mm length, 6.5mm height, and 8mm depth 8065 package style allow for space-efficient designs on printed circuit boards.
Certification to the automotive standard AEC-Q200, along with compliance to RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards, guarantees quality, safety, and environmental compliance for industrial and automotive applications.
Its maximum DC resistance of 22.8Ω and a maximum self-resonant frequency of 411kHz ensure efficient operation in high-frequency circuits. The surface mount termination style enables seamless integration into automated assembly lines, supported by Tape & Reel packaging.
Ideal for use in switching power supply controllers, portable devices such as smartphones, PDAs, digital cameras, and televisions, this inductor offers high reliability across a wide temperature range from -40°C to 125°C.
Compact and robust design with 8065 case size. Magnetically shielded to reduce interference. High current handling and low DC resistance. Wide operating temperature range enhances durability. Compliance with multiple industry and environmental standards.
Suitable for automotive and portable electronics applications. Tape & Reel packaging supports automated PCB assembly. Explore more Surface Mount Inductors and electronic components at EnvMart for your detailed project needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 10mH with a tolerance of ±20%.
It has a maximum DC current rating of 130mA.
The dimensions are 8mm in length, 6.5mm in height, and 8mm in depth.
The maximum DC resistance is 22.8Ω.
The maximum self-resonant frequency is 411kHz.
It operates within a temperature range of -40°C to 125°C.
It complies with automotive standard AEC-Q200 and RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.
This inductor features a wirewound construction on a ferrite core.
The termination style is surface mount, enabling easy integration into PCBs.
It is packaged in Tape & Reel format, which supports automated assembly processes.
It is suitable for use in portable electronics, switching power supply controllers, and power management circuits.
This model has a pin count of 2.
