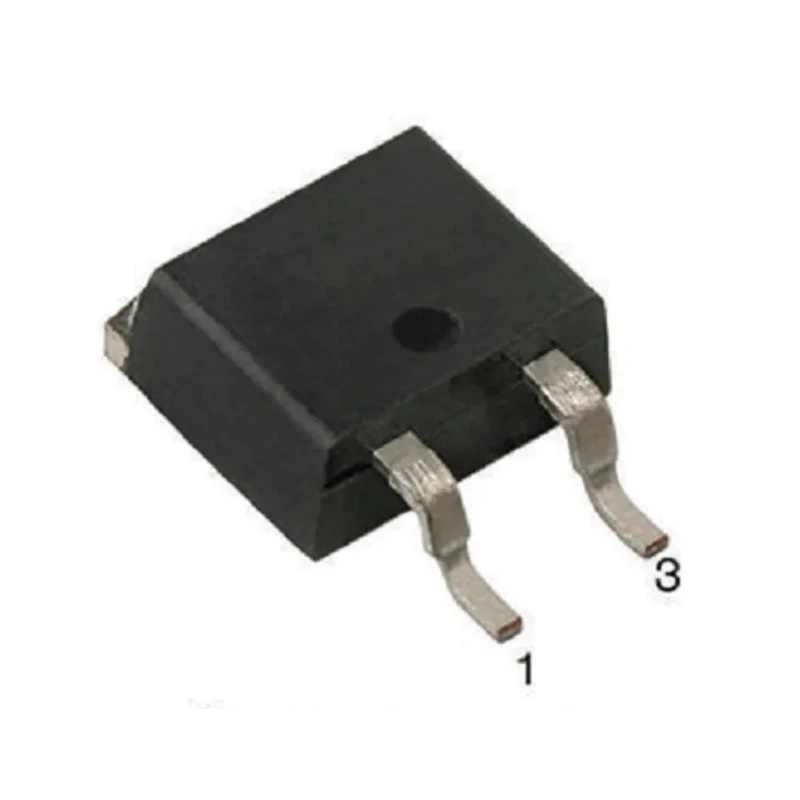

Vishay 600 V 20 A Rectifier & Schottky Diode General Purpose D2PAK VS-ETU2006S2LHM3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-ETU2006S2LHM3 |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | RoHS |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 160A |
| Maximum Forward Voltage Vf | 1.1V |
Key Features
- Rated for 600 V peak reverse repetitive voltage and 20 A maximum continuous forward current.
- Packaged in TO-263 (D2PAK) for surface mount installation.
- Ideal for AC/DC SMPS 70 W to 400 W, such as laptop, printer, desktop PC, and TV adaptors.
- Features ultralow VF and soft-switching hyperfast recovery, minimizing conduction and switching losses.
- Operating junction temperature up to 175°C for extended thermal reliability.
- Qualified according to automotive standard AEC-Q101 and RoHS compliant.
- Single diode configuration optimized for discontinuous power factor correction designs.
- Maximum forward voltage of 1.1 V and surge current rating up to 160 A.
Product Description
Vishay's VS-ETU2006S2LHM3 rectifier and Schottky diode delivers outstanding performance for demanding power conversion and switching applications. With a peak reverse repetitive voltage of 600 V and a maximum continuous forward current of 20 A, this device is engineered for use in general purpose rectification, power factor correction, and as a freewheeling diode in AC/DC power supplies.
The TO-263 (D2PAK) package allows for reliable surface mount operation, facilitating efficient integration into modern assembly lines and equipment. Its advanced FRED Pt series design and single diode configuration optimize switching performance and ensure low conduction losses - an essential feature for industrial, laboratory, and commercial electronics.
Rated for 600 V Vrrm and 20 A continuous current for robust rectification applications. Ultrafast recovery and low forward voltage (1.1 V max) significantly reduce circuit switching losses. Rugged construction and thermal stability with operating junction temperature up to 175°C.
Peak surge current capability up to 160 A supports transient load demands. AEC-Q101 qualified and RoHS compliant for automotive and global electronics standards. Surface mount TO-263 package enables high-volume automated soldering and insertion.
Single diode configuration ideal for AC/DC SMPS, power factor correction, and freewheeling circuits. Minimized leakage current helps ensure efficiency and reliability even under harsh conditions.
Designed for use by professionals in power supply manufacturing, industrial automation, laboratory instrumentation, consumer electronics, and commercial equipment, the VS-ETU2006S2LHM3 delivers consistent, high-performance rectification and reliable operation.
This diode is particularly suited for applications like laptop and printer adaptors, desktop PCs, monitors, games units, and DVD AC/DC systems, where efficiency and thermal stability are essential.
Browse more Vishay Schottky Diodes and Rectifiers, or explore EnvMart's full semiconductor lineup for your project requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the VS-ETU2006S2LHM3 is 20 A.
This model is rated for a peak reverse repetitive voltage of 600 V.
The maximum operating temperature for the VS-ETU2006S2LHM3 is 175°C.
It is packaged in a TO-263 (D2PAK) format for surface mount installation.
The maximum forward voltage drop for this diode is 1.1 V.
The peak non-repetitive forward surge current rating is up to 160 A.
Yes, it is qualified according to the automotive standard AEC-Q101.
The minimum operating temperature is -55°C and the maximum is 175°C.
This model is suitable for applications such as AC/DC power supplies, power factor correction, and as a freewheeling diode.
The VS-ETU2006S2LHM3 is RoHS compliant and meets the AEC-Q101 automotive standard.
It features ultralow forward voltage and soft-switching hyperfast recovery, which help minimize conduction and switching losses.
The diode configuration for this model is single, optimized for various applications.
