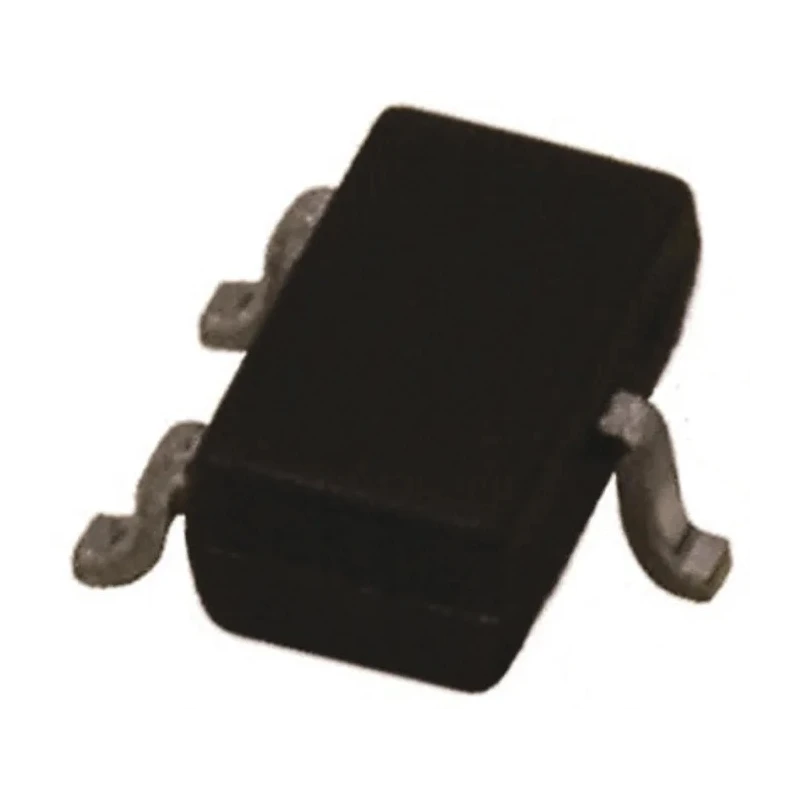

Littelfuse 2-Element Uni-Directional TVS Diode Array, 3-Pin SC-70 SP1001-02JTG

Littelfuse SP1001-02JTG is a 2-element uni-directional Transient Voltage Suppressor (TVS) diode array designed to provide effective electrostatic discharge (ESD) and transient voltage protection. Packaged in a compact 3-pin SC-70 surface mount package, this TVS diode array offers robust protection for sensitive electronic equipment in automotive and industrial environments.

The device features a minimum breakdown voltage of 6V and a maximum reverse stand-off voltage of 5.5V, making it ideal for protecting circuits operating at low voltage levels. Its clamping voltage is rated at 13V, and it can handle a maximum peak pulse current of 2A, safeguarding components against transient spikes.

Equipped with two diode elements in an array configuration, the SP1001-02JTG efficiently absorbs repetitive electrostatic discharge strikes without degradation. Its low leakage current of 100nA reduces power dissipation, while its operation over a wide temperature range from -40°C to 125°C ensures reliability in harsh industrial and automotive conditions.

The small SC-70 package, measuring just 2.25mm by 1.35mm by 1mm, enables dense PCB layouts, saving valuable board space. Additionally, its design inherently protects high-speed signal pins due to very low loading capacitance, approximately 8pF typically per I/O.

This TVS diode array complies with the AEC-Q101 automotive standard and is suitable for safeguarding computer peripherals, mobile phones, digital cameras, desktops, notebooks, LCD/PDPTVs, set-top boxes, and other consumer electronics against damage from ESD and transient voltages. The product's country of origin is Thailand.

Comprises two elements in a uni-directional diode array configuration. Low capacitance for high-speed signal protection. ESD protection rated to ±15kV contact discharge and ±30kV air discharge. Wide operating temperature range from -40°C to 125°C.

Compact SC-70 surface mount package for space-saving PCB design. Compliance with automotive standard AEC-Q101. Low leakage current minimizes power loss in protected circuits.

From industrial manufacturing to automotive electronics and consumer devices, the Littelfuse SP1001-02JTG TVS Diode Array provides reliable transient voltage and ESD protection for sensitive electronic components. Explore a wide range of semiconductor protection devices at EnvMart for your engineering and production needs.
