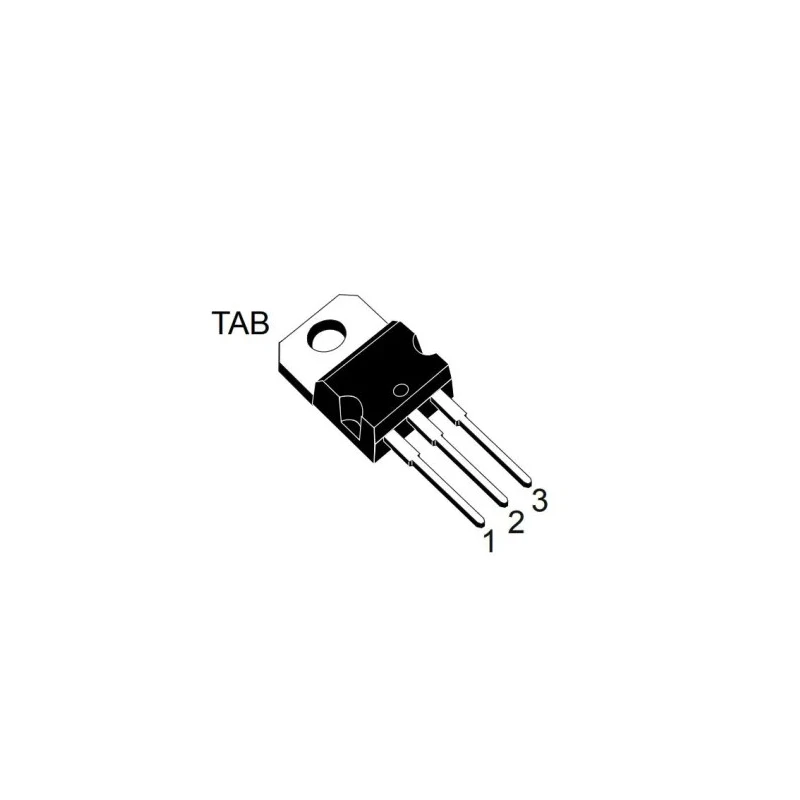

STMicroelectronics Type N-Channel Power MOSFET 55A, 650V, TO-220, Enhancement Mode STP80N240K6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 4.6mm |
| Length | 28.9mm |
| Model | STP80N240K6 |
| Width | 10.4mm |
| Mount Type | Through Hole |
| Series | STP |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-220 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | UL |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Channel Type | Type N |
| Maximum Continuous Drain Current Id | 55A |
| Maximum Drain Source Voltage Vds | 650V |
| Maximum Drain Source Resistance Rds | 45mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 140W |
| Typical Gate Charge Qg @ Vgs | 80nC |
| Maximum Gate Source Voltage Vgs | 30V |
| Forward Voltage Vf | 1.5V |
Key Features
- Offers maximum drain current of 55A and drain-source voltage of 650V.
- Enhanced mode for efficient switching and control.
- TO-220 package with through-hole mount for easy integration.
- Low drain-source resistance (45mΩ) ensures minimal power loss.
- Automotive standard AEC-Q101 compliance for reliability.
- Maximum power dissipation of 140W for robust performance.
- Supports operating temperature range from -55°C to 150°C.
- UL approved and zener-protected for safety.
Product Description
STMicroelectronics STP80N240K6 N-Channel Power MOSFET is designed for high-performance, high-efficiency power management and switching applications. It delivers exceptional results with a maximum continuous drain current of 55A and a drain-source voltage rating of 650V, making it suitable for systems that require both high voltage and high current capacity. The enhanced mode technology improves responsiveness and efficiency.
The device features a TO-220 package with through-hole mounting, facilitating easy installation and integration into PCB assemblies. Its low drain-source resistance of just 45mΩ minimizes energy loss during operation, while the automotive AEC-Q101 standard ensures robust reliability in harsh environments. With a power dissipation capability of 140W and a wide operating temperature range from -55°C to 150°C, this MOSFET is appropriate for industrial power supplies, LED lighting, chargers, adapters, and a broad range of demanding electronic systems.
Maximum drain current of 55A and voltage rating of 650V, ideal for power-intensive circuits. Enhanced mode delivers efficient switching and precise control. TO-220 package design provides effective heat dissipation and manufacturing versatility.
UL-certified, automotive AEC-Q101 compliant for demanding environments. Robust 3-pin configuration and zener protection for added safety. Minimal RDS(on) reduces conduction losses and increases system efficiency. Wide temperature range enables use in both industrial and automotive conditions.
Recommended for flyback topology, LED lighting, battery chargers, and adapters. Applications include industrial and laboratory electronics, manufacturing equipment, HVAC systems, power conversion, automotive products, and commercial electronics.
Choose STMicroelectronics for superior reliability and performance in MOSFET technology. Explore more power management solutions in the MOSFET category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous drain current for the STP80N240K6 is 55A.
This MOSFET has a drain-source voltage rating of 650V.
The STP80N240K6 is packaged in a TO-220 format, which allows for through-hole mounting.
It has a maximum power dissipation capability of 140W.
The operating temperature range for this model is from -55°C to 150°C.
The drain-source resistance (RDS(on)) is 45mΩ, which helps minimize energy loss during operation.
This model complies with the automotive standard AEC-Q101, ensuring reliability in harsh environments.
The typical gate charge (Qg) at Vgs is 80nC.
The maximum gate-source voltage (Vgs) is 30V.
The dimensions of the STP80N240K6 are 28.9mm in length, 10.4mm in width, and 4.6mm in height.
This MOSFET is suitable for applications such as industrial power supplies, LED lighting, battery chargers, and adapters.
It is UL approved and features zener protection for added safety.
