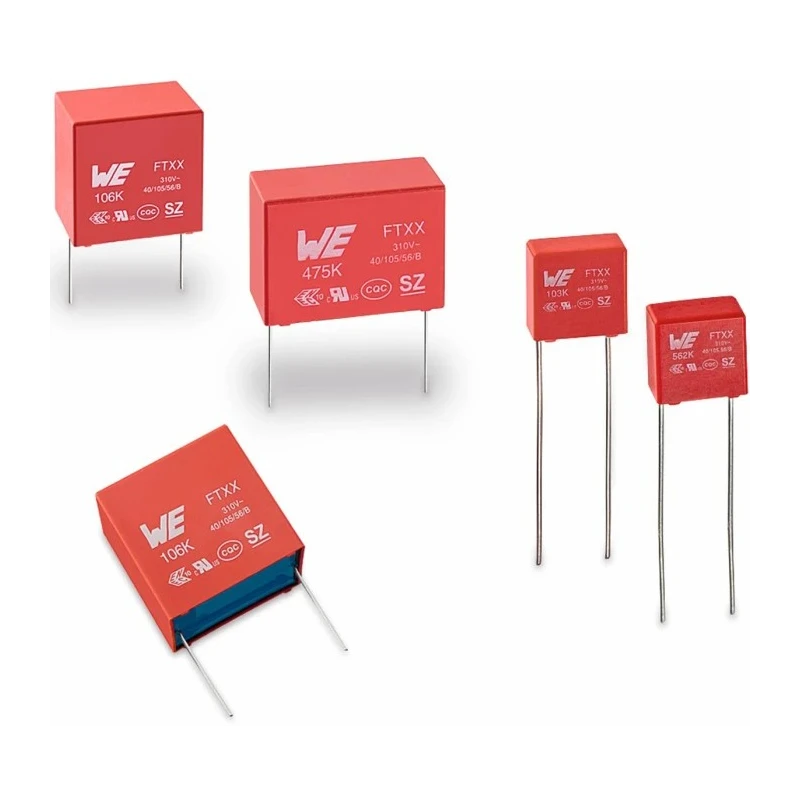

Wurth Elektronik WCAP-FTXX Film Capacitor X2, 680nF, ±10% Tolerance, 310V AC/DC, Through Hole, 890334026020
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40 °C to +105°C |
| Height | 15mm |
| Length | 26mm |
| Width | 7.5mm |
| Mount Type | Through Hole |
| Series | WCAP-FTXX |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 680nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.7% |
| Lead Length | 20mm |
| Standards/Approvals | CQC, cULus, ENEC, VDE |
| Package/Case | 500 |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Applications include | Safety applications, Filter and Power Supplies |
| Suppression Class | X2 |
Key Features
- Rated capacitance of 680nF for reliable filtering and suppression.
- ±10% tolerance ensures stable operation across a wide temperature range.
- Designed for through hole mounting, suitable for PCB and power supply layouts.
- Rated for 310V AC and 310V DC operation, ideal for high voltage industrial setups.
- Radial terminal configuration allows easy integration in circuit assemblies.
- Polypropylene film build delivers self-healing and safety properties.
- Meets CQC, cULus, ENEC, and VDE international standards.
- Supports safety and interference suppression coil applications.
Product Description
Wurth Elektronik 890334026020 Film Capacitor X2 is engineered for advanced EMI filtering, interference suppression, and safety circuit integration in industrial electronics. This WCAP-FTXX Series capacitor features a rated capacitance of 680nF and ±10% tolerance, ensuring consistent electrical performance for demanding applications such as filter and power supplies. With a voltage rating of 310V AC/DC, it is suited for use in high-voltage conditions, providing stability and reliability in diverse environments.
The through hole mounting format with radial terminals and a lead pitch of 22.5mm simplifies PCB installation, making it compatible with wave soldering and secure circuit positioning. Its polypropylene film construction offers self-healing properties and longevity, vital for maintaining operational safety and minimizing maintenance in industrial settings.
Designed for filtering and suppression in EMI and safety-critical circuits. Operates between -40°C and +105°C, supporting extended temperature and harsh environments. Complies with CQC, cULus, ENEC, and VDE standards for international quality assurance.
Encapsulated in self-extinguishing material meeting UL94V-0 requirements for heightened safety. Ideal for use in industrial, commercial, laboratory, and electronic applications requiring reliability and safety.
Dimensions include a length of 26mm, width of 7.5mm, height of 15mm, and a lead diameter of 0.8mm. The package is suitable for bulk circuit assembly and integration into electronic control systems.
This capacitor finds frequent application in filter circuits, interference suppression coils, and power supply assemblies, delivering robust performance for electrical installations. Compatible with EMI filter designs and safety modules, it supports global compliance and operational excellence.
Browse more Wurth Elektronik capacitors, components, and passive electronic products in the Film Capacitor category at EnvMart for reliable industrial solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The rated capacitance of this model is 680nF, ensuring reliable filtering and suppression in various applications.
It is rated for 310V AC and 310V DC operation, making it suitable for high voltage industrial setups.
The dimensions are 26mm in length, 7.5mm in width, and 15mm in height, with a lead diameter of 0.8mm.
This model has a tolerance of ±10%, which ensures stable operation across a wide temperature range.
It operates within a temperature range of -40°C to +105°C, suitable for extended and harsh environments.
This capacitor is designed for through hole mounting, which simplifies PCB installation.
It features a radial terminal configuration, allowing for easy integration into circuit assemblies.
It meets several international standards, including CQC, cULus, ENEC, and VDE.
It is suitable for safety applications, as well as filtering and power supply assemblies.
The lead pitch for this model is 22.5mm, which aids in secure circuit positioning.
The dissipation factor is 0.7%, which contributes to its efficiency in filtering applications.
It is constructed from polypropylene film, which provides self-healing properties and enhances safety.
