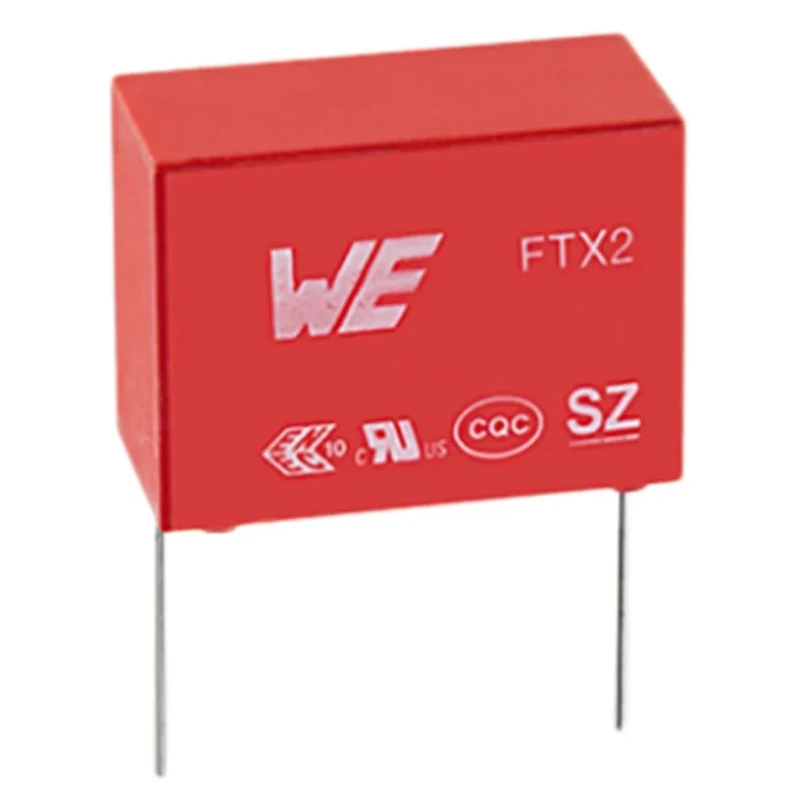

Wurth Elektronik WCAP-FTX2 Film Capacitor X2, 22 nF, 275 V AC/DC, ±10% Tolerance, Through Hole FTX2
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Operating Temperature | -40 °C to +105°C |
| Height | 9.5mm |
| Length | 13mm |
| Model | FTX2 |
| Width | 4.5mm |
| Mount Type | Through Hole |
| Series | WCAP-FTX2 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±10 % |
| Capacitance | 22nF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Radial |
| Dissipation Factor | 0.5% |
| Lead Length | 20mm |
| Standards/Approvals | VDE, ENEC, cULus, CQC |
| Package/Case | 500 |
| Rated AC Voltage | 275V ac |
| Rated DC Voltage | 275V dc |
| Lead Pitch | 10mm |
| Lead Diameter | 0.6mm |
| Applications include | Safety applications, Filter and Power Supplies |
| Suppression Class | X2 |
Key Features
- Capacitance of 22 nF for EMI and filtering use in electronic circuits.
- Tolerance is ±10%, providing consistent electrical performance.
- Through hole mounting and radial terminal configuration simplify PCB integration.
- Polypropylene film construction ensures durable self-healing properties.
- Designed for operating temperature between -40°C and +105°C.
- Complies with VDE, ENEC, cULus, and CQC safety standards.
- Lead pitch of 10 mm and lead length of 20 mm for standard PCB fitment.
Product Description
The Wurth Elektronik WCAP-FTX2 Film Capacitor X2, model FTX2, is a high-performance metallized polypropylene film capacitor engineered for EMI suppression and safety applications in a range of industrial and electronic systems. With a capacitance of 22 nF and rated for 275 V AC and 275 V DC, the WCAP-FTX2 Series delivers reliable performance for interference suppression in power supplies, filters, and other sensitive electronic circuits.
This component is designed with a ±10% tolerance, supporting precise electrical parameters. Its through hole mounting and radial terminal configuration enable straightforward integration onto PCBs. The self-healing properties of the MKP polypropylene film construction enhance durability and lifetime, making it suitable for demanding industrial or commercial environments.
The WCAP-FTX2 meets global safety and quality standards, including VDE, ENEC, cULus, and CQC, supporting use in regulated and safety-critical applications. Its operating temperature range of -40°C to +105°C provides resilience for varied environmental conditions, making it well-suited for use in EMI filters, safety power supplies, and interference suppression coils. Encapsulation with self-extinguishing material compliant with UL94V-0 increases safety reliability.
Additional technical details include a lead pitch of 10 mm, lead length of 20 mm, and lead diameter of 0.6 mm. Physical dimensions are 13 mm length, 4.5 mm width, and 9.5 mm height, ensuring compatibility with standard electronic assemblies. The dissipation factor is 0.5%, with a suppression class rated at X2, intended for interference suppression across the load in electrical circuits.
Practical industrial applications include filtering in power lines, interference suppression in HVAC panels, appliance controllers, lighting systems, or manufacturing electronic modules. The WCAP-FTX2’s robust construction and reliability make it ideal for OEMs, laboratory engineers, and commercial electronics manufacturing.
Explore more reliable capacitors and passive components in the Film Capacitor category at EnvMart. Discover other Wurth Elektronik products to match your application requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this model is 22 nF, suitable for EMI suppression and filtering applications.
It is rated for 275 V AC and 275 V DC, making it versatile for various electronic applications.
The tolerance level is ±10%, ensuring consistent electrical performance in applications.
The operating temperature range is between -40°C and +105°C, allowing it to function in diverse environments.
This film capacitor features through hole mounting, facilitating easy integration onto PCBs.
The dimensions are 13 mm in length, 4.5 mm in width, and 9.5 mm in height, which ensures compatibility with standard electronic assemblies.
It has a radial terminal configuration with a lead pitch of 10 mm and a lead length of 20 mm.
This model complies with VDE, ENEC, cULus, and CQC safety standards, making it suitable for regulated applications.
The dissipation factor is 0.5%, which is a critical parameter for its performance in electronic circuits.
It is suitable for safety applications, filtering, and power supplies, particularly in EMI suppression contexts.
The capacitor is manufactured in India, ensuring compliance with international quality standards.
The suppression class is rated at X2, indicating its suitability for interference suppression in electrical circuits.
