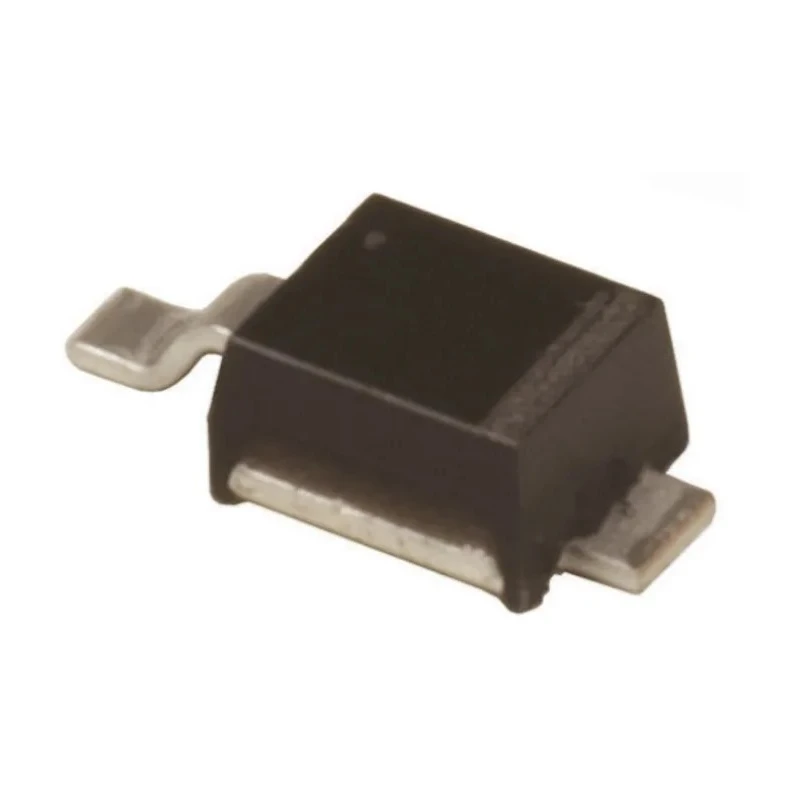

onsemi Schottky Diode 40V 1A 2-Pin Surface Mount POWERMITE MBRM140T1G

Free Delivery in India | Lowest Global Shipping Charges

onsemi Schottky Diode 40V 1A 2-Pin Surface Mount POWERMITE MBRM140T1G

Name: onsemi Schottky Diode 40V 1A 2-Pin Surface Mount POWERMITE MBRM140T1G
Brand: onsemi
SKU: 87418



Category Schottky Diode Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	1.15mm
Length	2.18mm
Model	MBRM140T1G
Width	2.05mm
Mount Type	Surface
Maximum Operating Temperature	125°C
Package Type	POWERMITE
Minimum Operating Temperature	-55°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	1A
Peak Reverse Repetitive Voltage Vrrm	40V
Diode Configuration	Single
Rectifier Type	Schottky
Peak Reverse Current Ir	500μA
Peak Non-Repetitive Forward Surge Current Ifsm	50A
Maximum Forward Voltage Vf	550mV

Key Features

Operates reliably with a peak reverse repetitive voltage of 40V.
Supports a maximum continuous forward current of 1A for demanding applications.
Single Schottky diode configuration with surface-mount 2-pin POWERMITE package.
Features low forward voltage drop of 550mV for efficient switching.
Designed for automated board assembly and compact PCB layouts.
Rated for AEC-Q101 automotive standard for enhanced reliability.
Wide operating temperature range from -55°C to 125°C.
Epoxy molded case with lightweight 11.7mg package.

Product Description

onsemi MBRM140T1G is a Schottky barrier diode engineered for high-frequency, low voltage rectification in compact electronic circuits. With a peak reverse repetitive voltage of 40V and a maximum continuous forward current of 1A, this diode provides reliable switching and polarity protection for a variety of applications including power supplies, converters, and automotive electronics. The MBRM140T1G comes in a surface-mount 2-pin POWERMITE package, making it ideal for automated board assembly and compact designs. Its low forward voltage drop (550mV) significantly improves efficiency, reducing heat and power loss in demanding environments.

This product employs the Schottky barrier principle, optimizing the trade-off between forward voltage drop and reverse current. The lightweight epoxy molded case (11.7mg) helps minimize board footprint and offers excellent stress protection guarding.

With AEC-Q101 automotive standard compliance, the MBRM140T1G meets rigorous reliability requirements. The wide operating temperature range from -55°C to 125°C ensures performance stability in adverse conditions. The package height, width, and length are 1.15mm, 2.05mm, and 2.18mm respectively, supporting integration in space-constrained applications.

Typical industrial uses include consumer electronics, automotive systems, mobile device power supplies, and high-frequency rectifier circuits. Preferred where compact size and low weight are key.

Operates reliably with a peak reverse repetitive voltage of 40V. Supports a maximum continuous forward current of 1A for demanding applications. Single Schottky diode configuration with surface-mount 2-pin POWERMITE package.

Features low forward voltage drop of 550mV for efficient switching. Designed for automated board assembly and compact PCB layouts. Rated for AEC-Q101 automotive standard for enhanced reliability. Wide operating temperature range from -55°C to 125°C.

Epoxy molded case with lightweight 11.7mg package.
