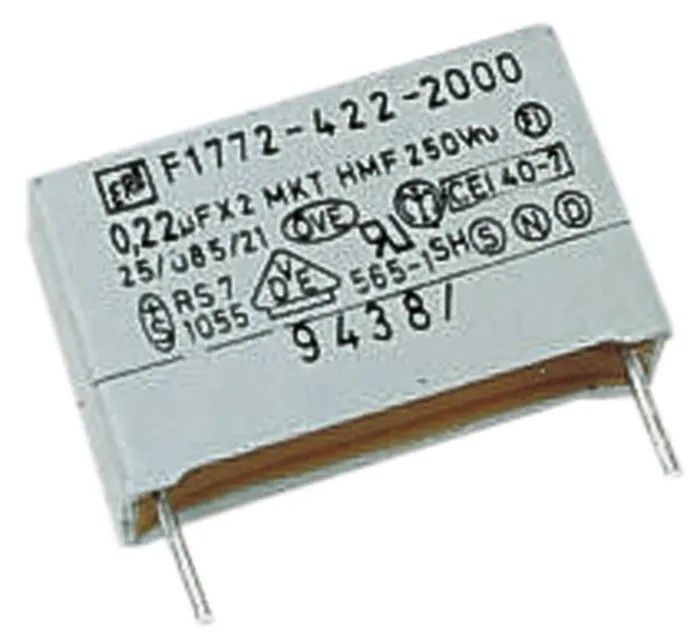

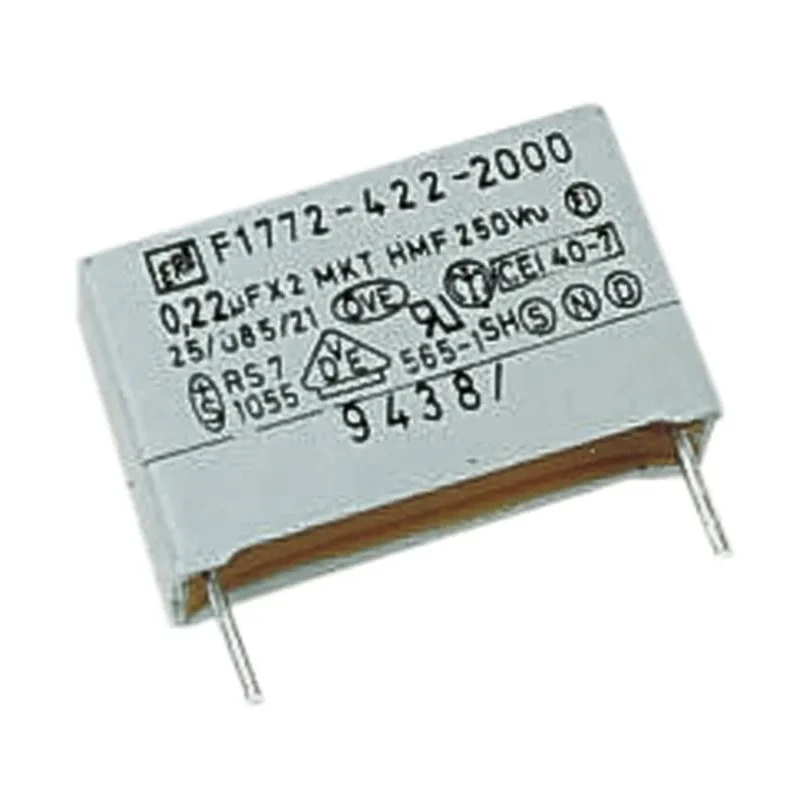

Vishay 150nF 310V AC/DC Film Capacitor, Through Hole, 15mm Pitch F17724152260
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 14.3mm |
| Length | 17.8mm |
| Model | F17724152260 |
| Width | 8.3mm |
| Mount Type | Through Hole |
| Series | F1772 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 150nF |
| Rated AC Voltage | 310V ac |
| Rated DC Voltage | 310V dc |
| Lead Pitch | 15mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 |
| Suppression Class | X2 |
Key Features
- Film capacitor featuring a capacitance of 150nF for precision electronic applications.
- Rated for 310V AC and 310V DC operation, suitable for both AC and DC circuits.
- Through hole mounting design for secure board placement and reliable connections.
- Lead pitch of 15mm supports easy PCB installation and orientation.
- Class X2 suppression, ideal for interference suppression between phase and neutral or phases.
- Compliant with AEC-Q200 automotive standard for enhanced reliability.
- Metallised film construction in an epoxy resin-sealed, flame-retardant case.
- Supports a maximum operating temperature up to 110°C for performance in demanding environments.
Product Description
The Vishay F17724152260 is a high-quality film capacitor with a capacitance of 150nF, specifically designed for applications requiring robust interference suppression and stability. With a voltage rating of 310V AC as well as 310V DC, it caters to a wide range of AC and DC electronic circuits, including power supplies, filtering, and noise reduction in industrial control and automation systems. This component is particularly well-suited for installations between phases or between phase and neutral in mains-related signal conditioning and EMI/RFI filtering.
This capacitor features a through hole mounting configuration paired with a 15mm lead pitch, allowing for convenient and stable PCB assemblies. The X2 suppression class ensures its reliability in suppressing differential mode interference, preventing electrical noise from affecting downstream circuitry in both consumer and industrial equipment.
Constructed using metallised film, the capacitor offers longevity with low loss characteristics. The component is sealed in an epoxy resin, providing a flame-retardant, rugged enclosure that meets or exceeds key safety and performance standards, such as IEC 60065, CSA E384-14, IEC 60384-14 ed-4, EN 60384-14, and UL 60384-14. Its automotive comformance (AEC-Q200) certification further underscores its applicability in automotive and transport-grade electronics.

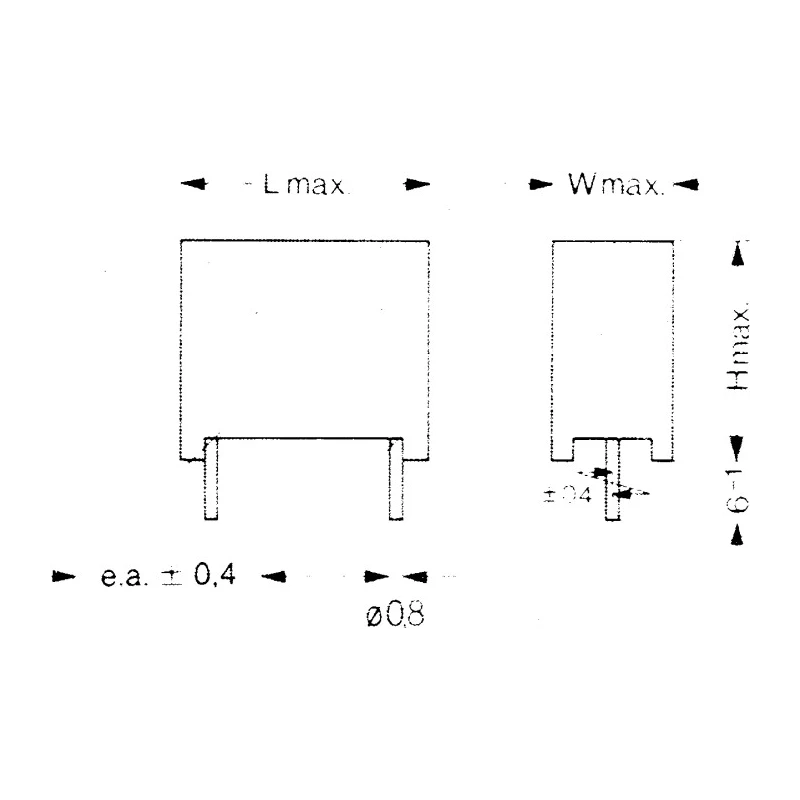

The Vishay F17724152260 operates within a maximum temperature of 110°C, accommodating demanding industrial, lighting, and power management applications. With a compact footprint - length 17.8mm, height 14.3mm, width 8.3mm, and a lead diameter of 0.8mm - it is engineered for designs where both performance and size constraints must be observed.
Typical use cases include use in industrial control panels, automation systems, HVAC units, power supply interference suppression, and automotive electronic modules where robust EMC performance is required. Its combination of performance, compliance, and ease of installation make it a preferred choice for engineers and maintenance professionals.
Please refer to the detailed technical specification table for comprehensive parameters and ensure compatibility with your application’s requirements. Explore more high-quality Film Capacitors and electronic components in the Vishay product range at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It has a capacitance of 150nF, making it suitable for precision electronic applications.
This capacitor is rated for 310V AC and 310V DC operation, allowing it to be used in both AC and DC circuits.
The maximum operating temperature is 110°C, accommodating demanding industrial and power management applications.
It features a lead pitch of 15mm, which supports easy PCB installation and orientation.
This model is designed for through hole mounting, ensuring secure board placement and reliable connections.
The dimensions are 17.8mm in length, 14.3mm in height, and 8.3mm in width, with a lead diameter of 0.8mm.
It is suitable for applications such as power supply interference suppression, industrial control panels, and automotive electronic modules.
It has an X2 suppression class, which is ideal for interference suppression between phase and neutral or between phases.
Yes, it complies with the AEC-Q200 automotive standard, enhancing its reliability in automotive applications.
It features a metallised film construction and is sealed in an epoxy resin case that is flame-retardant.
It meets or exceeds several safety and performance standards, including IEC 60065 and UL 60384-14.
This capacitor is part of the F1772 series, which is designed for robust performance in various applications.
