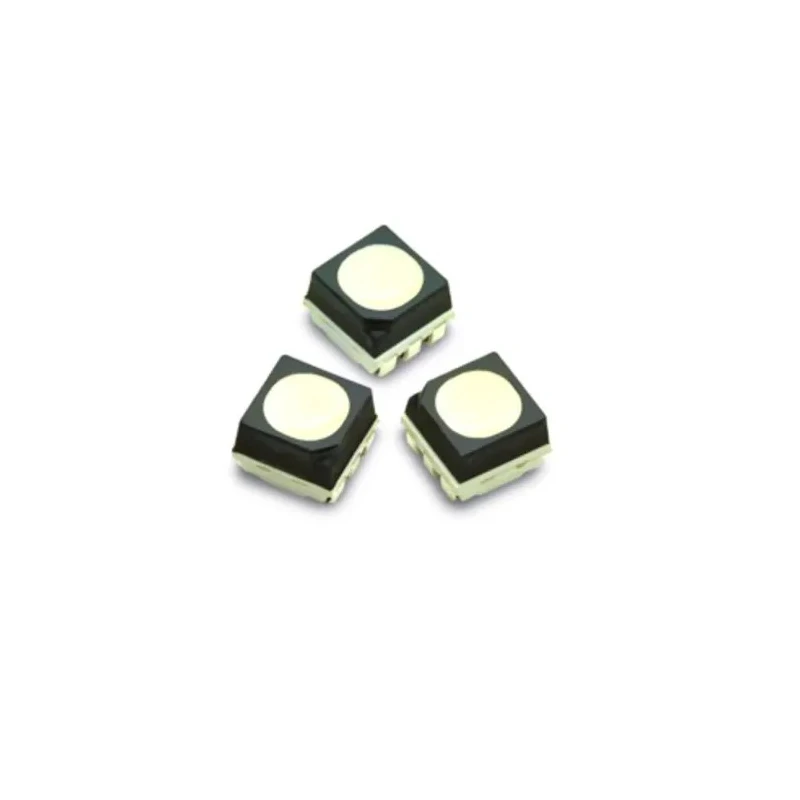

Broadcom RGB LED, Surface Mount, PLCC 6, 2.9 V, 30 mA, 120 mW, 6 Pins, Rectangular, ASMB-TTF0-0A20B

The Broadcom ASMB-TTF0-0A20B is a surface-mount RGB LED designed for compact and reliable indication and signalling in electrical assemblies. Featuring a PLCC 6 package, this component is engineered for straightforward integration into surface-mounted PCB designs, making it a suitable solution for manufacturing environments that require precise, high-density placement.

This RGB LED operates at a nominal forward voltage of 2.9 V and supports a forward current of up to 30 mA, providing high luminous output in blue, green, and red. The respective luminous intensities are 990 mcd (blue), 2470 mcd (green), and 572 mcd (red), making it well-suited for clear visual indication in various lighting conditions. Its maximum power dissipation of 120 mW helps minimize thermal buildup during continuous operation.

The ASMB-TTF0-0A20B incorporates a diffused rectangular lens that produces an even light output, reduces direct glare, and enhances viewing comfort. With a 110° viewing angle, signals are visible from wide perspectives, improving panel indication and status display clarity.

For automated production processes, this LED is supplied in tape-and-reel packaging, facilitating efficient pick-and-place assembly on high-volume lines. Its six-pin PLCC lead configuration ensures robust and stable contact during soldering and subsequent operation. Dimensions of the lens are approximately 3.7 mm by 3.5 mm, contributing to a standardized mounting footprint.

This Broadcom LED is commonly applied in status indicators on industrial control panels, panel illumination in laboratory or instrumentation displays, multicolour signalling for consumer electronics, and visual alerts in medical device panels. The component is not covered by automotive certification, but it does meet key environmental standards, including RoHS compliance.

Key technical details include blue, green, and red colour outputs, a transparent diffused lens, rectangular lens shape, and clear lens finish. Forward voltage is rated at 2.9 V with a maximum forward current of 30 mA. The component supports applications that demand reliable, high-intensity colour indication over long operational lifespans.

As part of electronic and optoelectronic subassemblies, the Broadcom ASMB-TTF0-0A20B enhances user interfaces, improves process safety, and increases visibility in displays used in industrial, laboratory, commercial, and consumer-grade electronics projects. Browse the full range of industrial LEDs and optoelectronic devices in the Electronics Components categories to explore compatible products and innovative solutions from Broadcom.
