Kubler 3501 Series Incremental Encoder 28V Compact Linear Measuring Encoder D5.3501.A221.0000

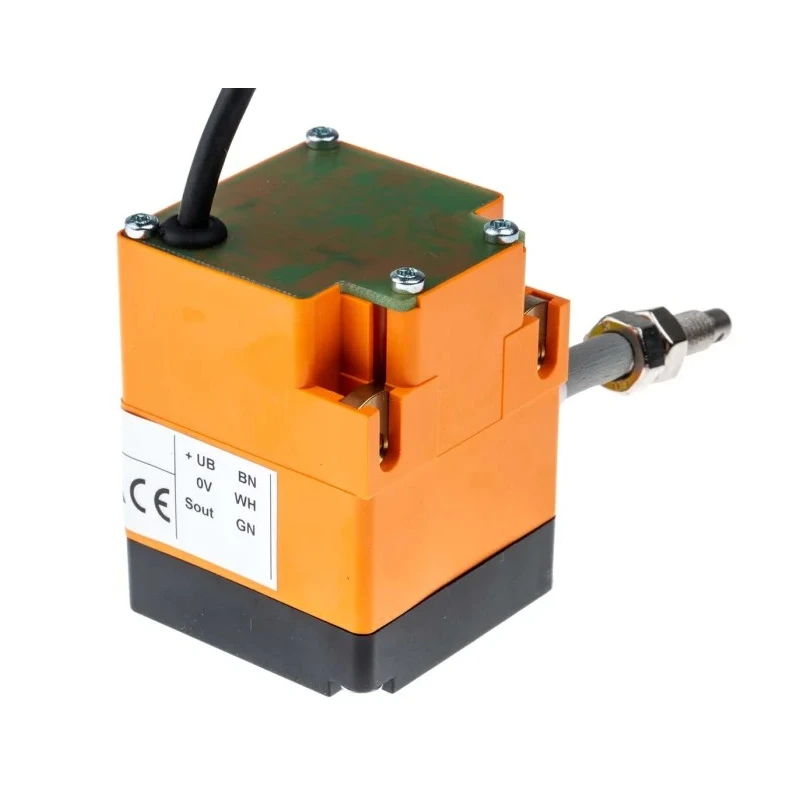

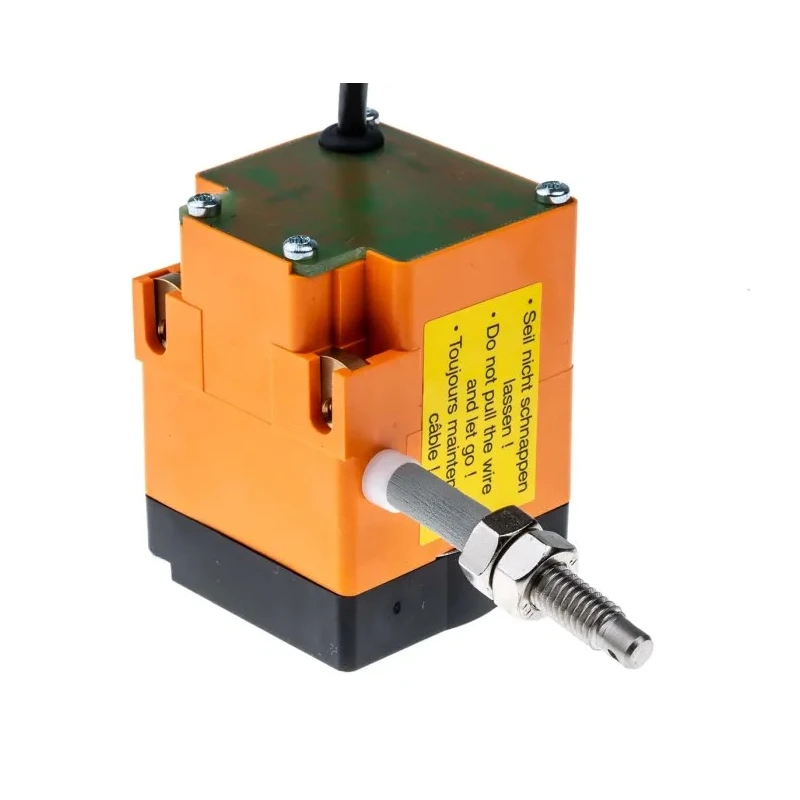

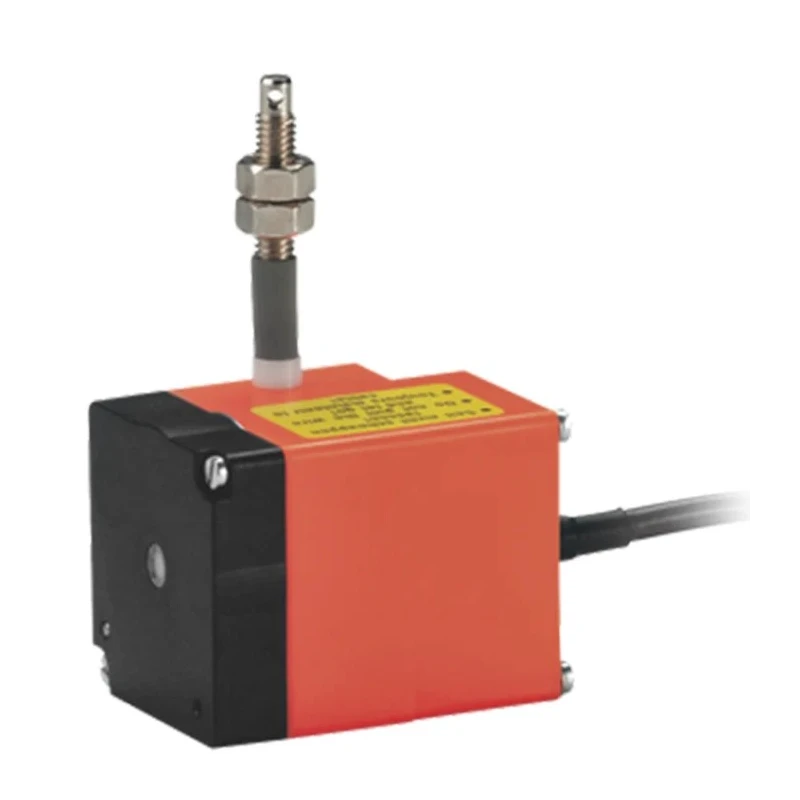

Kubler D5.3501.A221.0000 Incremental Encoder 28V is a compact miniature cable pull sensor with analogue output tailored for precise length or distance measurement in industrial machine and plant construction.

The device converts linear movements by extending and retracting its plastic-coated steel cable into rotational motions, enabling exact measurements for automation and control systems.

With a measurement length capacity up to 1000 mm, the encoder features a compact design with dimensions of 74 x 43 x 40 mm, making it suitable for installations in limited spaces. Powered by a supply voltage ranging from 15 V DC to a maximum of 28 V DC, it provides reliable performance while adhering to RoHS standards, showcasing environmental compliance.

The robust design ensures operational stability in temperatures up to 50°C while offering a current or voltage analogue output for easy evaluation with digital display equipment.

This Incremental Encoder is a cost-effective alternative to conventional rotary transducer designs, offering straightforward integration into motion control sensor systems commonly used in industrial automation, manufacturing, and process monitoring applications.

Provides measurement length up to 1000 mm with a robust design. Miniature cable pull sensor with analogue output for easy integration. Converts linear movements into rotational motions for accurate position feedback. Compact dimensions of 74 x 43 x 40 mm suitable for space-constrained applications.

Operates efficiently with power supply from 15 V DC to 28 V DC. Steel cable is plastic-coated to ensure durability and longevity. Offers simple evaluation via analogue signals compatible with digital displays. Low-cost alternative to traditional rotary transducers.

Designed to withstand operating temperatures up to 50°C. Compliant with RoHS standards ensuring environmental safety.

The product is manufactured in Germany and designed for various industrial uses including automation, manufacturing, and machinery requiring precise linear measurement and control solutions.
