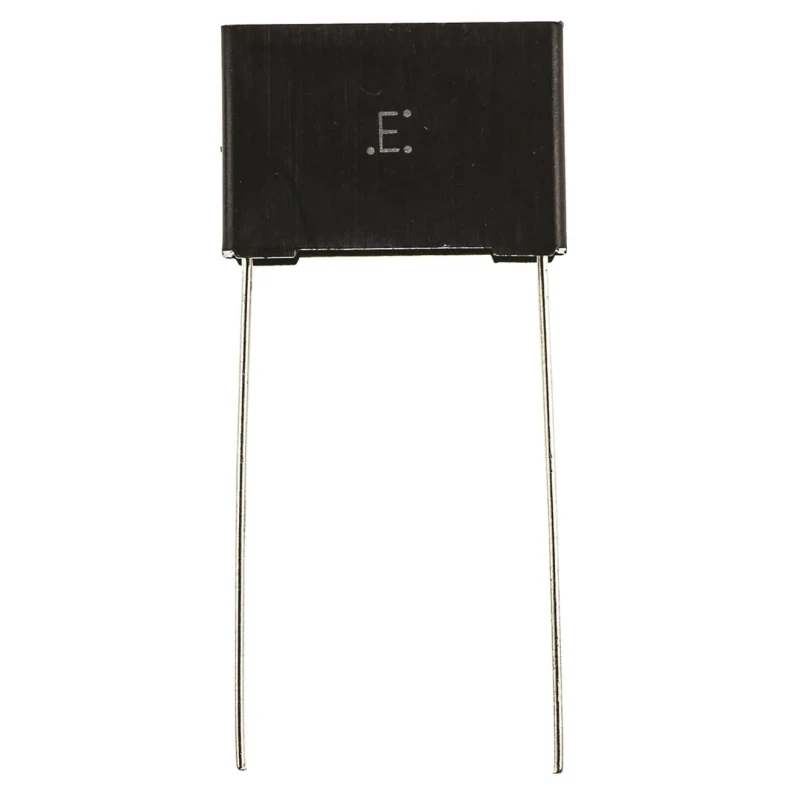

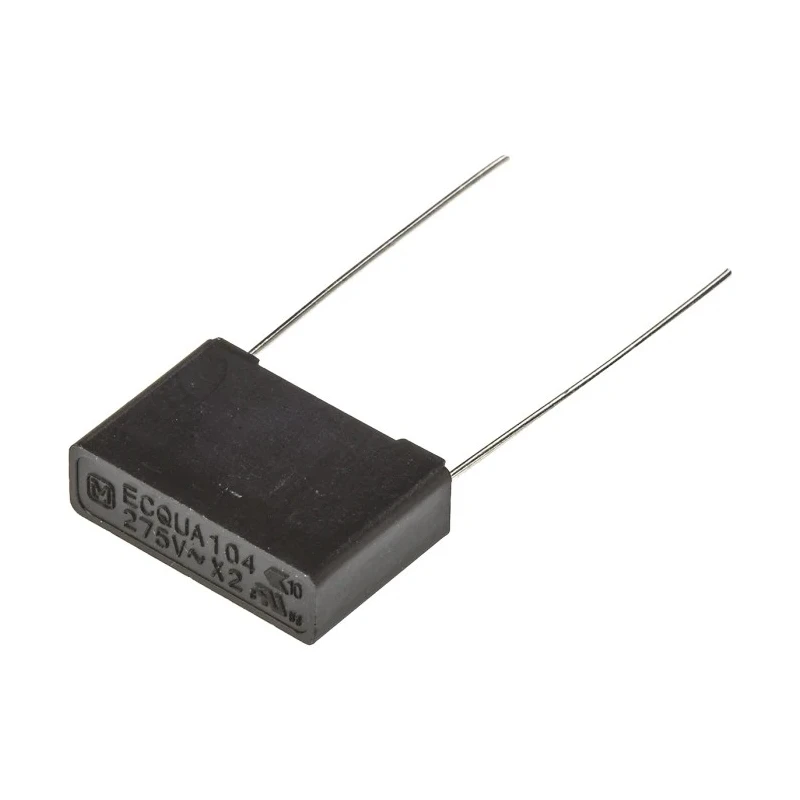

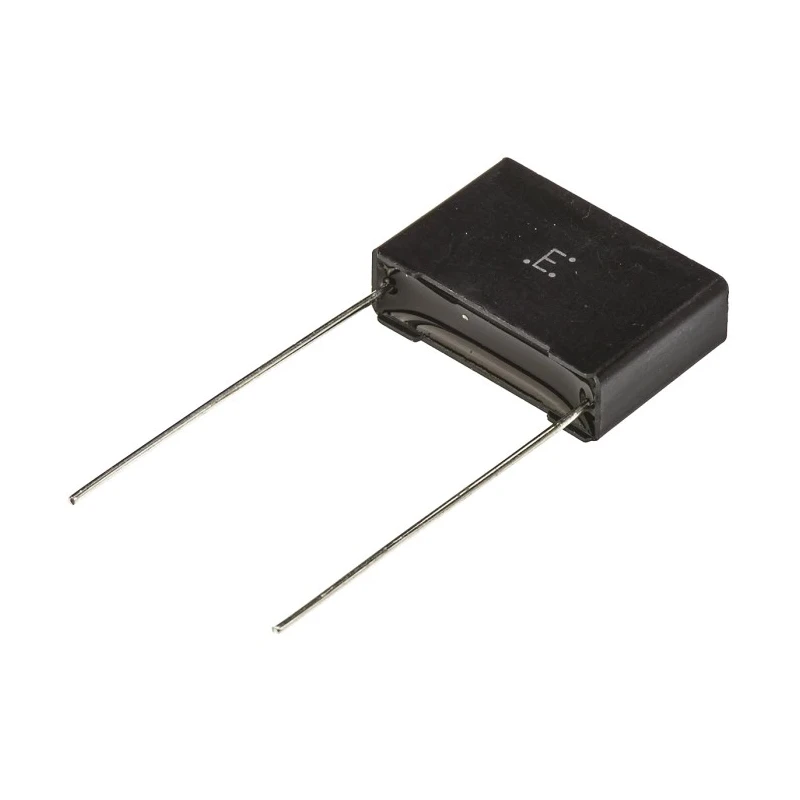

Panasonic ECQUA Film Capacitor X2, ±20 %, 100 nF 275V AC Through Hole Mount ECQUAAF104M

Panasonic ECQUAAF104M film capacitor is a high-safety X2 class interference suppression capacitor with a capacitance of 100 nF and rated for 275V AC operation. It features a through hole mount with 15 mm lead pitch, making it compatible with standard PCB layouts.

The ECQUA series capacitors are equipped with safety mechanisms including a flame retardant plastic housing combined with non-combustible resin to prevent fire hazards. It meets stringent automotive standard AEC-Q200 as well as UL, CSA, and European IEC safety certifications.

Operating reliably within a temperature range of -40°C to 110°C, these capacitors are compact in size, measuring 17.5 mm in length, 12 mm in height, and 5 mm in width with 0.6 mm lead diameter wires.

Designed primarily for interference suppression coils in mains supply circuits, the capacitor exhibits a dissipation factor of just 0.2%, ensuring minimal energy loss. It is suitable for use in industrial electronics, automation, HVAC, and power supplies where noise suppression is critical.

The device is packaged in a bag format with 20 mm minimum full-length leads, facilitating efficient insertion and assembly processes in manufacturing environments. Compliance with IEC60384-14, EN 60384-14, UL 60384-14, and CAN/CSA E60384-14 standards guarantees its quality and reliability for demanding applications.

Has a capacitance of 100 nF with ±20 % tolerance. Designed for through hole mounting with 15 mm lead pitch. Complies with automotive standard AEC-Q200 and international safety certifications. Operates safely between -40°C and 110°C temperature range.

Compact construction with dimensions 17.5 mm length, 12 mm height, and 5 mm width. Features a flame retardant plastic housing with non-combustible resin for enhanced safety. Lead diameter measures 0.6 mm suitable for standard PCB installations.

Dissipation factor of 0.2% ensures efficient capacitor performance. Recommended for use in interference suppression coils and mains supply applications. Meets IEC, EN, UL, CSA standards for X2 class film capacitors.

This Panasonic film capacitor ECQUAAF104M is ideal for industrial electronics, laboratory equipment, power distribution systems, and automotive electronics requiring reliable interference suppression solutions. Browse EnvMart's range of high-quality Film Capacitors to find suitable components for your electronic design and manufacturing needs.
