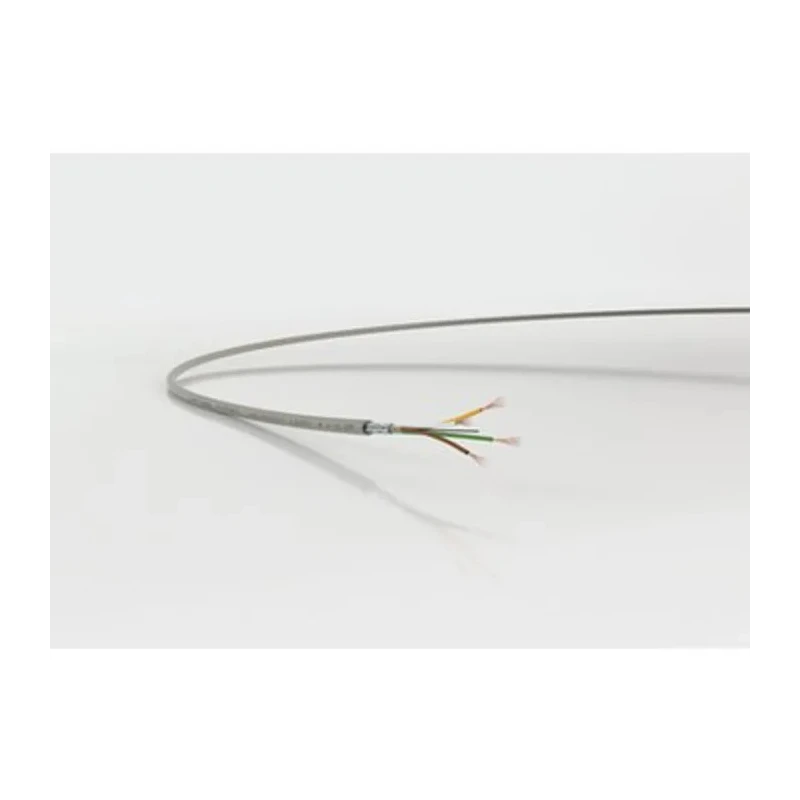

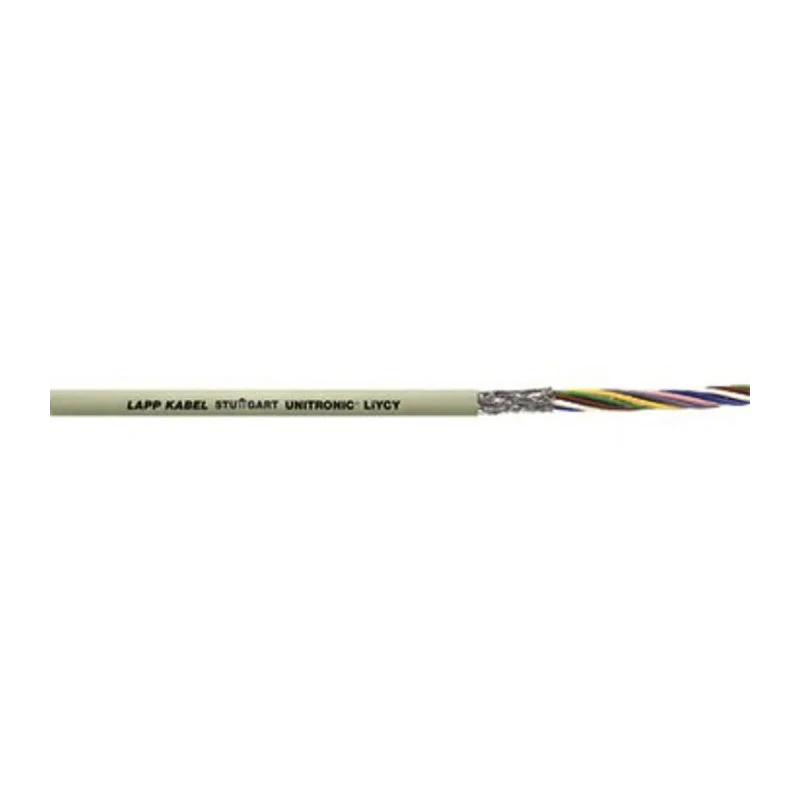

ABB UNITRONIC LiYCY Series Data Cable 14 Pairs 14 Cores 0.14 mm² 100 m Grey Sheath Polyvinyl Chloride 0034314
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 250V |
| Brand | ABB |
| CROSS SECTIONAL AREA | 0.14 mm² |
| Model | 0034314 |
| Cable Length | 100m |
| Series | UNITRONIC LiYCY |
| Outside diameter | 6.7mm |
| Maximum Operating Temperature | 80°C |
| Number Of Cores | 14 |
| Conductor Material | Bare Copper |
| Minimum Operating Temperature | -40°C |
| Jacket Material | Polyvinyl Chloride |
| Standards/Approvals | CE, RoHS |
| Jacket Colour | Grey |
| Screened/Unscreened | Screened |
| Conductor Type | Stranded |
| Number of Strands | 18 |
| Core Strands | 18 x 0.10mm |
| Size of Strands | 0.10mm |
| • Operating temperature with occasional flexing | -5°C to +70°C |
| Number of Pairs | 14 |
| • Operating temperature with fixed installation | -40°C to +80°C |
Key Features
- This screened data cable features 14 pairs and 14 cores of stranded bare copper conductor.
- The cross sectional area per conductor is 0.14 mm², with 18 strands of 0.10 mm diameter each.
- The cable length measures 100 meters with a grey outer jacket made of polyvinyl chloride (PVC).
- It operates at a voltage rating of 250V and supports minimum and maximum temperature ranges from -40°C to 80°C.
- The cable is flame retardant complying with IEC 60332-1-2 and EN 60332-1-2 standards, suitable for fixed installations.
- The outer diameter of the cable is 6.7 mm, designed with DIN colour code and shield braid made of tinned wires for EMC protection.
- Ideal for use in communications, process control, RS 232 interfaces, and signal broadcast applications in industrial environments.
- Manufactured in Germany, it supports operating temperatures with occasional flexing from -5°C to +70°C and fixed installation from -40°C to +80°C.
Product Description
Lapp 0034314 UNITRONIC LiYCY Series Data Cable is a high-quality screened multicore data cable featuring 14 pairs and 14 stranded bare copper cores each with a cross sectional area of 0.14 mm². This cable is constructed with a polyvinyl chloride (PVC) grey jacket, measuring 6.7 mm in diameter, and is designed for reliable signal transmission in industrial and automation settings.
The cable features DIN color-coded cores to assist with installation and maintenance and is fitted with a shield braid made from tinned wires to minimize electrical interference, ensuring signal integrity.
The UNITRONIC LiYCY series is flame retardant in accordance with IEC 60332-1-2 and EN 60332-1-2 standards, making it suitable for installations requiring high safety standards. It supports voltage up to 250V and operates reliably between temperature ranges -40°C to +80°C for fixed installations and -5°C to +70°C for occasional flexing.
This cable is ideal for numerous industrial applications such as RS 232 communication protocols, process control systems, broadcasting signals and other low frequency electronic controls. Its compact dimensions allow for space-saving fixed installations where minimum cable diameter is needed.
This screened data cable contains 14 pairs and 14 cores with a 0.14 mm² cross sectional area each. Stranded bare copper conductors are arranged with 18 strands of 0.10 mm diameter wires. Durable grey polyvinyl chloride outer sheath offers flame retardancy and mechanical protection.
DIN color coding simplifies identification and installation tasks. Operational temperature ranges are suitable for both fixed and occasional flexing uses. Voltage rating is 250V, suitable for signal and control electronics.
Made in Germany with adherence to CE and RoHS standards.
Use this Lapp UNITRONIC LiYCY cable in industrial, manufacturing, automation, and electrical applications where screened and flame-retardant cables are required. Pair it with low-resistance screen cable glands for EMC compliance and optimized connectivity.
Explore other high-quality cables and electrical products in the Electronics & Electricals > Wires & Cables > Data Cable category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this data cable is 250V.
This model has a cable length of 100 meters.
The maximum operating temperature for fixed installations is 80°C.
It features 14 pairs and 14 cores of stranded bare copper conductors.
The outer diameter of the cable is 6.7 mm.
The jacket of the cable is made from polyvinyl chloride (PVC).
For occasional flexing, the cable operates between -5°C to +70°C.
Yes, this data cable is screened, featuring a shield braid made of tinned wires for EMC protection.
The cable complies with CE and RoHS standards, and is flame retardant according to IEC 60332-1-2 and EN 60332-1-2.
It uses stranded bare copper conductors, with each conductor having a cross-sectional area of 0.14 mm².
This cable is manufactured in Germany.
It is suitable for communications, process control, RS 232 interfaces, and signal broadcast applications in industrial environments.
