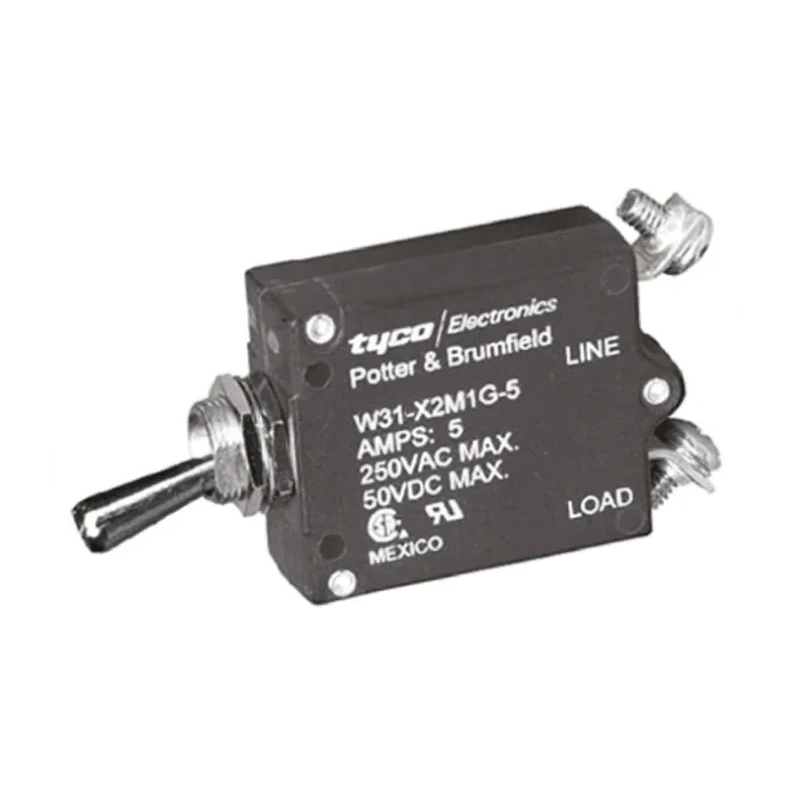

TE Connectivity Thermal Circuit Breaker 0.5 to 50 A Current Range 5A Rating 1-Pole Direct Mount W31-X2M1G-5
Specifications
| Country of Origin | India |
|---|---|
| Range | 0.5 to 50 A |
| Brand | TE Connectivity |
| Model | W31-X2M1G-5 |
| Depth | 40.64mm |
| Width | 17.52mm |
| Mount Type | Direct |
| Current Rating | 5A |
| Series | W31 |
| Terminal type | Screw |
| Breaking Capacity | 1000A |
| Number of Poles | 1 |
| Standards/Approvals | CE, RoHS |
| Rated AC Voltage | 240V ac |
| Rated DC Voltage | 50V dc |
| Tripping Mechanism | Thermal |
| Reset Actuator Type | Toggle Switch |
| Mount Hole Size | 3.33 mm |
| Break Time | Medium |
Key Features
- Rated for a current range of 0.5 to 50 A, providing versatility in electrical protection.
- Features a thermal tripping mechanism with precise trip characteristics for safe operation.
- Equipped with a toggle switch reset actuator for convenient manual reset.
- Designed with screw-type terminals ensuring secure electrical connections.
- Complies with CE and RoHS standards guaranteeing quality and environmental safety.
- Capable of breaking up to 1000A, suitable for demanding electrical circuits.
- Supports AC voltage rated at 240V and DC voltage rated at 50V for broad application use.
- Medium break time and trip-free operation enhance operational reliability.
Product Description
TE Connectivity W31-X2M1G-5 thermal circuit breaker is engineered for reliable protection in electrical systems, featuring a current rating of 5A and 1-pole direct mount design that fits compactly in electrical panels. It supports a wide current range from 0.5 to 50 A, making it adaptable for various applications in industrial, commercial, and residential electrical installations.
The device incorporates a thermal tripping mechanism with specifications including 135% trip within 1 hour and 200% trip within 6.0 to 22 seconds, ensuring sensitive and timely protection against overload conditions. The trip-free operation and toggle switch reset allow for easy manual resetting after tripping without compromising safety.
Designed for ease of installation, this circuit breaker features direct mount capability with a mount hole size of 3.33 mm and screw terminals providing secure connections. Its compact size - 17.52 mm width and 40.64 mm depth - facilitates panel space optimization. The breaker is rated for 240V AC and 50V DC, making it suitable for multiple electrical environments.
With a breaking capacity of 1000A, it can interrupt high fault currents effectively, ensuring system safety and component protection. Compliance with CE and RoHS ensures that the product meets industry standards and environmental requirements.
This Thermal Circuit Breaker is an ideal choice for automation systems, industrial electrical setups, HVAC panels, and other control systems requiring dependable circuit protection.
Rated current range from 0.5 A to 50 A. Thermal trip mechanism with defined trip characteristics. Toggle switch reset actuator for manual reset. Secure screw terminal connections. Compact size for efficient panel installation.
CE and RoHS certified standards compliance. Breaking capacity of 1000A for fault current interruption. Supports 240V AC and 50V DC voltage ratings. Medium break time and trip-free operation. Explore our wide range of circuit breakers and electrical components at EnvMart for quality and reliable industrial electrical protection solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This thermal circuit breaker has a current rating of 5A.
It has a breaking capacity of 1000A, allowing it to interrupt high fault currents effectively.
It supports an AC voltage rating of 240V and a DC voltage rating of 50V.
The dimensions of this model are 17.52 mm in width and 40.64 mm in depth.
It features screw-type terminals for secure electrical connections.
The thermal tripping mechanism provides defined trip characteristics, with 135% trip within 1 hour and 200% trip within 6.0 to 22 seconds.
This circuit breaker is designed for direct mounting, facilitating easy installation.
The required mount hole size for installation is 3.33 mm.
Yes, it complies with CE and RoHS standards, ensuring quality and environmental safety.
It is equipped with a toggle switch reset actuator for convenient manual resetting after tripping.
It has a current range capability from 0.5 to 50 A, providing versatility in electrical protection.
This thermal circuit breaker is suitable for automation systems, industrial electrical setups, HVAC panels, and other control systems requiring dependable circuit protection.
