| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | MSE1PBHM3/89A |
| Mount Type | Surface |
| Series | FRED Pt |
| Maximum Operating Temperature | 150°C |
| Package Type | MicroSMP |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Non-Repetitive Forward Surge Current Ifsm | 20A |
| Maximum Forward Voltage Vf | 0.92V |

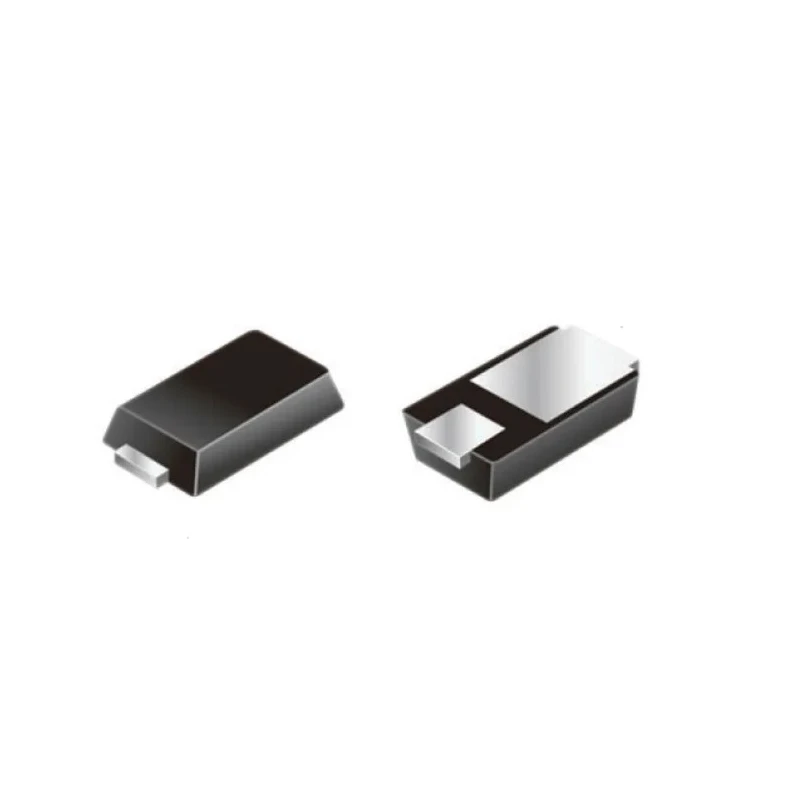

Vishay MSE1PBHM3/89A is a general purpose rectifier and Schottky diode designed for use in electronic protection applications including polarity and rail-to-rail protection in both consumer and automotive electronics.
This device is supplied in a compact surface mount MicroSMP package with a very low profile height of typically 0.65 mm, making it ideal for space-constrained printed circuit board designs and automated placement processes.
It features a maximum continuous forward current rating of 1 A, with a peak reverse repetitive voltage of 100 V, providing reliable operation in demanding electrical environments. The diode exhibits a low forward voltage drop of 0.92 V and minimal leakage current due to its oxide planar chip junction technology.
Operating over a wide temperature range from -65°C to 150°C, this diode can withstand harsh thermal conditions. It also supports peak non-repetitive forward surge currents up to 20 A, which makes it tolerant to transient electrical surges.
The MSE1PBHM3/89A is RoHS compliant, ensuring it meets current standards for hazardous substance reduction and environmental safety.
Its general purpose capability and robust characteristics make it well suited for applications in industrial electronics, automotive systems, power protection circuits, and general semiconductor usage where rectifier and Schottky Diode functionality is required.
Surface mount MicroSMP package with low profile height of 0.65 mm. 1 A maximum continuous forward current rating. 100 V peak reverse repetitive voltage. Low forward voltage drop of 0.92 V for efficiency. Wide operating temperature range from -65°C to 150°C.
20 A peak non-repetitive forward surge current capability. Oxide planar chip junction ensuring low leakage current. Ideal for automated PCB assembly processes. RoHS compliant for environmental safety. Designed for consumer and automotive electronics protection applications.
Experience reliable diode performance with Vishay’s MSE1PBHM3/89A for industrial, automotive, and electronic protection circuitry. Explore more semiconductors and discrete diodes in EnvMart’s comprehensive electronics category.
