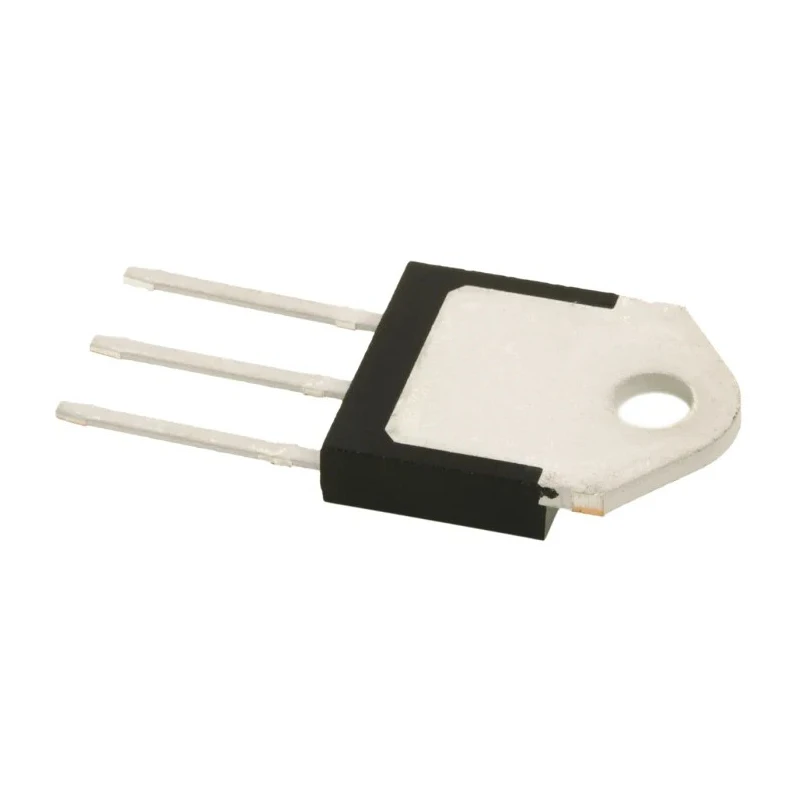

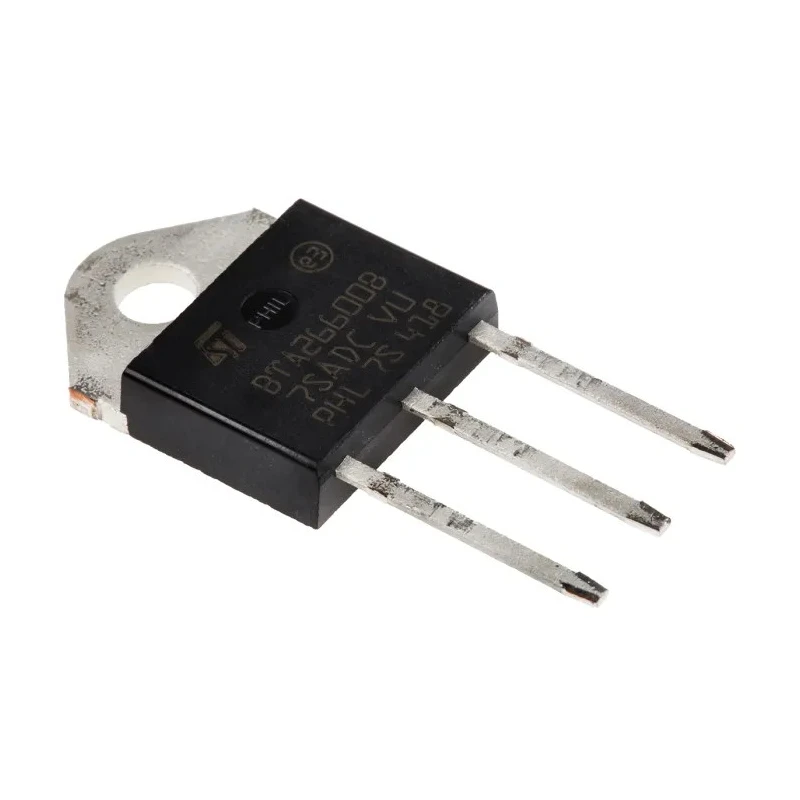

STMicroelectronics Through Hole 3-Pin TRIAC 600 V Gate Trigger 1.3 V BTA26-600BRG
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 12.85mm |
| Length | 15.5mm |
| Model | BTA26-600BRG |
| Mount Type | Through Hole |
| Configuration | Single |
| Maximum Operating Temperature | 125°C |
| Package Type | TOP |
| Minimum Operating Temperature | -40°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 714-0515PBrand: STMicroelectronicsManufacturers Part No.: BTA26-600BRG |
| Pin Count | 3 |
| Rated Average On-State Current Irms | 25A |
| Repetitive Peak Reverse Voltage VDRM | 600V |
| Surge Current Rating | 260A |
| Maximum Gate Trigger Current Igt | 100mA |
| Maximum Holding Current Ih | 80mA |
| Maximum Gate Trigger Voltage Vgt | 1.3V |
| Peak On-State Voltage | 1.55V |
| Repetitive Peak Off-State Current | 5μA |
| Peak Gate Power Dissipation | 1W |
Key Features
- Rated average on-state current of 25 A for demanding load control.
- Through-hole mount type for easy PCB insertion and soldering.
- Maximum repetitive peak reverse voltage of 600 V ensuring high voltage endurance.
- Surge current rating of 260 A to handle transient load conditions.
- Compact TO-220 package dimensioned at 15.5 mm length and 12.85 mm height.
- Maximum gate trigger current of 100 mA enabling sensitive gate control.
- Operating temperature range from -40°C to 125°C for robust performance.
- Low peak gate power dissipation of 1 W for efficient thermal management.
Product Description
STMicroelectronics BTA26-600BRG is a high-performance 3-pin TRIAC incorporating a through-hole mounting style suitable for AC switching and phase control applications in industrial and commercial systems. Rated for an average on-state current of 25 A and capable of withstanding repetitive peak reverse voltages up to 600 V, this TRIAC is designed to control AC power loads efficiently and reliably.
The device operates with a low gate trigger voltage of 1.3 V and a maximum gate trigger current of 100 mA, facilitating sensitive activation and effective control in power electronics circuits. Its electrical characteristics include a surge current rating of 260 A and a peak gate power dissipation capped at 1 W, ensuring durability even under transient conditions.
This BTA26-600BRG TRIAC is housed in a TO-220 package with physical dimensions of 15.5 mm length and 12.85 mm height, making it suitable for a wide variety of PCB mounting designs. The robust temperature range from -40°C to 125°C allows operation in harsh environments encountered in industrial, manufacturing, and HVAC power control systems.
The device features a single TRIAC configuration with 3 pins, supporting standard gate and main terminal connections. Its off-state current of 5 μA ensures minimal power loss during inactive periods, supporting energy-efficient designs.
Rated average on-state current of 25 A for reliable power switching. Through-hole TO-220 package for robust mechanical and thermal properties. Maximum gate trigger voltage of 1.3 V for sensitive gate activation. Surge current rating of 260 A to withstand transient loads.
Wide operating temperature range from -40°C to 125°C. Low repetetive off-state leakage current enhances efficiency. Compact dimensions suitable for varied PCB applications. Single configuration with 3 pin count standard TRIAC interface.
Peak gate power dissipation limited to 1 watt for safe operation. Ideal for industrial, commercial, HVAC, manufacturing, and power control applications. Explore the broader range of STMicroelectronics TRIACs and discrete semiconductor components to find solutions tailored to your electrical power switching needs at EnvMart.
Explore more products in our Discrete Semiconductors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum repetitive peak reverse voltage for the BTA26-600BRG is 600 V, ensuring high voltage endurance for demanding applications.
This TRIAC is rated for an average on-state current of 25 A, suitable for reliable power switching.
The physical dimensions of this TRIAC are 15.5 mm in length and 12.85 mm in height, making it compact for various PCB applications.
The surge current rating for the BTA26-600BRG is 260 A, allowing it to handle transient load conditions effectively.
The maximum gate trigger current for the BTA26-600BRG is 100 mA, enabling sensitive gate control in power electronics circuits.
This model operates within a temperature range of -40°C to 125°C, suitable for harsh environments in industrial applications.
The BTA26-600BRG features a through-hole mounting style, which is ideal for easy PCB insertion and soldering.
The maximum gate trigger voltage for the BTA26-600BRG is 1.3 V, allowing for effective activation in control circuits.
The peak gate power dissipation for the BTA26-600BRG is limited to 1 W, ensuring efficient thermal management during operation.
The off-state current for the BTA26-600BRG is 5 μA, which helps minimize power loss during inactive periods.
This TRIAC features a single configuration with 3 pins, supporting standard gate and main terminal connections.
This TRIAC is designed for AC switching and phase control applications in industrial and commercial systems, including HVAC and manufacturing.
