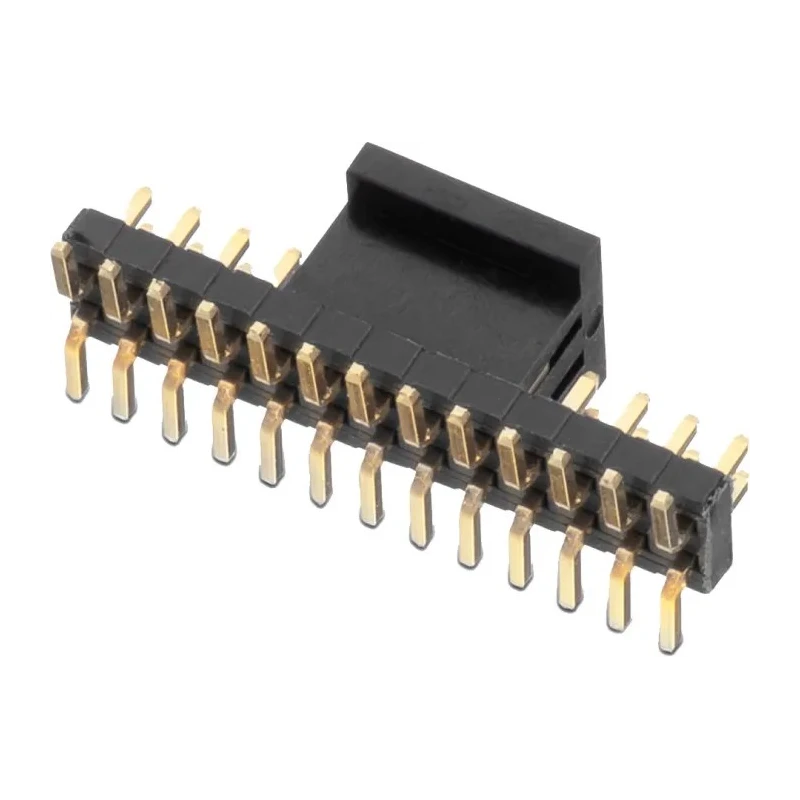

Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 623326235521

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 623326235521

Name: Wurth Elektronik WR-PHD Series Straight Surface PCB Header, 26 Contacts, 1.27 mm Pitch, 2 Row, Unshrouded 623326235521
Brand: Wurth Elektronik
SKU: 404165
Price: 2.21 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	100V
Brand	Wurth Elektronik
Orientation	Straight
Current	1A
Mount Type	Surface
Housing Material	Polyamide 9T
Contact Material	Copper Alloy
Series	WR-PHD
Termination Type	Solder
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	2
Pitch	1.27mm
Standards/Approvals	UL Approval
Contact Plating	Gold
Number of Contacts	26
Contact Gender	Male
Shrouded/Unshrouded	Unshrouded
Connector System	Board-to-Board
Withstanding Voltage	500 V (AC)
Insulator Material	PA9T

Key Features

Constructed with polyamide 9T housing for durability.
Features copper alloy contacts plated with gold for reliable connectivity.
Supports a current of 1 ampere withstanding voltage of 500 V AC.
Operates within a temperature range from -40°C to 105°C.
Straight orientation and unshrouded contact design for easy solder termination.
Complies with UL approval standards ensuring quality and safety.
Designed for surface mount technology (SMT) applications.
Male contact gender suitable for board-to-board connections.

Product Description

Wurth Elektronik 623326235521 is a high-quality WR-PHD Series Straight Surface PCB Header featuring 26 contacts with a pitch of 1.27 mm arranged in 2 rows. Designed specifically for surface mount technology, this unshrouded male header provides reliable board-to-board connector solutions for electronic and electrical assemblies.

Its polyamide 9T housing offers excellent mechanical strength and chemical resistance, while the copper alloy contacts plated with gold enhance conductivity and durability. The component supports a current rating of 1 ampere and can withstand voltages up to 500 V AC, making it suitable for various industrial and commercial electronic applications.

Operating within a temperature range from -40°C to 105°C, the header is well-suited for environments that demand robustness and thermal stability. The straight orientation and unshrouded design facilitate easy solder termination, ensuring secure connections on printed circuit boards.

This PCB header complies with UL approval standards, confirming it meets recognized safety and quality benchmarks. Ideal for use in electronic components manufacturing, power connectors, and advanced PCB assembly industries.

Constructed with polyamide 9T housing for durability. Features copper alloy contacts plated with gold for reliable connectivity. Supports a current of 1 ampere withstanding voltage of 500 V AC. Operates within a temperature range from -40°C to 105°C.

Straight orientation and unshrouded contact design for easy solder termination. Complies with UL approval standards ensuring quality and safety. Designed for surface mount technology (SMT) applications. Male contact gender suitable for board-to-board connections.

This product is manufactured in China and serves diverse applications in electronics, electrical engineering, power connectors, and PCB connector systems. Explore more PCB Headers and related components on EnvMart for complete circuit building solutions.
