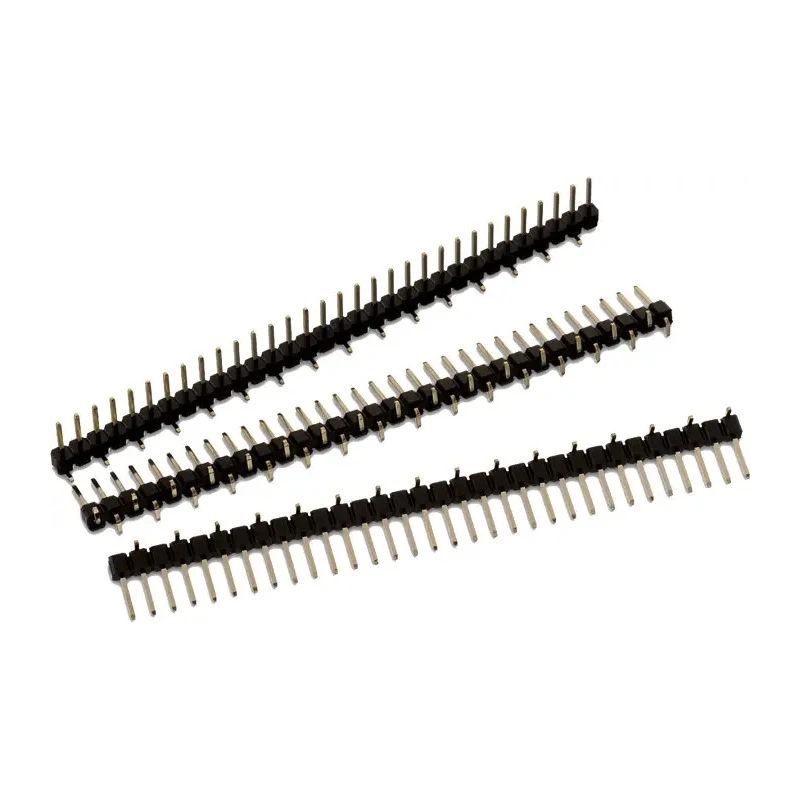

Wurth Elektronik WR-PHD Series Straight Surface PCB Header 24 Contacts 2.54 mm Pitch 1 Row 61002418321

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-PHD Series Straight Surface PCB Header 24 Contacts 2.54 mm Pitch 1 Row 61002418321

Name: Wurth Elektronik WR-PHD Series Straight Surface PCB Header 24 Contacts 2.54 mm Pitch 1 Row 61002418321
Brand: Wurth Elektronik
SKU: 404155
Price: 3.42 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	250V
Brand	Wurth Elektronik
Orientation	Straight
Current	3A
Mount Type	Surface
Housing Material	Polyamide 6T
Contact Material	Copper Alloy
Series	WR-PHD
Durability	25mating cycles
Termination Type	Surface Mount
Maximum Operating Temperature	105°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	2.54mm
Standards/Approvals	RoHS
Contact Plating	Gold
Number of Contacts	24
Contact Gender	Female

Key Features

Features a single row of 24 female contacts with gold plating.
Built with durable Polyamide 6T housing material for high insulation.
Supports a voltage rating of 250V and current up to 3A.
Designed for surface mount applications with straight orientation.
Operates in temperatures from -40°C up to 105°C for varied environments.
Compliant with RoHS standards and offers UL94 V-0 insulator flammability rating.
Durability rated for 25 mating cycles ensuring long-term reliability.
Manufactured in Taiwan, Province Of China with copper alloy contact material.

Product Description

Wurth Elektronik 61002418321 is a straight surface mount PCB Header from the WR-PHD Series. It features 24 female contacts arranged in a single row with a 2.54 mm pitch, designed to provide secure and reliable electrical connections in electronic components and power systems. The header is built using a robust Polyamide 6T housing material that exhibits excellent heat resistance and electrical insulation capabilities.

Its copper alloy contacts are plated with gold to enhance conductivity and prevent corrosion. Rated for a voltage of 250V and a current of 3A, it fits applications demanding moderate electrical performance. The component supports a wide operating temperature range from -40°C to 105°C, making it suitable for various industrial, electronic, and power distribution uses.

The WR-PHD series header utilizes a surface mount termination type and has a straight contact orientation for compact PCB layouts. It complies with RoHS regulations and holds a UL94 V-0 flammability rating for safety and environmental standards. The durability of 25 mating cycles ensures long-lasting mechanical connection under repeated use.

Typical industrial applications include electronic component assembly, power connectors, PCB wiring harnesses, and automation equipment. The precise 2.54 mm pitch makes it compatible with many standard PCBs and interfaces.

Single row surface mount PCB header with 24 female contacts. Gold-plated copper alloy contacts for superior conductivity and corrosion resistance. Housing made of Polyamide 6T for excellent insulation and heat resistance.

Voltage rating of 250V and current capacity of 3A. Operating temperature range from -40°C to 105°C. RoHS compliant and UL94 V-0 rated for safety standards. Durability with 25 mating cycles ensures reliable long-term connection.

Manufactured in Taiwan, suitable for electronic and power connector applications. Explore more electronic components and PCB Headers on EnvMart to find compatible connectors and accessories for your project needs.
