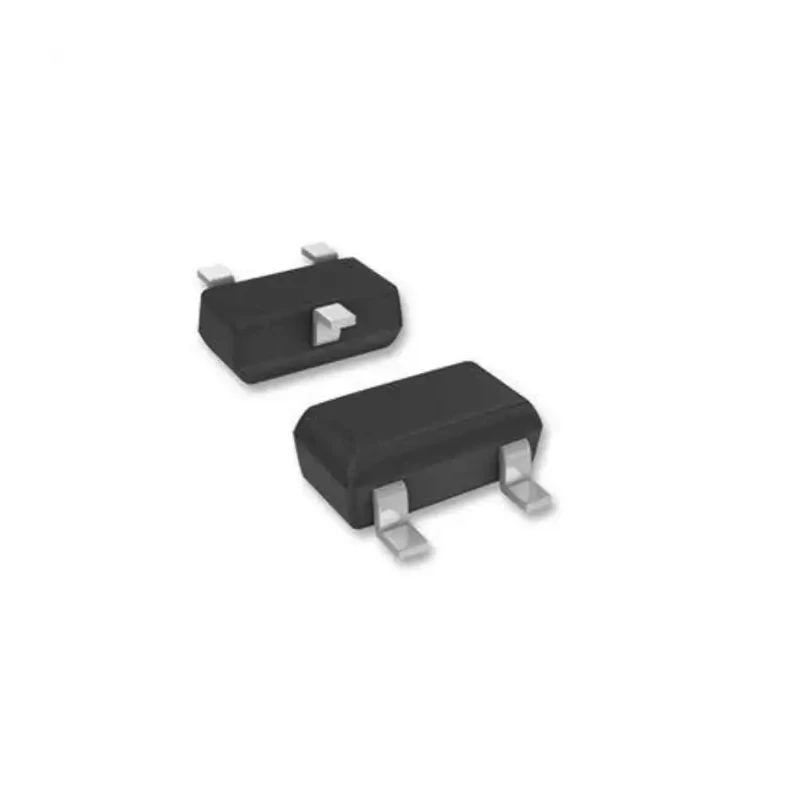

DiodesZetex Hall Effect Sensor Surface Mount 3.3 mA Linear Latching, -40°C to 150°C, 2.7V to 27V AH3272Q-W-7
Specifications
| Country of Origin | India |
|---|---|
| Brand | DiodesZetex |
| Model | AH3272Q-W-7 |
| Output type | Linear |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Surface Mount |
| Switch Operation | Latching |
| Maximum Supply Voltage | 27V |
| Minimum Supply Voltage | 2.7V |
| Supply Current | 3.3mA |
Key Features
- Automotive-compliant AEC-Q100 qualified for high reliability.
- Designed for position and proximity sensing applications.
- Battery polarity reverse connection protection included.
- Transient voltage spike protection ensures device robustness.
- Over-temperature shut down with auto-restart functionality.
- Undervoltage lockout (UVLO) protects against low supply voltage conditions.
- Compact surface mount package suitable for automated assembly.
Product Description
DiodesZetex AH3272Q-W-7 is a high sensitivity Hall Effect Sensor designed for automotive and industrial applications. This surface mount sensor operates with a low supply current of 3.3 mA and supports a wide voltage range from 2.7V minimum to 27V maximum. It provides a linear output with a latching switch operation for reliable position and proximity sensing functionality.
The device features automotive-grade AEC-Q100 qualification ensuring durability and high performance even under extreme conditions ranging from -40°C to 150°C. It includes built-in polarity reverse connection protection, transient spike voltage protection, and an over-temperature shutdown with auto-restart to enhance device safety.
Its undervoltage lockout (UVLO) feature prevents erratic operation during low voltage supply scenarios. The compact surface mount package is ideal for modern automated PCB assembly lines.
Typical use cases include automotive sensing, industrial automation, and control systems requiring precise magnetic field detection with high reliability and robust operating conditions.
Automotive-compliant AEC-Q100 sensor with high voltage tolerance and latching output. Protection features for battery polarity, voltage spikes, and temperature extremes. Wide operating voltage and temperature ranges. Low current consumption supports energy efficient designs.
Compact surface mount device convenient for dense PCB layouts.
Set your design projects apart with this high-quality Hall Effect Sensor AH3272Q-W-7 from DiodesZetex, engineered for precision and durability in demanding industrial and automotive environments. Explore more sensors and electronic components in the Electronics & Electricals category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The AH3272Q-W-7 sensor operates with a supply voltage range from 2.7V to 27V.
This model can operate in temperatures ranging from -40°C to 150°C.
It provides a linear output with a latching switch operation.
The supply current for this sensor is 3.3 mA.
It includes battery polarity reverse connection protection, transient voltage spike protection, and over-temperature shutdown with auto-restart functionality.
Yes, it is automotive-compliant and AEC-Q100 qualified for high reliability in automotive applications.
The AH3272Q-W-7 features a surface mount terminal type.
It is designed for position and proximity sensing applications, particularly in automotive and industrial environments.
The undervoltage lockout (UVLO) feature protects the sensor against erratic operation during low supply voltage conditions.
The country of origin for the AH3272Q-W-7 sensor is India.
The latching switch operation allows for reliable detection of magnetic fields, maintaining its state until a magnetic field of opposite polarity is applied.
The compact surface mount package is beneficial for automated assembly and dense PCB layouts.
