Wurth Elektronik WR-WTB Series Vertical Surface PCB Header, 9 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 653109124022

Free Delivery in India | Lowest Global Shipping Charges

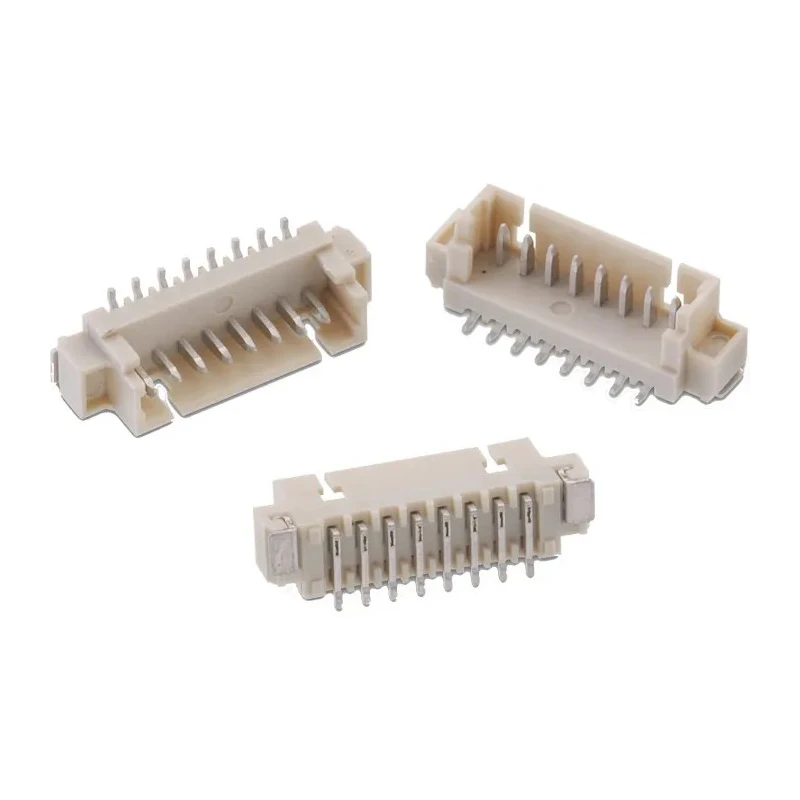

Wurth Elektronik WR-WTB Series Vertical Surface PCB Header, 9 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 653109124022

Name: Wurth Elektronik WR-WTB Series Vertical Surface PCB Header, 9 Contacts, 1.25 mm Pitch, 1 Row, Shrouded 653109124022
Brand: Wurth Elektronik
SKU: 403252
Price: 2.37 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	Taiwan
Voltage	125V
Brand	Wurth Elektronik
Orientation	Vertical
Current	1A
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Copper Alloy
Series	WR-WTB
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-40°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	9
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector supports a maximum current rating of 1 ampere.
It features a single row with vertical orientation for wire-to-board connections.
Contacts are manufactured from copper alloy and plated with tin for reliable conductivity.
The housing is made of durable polyamide material ensuring mechanical and thermal stability.
Suitable for operation in temperatures ranging from -40°C to 85°C.
Designed with solder termination type for secure and reliable PCB attachments.
Meets operating voltage requirements up to 125 volts.
The shrouded design provides protection against accidental contact and enhances safety.

Product Description

Wurth Elektronik 653109124022 WR-WTB Series Vertical Surface PCB Header is a high-quality electronic connector designed for industrial and electronic applications requiring reliable wire-to-board connections. This shrouded male header features 9 contacts aligned in a single row with a pitch of 1.25 mm, optimized for surface mounting on printed circuit boards.

Manufactured using polyamide housing material, this PCB header offers excellent mechanical strength and temperature resistance within the range of -40°C to 85°C, suitable for demanding environmental conditions. The contacts are made of copper alloy plated with tin to ensure excellent electrical conductivity and corrosion resistance. The solder termination type supports robust and secure soldering connections during PCB assembly.

This component supports a current rating of 1 ampere and operates at voltages up to 125 V, making it compatible with various industrial electronic circuits. Its shrouded construction offers enhanced protection by preventing accidental contact with terminals, improving the overall safety of the electronic assembly.

Ideal for use in industrial automation, electronic manufacturing, communication devices, and PCB prototyping, this Wurth Elektronik PCB header assures precision in electronic interfaces requiring compact and reliable connection solutions.

The connector supports a maximum current rating of 1 ampere. Features a vertical, single-row configuration with 9 male contacts. Housing comprises polyamide, ensuring durability and thermal resistance. Contacts are copper alloy with tin plating for superior conductivity.

The operating temperature range is from -40°C to 85°C. Designed for surface mounting and solder termination on PCBs. Voltage rating is 125 volts for versatile electronic applications. Shrouded design provides safety and protection against accidental contact.

Manufactured and sourced from Taiwan, Province Of China.

This Wurth Elektronik PCB header is an essential component for secure and efficient electronic board connectivity where size, reliability, and safety are paramount. Browse more PCB Headers and connectors at EnvMart to find the perfect fit for your project needs.
