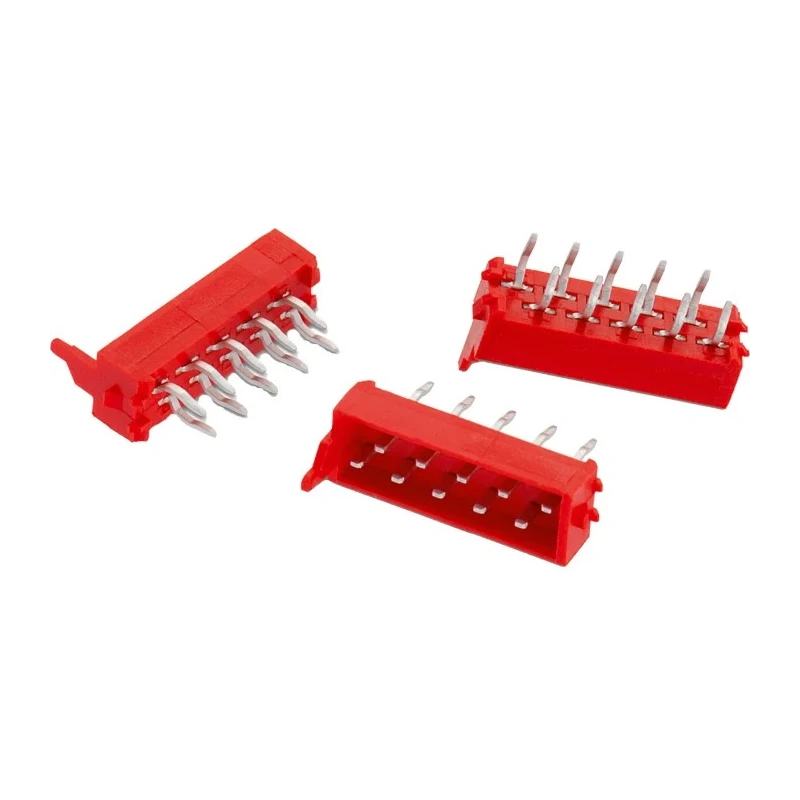

Wurth Elektronik WR-MM Series 14 Contact Through Hole PCB Header, 2.54 mm Pitch, 2 Row, Shrouded 690357101472

Wurth Elektronik 690357101472 WR-MM Series is a high-quality straight through hole PCB header designed with 14 contacts arranged in 2 rows and a pitch of 2.54 mm. The housing is made of durable polybutylene terephthalate (PBT) material, providing excellent insulation and mechanical strength.

The male connector features phosphor bronze contacts plated with matt tin over nickel to ensure reliable conductivity and corrosion resistance. Its shrouded design protects the contacts and prevents accidental misalignment during mating.

This PCB header is rated for a current of 1.5A and a voltage of up to 250V, suitable for various electronic applications requiring stable and secure connections. The connector system supports wire-to-board interfaces with a through hole mounting style, enabling strong mechanical retention on the PCB.

Operating temperature ranges from -40°C to a maximum of 105°C, allowing for use in industrial, commercial, or laboratory electronic assemblies exposed to varying environments. The solder termination type ensures excellent mechanical and electrical bonding on the PCB.

Rated for 1.5A current carrying capacity. Polybutylene terephthalate housing ensures durability and insulation. Phosphor bronze contacts plated with matt tin over nickel for reliable conductivity. Straight orientation male connector with shrouded design for protection.

Voltage rating of 250V with a maximum operating temperature of 105°C. Wire-to-board connector system and through hole mount type for secure PCB assembly. Minimum operating temperature -40°C for harsh environment compatibility.

Solder termination type for reliable electrical connection.

This Wurth Elektronik WR-MM PCB header is ideal for electrical and electronic equipment manufacturing, prototyping, and repair operations in laboratories, industrial automation, and consumer electronics sectors. Its robust design, precise pitch, and material quality ensure dependable performance in demanding electrical environments.
