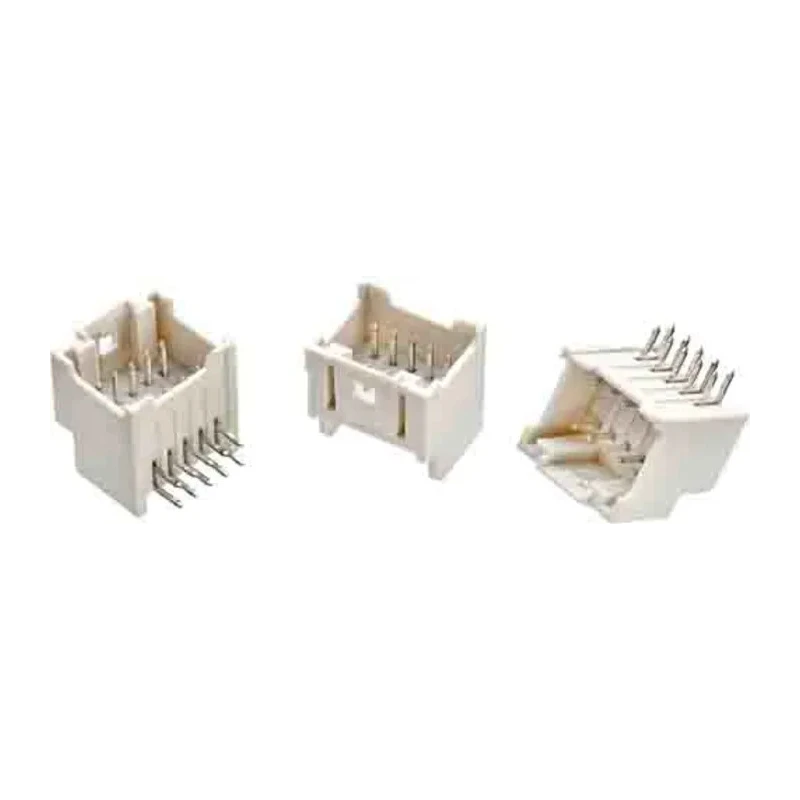

Wurth Elektronik WR-WTB Series Right Angle Through Hole PCB Header 36 Contacts 2 mm Pitch 2 Row Shrouded 62403621722

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik WR-WTB Series Right Angle Through Hole PCB Header 36 Contacts 2 mm Pitch 2 Row Shrouded 62403621722

Name: Wurth Elektronik WR-WTB Series Right Angle Through Hole PCB Header 36 Contacts 2 mm Pitch 2 Row Shrouded 62403621722
Brand: Wurth Elektronik
SKU: 402956
Price: 6.27 USD
Availability: InStock



Category PCB Header Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Voltage	250V
Brand	Wurth Elektronik
Orientation	Right Angle
Current	3A
Mount Type	Through Hole
Housing Material	Polybutylene Terephthalate
Contact Material	Copper Alloy
Series	WR-WTB
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	2
Pitch	2mm
Contact Plating	Tin
Number of Contacts	36
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

Rated for 3A current capacity.
Housing made of durable Polybutylene Terephthalate (PBT) material.
Right angle orientation for PCB mounting flexibility.
Contact material is copper alloy with tin plating.
Designed for through-hole mounting and wire-to-board connector system.
Minimum operating temperature of -25°C and maximum of 85°C.
Solder termination type with male contact gender.
Operating voltage of up to 250V.

Product Description

Wurth Elektronik 62403621722 WR-WTB Series Right Angle Through Hole PCB Header features 36 male contacts arranged in 2 rows with a 2 mm pitch spacing. It incorporates a shrouded design providing mechanical protection and secure mating of connectors. The housing is constructed from Polybutylene Terephthalate (PBT), known for its strong insulation, high heat resistance, and durability, making it suitable for industrial and electronic applications.

The male contacts are made from copper alloy and plated with tin, ensuring reliable electrical connectivity and corrosion resistance. This through-hole PCB header is designed for wire-to-board connector systems, allowing easy assembly and flexibility in PCB layouts with its right angle orientation.

It supports a current rating of 3A and an operating voltage of 250V, suitable for medium-power electronic devices. The temperature range is wide, from -25°C to 85°C, accommodating various operating environments including industrial automation, consumer electronics, and control systems.

The termination type is solder, which provides strong mechanical and electrical connections to the PCB. The shrouded construction helps prevent accidental contact with terminals and ensures proper connector alignment, enhancing overall reliability.

This PCB Header is manufactured in China and conforms to no particular approvals or standards, but follows robust manufacturing quality from Wurth Elektronik. Rated for 3A current capacity. Housing made of Polybutylene Terephthalate (PBT) for insulation and heat resistance.

Right angle male contacts, arranged in 2 rows with 2 mm pitch. Copper alloy contacts plated with tin for corrosion resistance. Through hole mount type with solder termination. Operating voltage up to 250V and temperature range from -25°C to 85°C.

Shrouded design prevents mis-mating and enhances connector durability.

Ideal for electronic component manufacturing, PCB assembly, industrial controls, communications, and other electronics applications. Browse the Wurth Elektronik range at EnvMart for related PCB connectors and header solutions.
