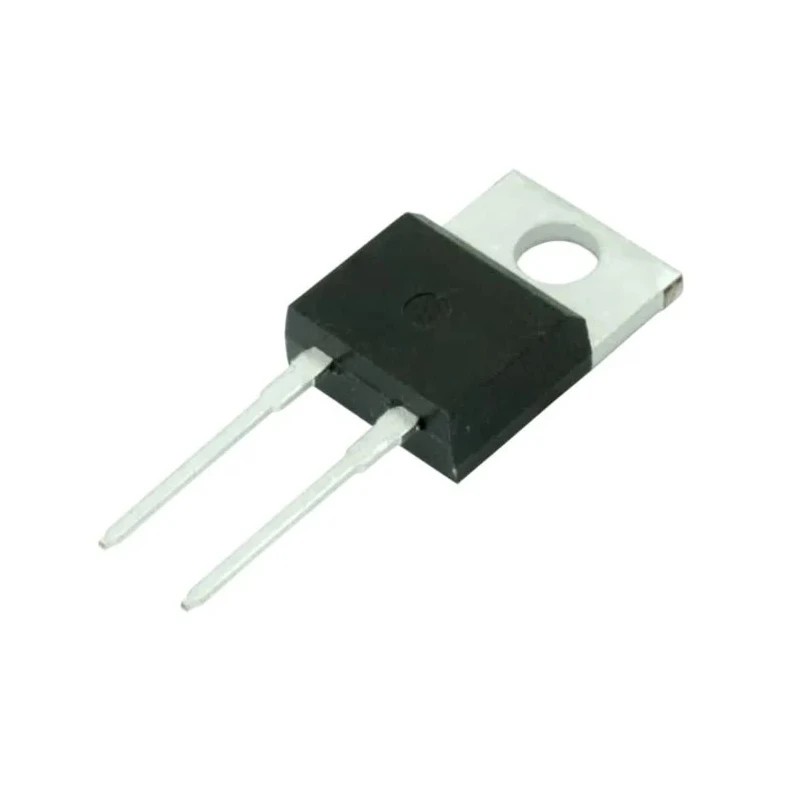

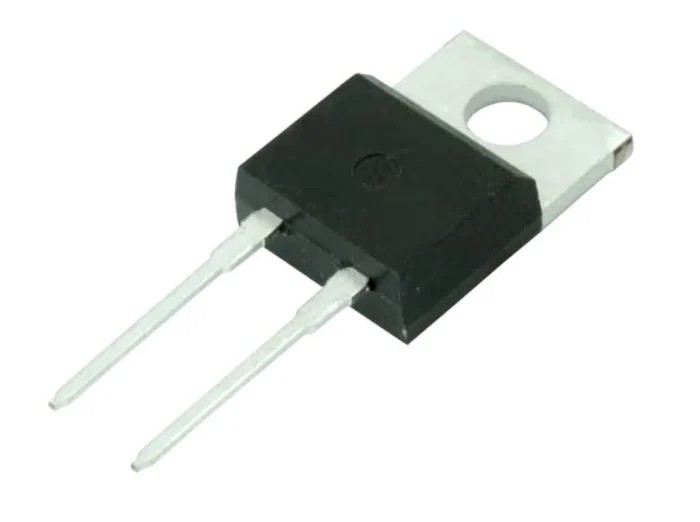

Vishay 650 V 6 A Schottky Diode Single Configuration Through Hole Mount TO-220AC 2L VS-C06ET07T-M3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Model | VS-C06ET07T-M3 |
| Mount Type | Through Hole |
| Series | VSX |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-220AC 2L |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 6A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 4.4μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 39A |
| Maximum Forward Voltage Vf | 1.7V |
Key Features
- Designed as a single diode in a Schottky rectifier configuration.
- Utilizes SiC wide band gap material for high efficiency and ruggedness.
- Has a maximum forward voltage drop of 1.7 V for reduced power dissipation.
- Operates reliably between temperatures of -55°C and 175°C.
- Features a peak non-repetitive forward surge current of 39 A.
- Offers virtually no recovery tail and no switching losses.
- Temperature invariant switching behavior ensures consistent performance.
- Mounts through hole for easy PCB implementation.
Product Description
Vishay VS-C06ET07T-M3 is a high-performance 650 V, 6 A Schottky diode housed in a TO-220AC 2L through-hole package designed for efficient power rectification. This single diode uses SiC merged PIN Schottky technology on a silicon carbide wide band gap substrate, enabling high ruggedness against forward current surges and excellent thermal stability with a maximum operating temperature of 175°C.
Featuring a low maximum forward voltage of 1.7 V, the diode minimizes conduction losses and ensures superior efficiency in power conversion circuits. It has a peak reverse repetitive voltage rating of 650 V and a peak reverse current of just 4.4 μA, making it suitable for high-voltage blocking applications.
The device supports a peak non-repetitive forward surge current of 39 A to withstand transient power spikes often encountered in industrial environments. Its positive VF temperature coefficient allows easy paralleling for higher current capacity. The virtually nonexistent recovery tail results in very low switching losses and temperature-invariant switching behavior, beneficial for fast and efficient operation.
The diode is mounted via through-hole pins, facilitating reliable PCB connections in power supply assemblies, motor drives, renewable energy systems, and HVAC equipment. It is not automotive certified but is robust for general industrial and commercial sectors.
Single Schottky diode configuration with 3 pins. Maximum continuous forward current of 6 A. Maximum operating temperature up to 175°C. Wide ambient temperature range from -55°C to 175°C. Peak reverse repetitive voltage of 650 V.
Low forward voltage drop of 1.7 V for effective power efficiency. Peak non-repetitive forward surge current of 39 A. Through hole mounting in a TO-220AC 2L package.
This diode is well suited for electronic power conversion, rectification, and protection in industrial manufacturing, power supply design, and electronic instrumentation. Explore more electronic semiconductors and Schottky diodes in our Electronics & Electricals category at EnvMart to meet diverse industrial applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature is 175°C.
The maximum continuous forward current is 6 A.
This diode uses through-hole mounting.
The maximum forward voltage drop is 1.7 V.
It can withstand a peak non-repetitive forward surge current of 39 A.
The minimum operating temperature is -55°C.
This model has 3 pins.
It is suitable for power supply assemblies, motor drives, renewable energy systems, and HVAC equipment.
It features a single diode configuration.
It utilizes SiC merged PIN Schottky technology on a silicon carbide substrate for high efficiency.
