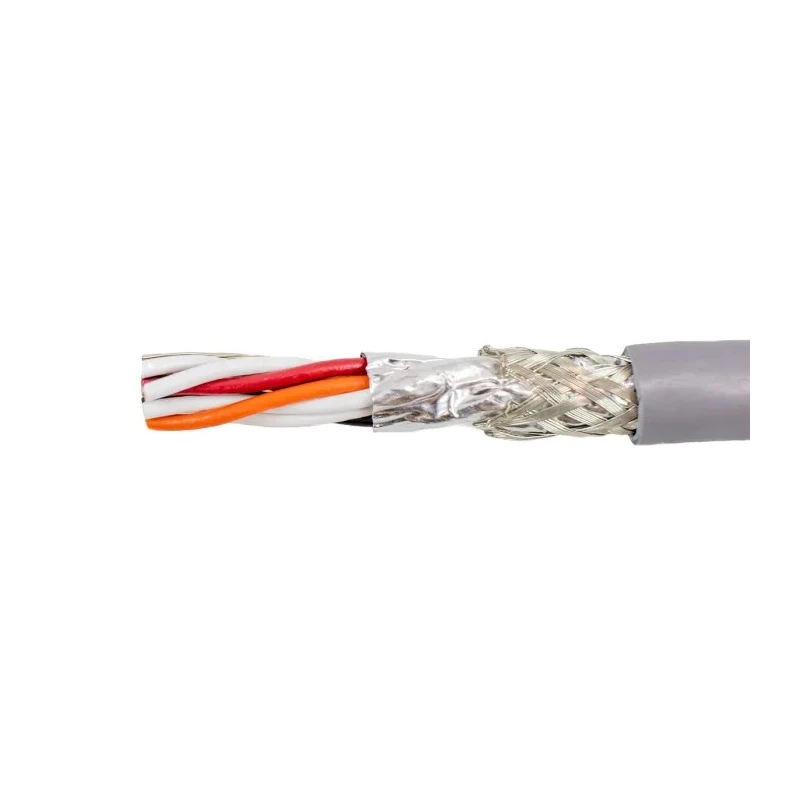

Alpha Wire Alpha Essentials Communication & Control Series Data Cable 13 Pairs 26 Cores 0.08 mm² 305 m Slate 6397 SL001
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 300V |
| Brand | Alpha Wire |
| CROSS SECTIONAL AREA | 0.08mm² |
| Model | 6397 SL001 |
| Cable Length | 305m |
| Series | Alpha Essentials Communication & Control |
| Outside diameter | 9.19mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 26 |
| Conductor Material | Tin Copper Wire |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Polyethylene |
| Standards/Approvals | CSA, CE, UL |
| Jacket Colour | Slate |
| Fire Behaviour | Flammability Test: VW-1 |
| Conductor Type | Copper |
| Number of Strands | 7 |
| Core Strands | 7 x 36AWG |
| Size of Strands | 36AWG |
| Number of Pairs | 13 |
| Fire BehaviourFlammability Test | VW-1 |
| Flammability Test | VW-1 |
Key Features
- The cable features 13 twisted pairs for dense multi-channel signal distribution.
- Conductors are 7-strand tinned copper wire for improved flexibility and conductivity.
- Jacket made of polyethylene with slate coloration provides durability and environmental resistance.
- Shielding with aluminium/mylar tape and 90% coverage tinned-copper braid reduces EMI noise.
- Operating voltage is 300V suitable for low-voltage signaling applications.
- The cable supports a temperature range from -20°C to 75°C, rated VW-1 for flame retardancy.
- Designed for use in factory automation, instrumentation, sensor arrays, and control panel wiring.
- Recommended minimum bend radius is 10 times cable diameter to avoid damage.
Product Description
Alpha Wire 6397 SL001 Alpha Essentials Communication & Control Series Data Cable is a high-quality multi-pair cable rated at 300V for industrial control and signal transmission applications. This cable contains 13 twisted pairs, amounting to 26 cores, with each conductor having a cross-sectional area of 0.08 mm² composed of 7 strands of tinned copper wire rated at 36AWG for flexibility and conductivity.
The cable features a slate-coloured polyethylene jacket that offers mechanical protection and environmental resistance. Shielding includes aluminium/mylar tape with a drain conductor and a tinned-copper braid with a 90% minimum coverage for excellent EMI noise mitigation in electrically noisy environments.
This product meets key industry standards including CSA, CE, and UL and is flame retardant with a VW-1 rating. It operates reliably in temperature ranges from -20°C to +75°C.
Typical use cases include factory automation signal cabling between controllers and I/O devices, multi-channel instrumentation, sensor arrays, and internal wiring in control panels requiring compact pair counts. It is also suitable for building management systems with multiple discrete circuits.
Installation guidelines include maintaining a minimum bend radius of 10 times the cable diameter and limiting pull tension to avoid damage to conductors and jacket. The cable is available in continuous lengths of 100 m, 305 m (1000 ft), and 500 m on reels, facilitating long installation runs.
The cable provides dense multi-channel distribution with 13 twisted pairs. Flexibility and conductivity are enhanced by 7-strand tinned copper conductors. Shielding reduces electromagnetic interference and improves signal integrity.
Polyethylene jacket offers temperature resistance and mechanical durability. Compliance with CSA, CE, and UL standards guarantees safety and quality. VW-1 flame retardant rating ensures fire safety in routed runs.
This Alpha Wire data cable is ideal for industrial, automation, and electrical applications requiring reliable signal transmission and organized multi-signal routing. Explore more in the Data Cable category at EnvMart for related communication and control wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for an operating voltage of 300V, making it suitable for low-voltage signaling applications.
It operates reliably within a temperature range of -20°C to +75°C.
This data cable features a total of 26 cores, organized into 13 twisted pairs.
The conductors are made of 7-strand tinned copper wire, which enhances flexibility and conductivity.
The outside diameter of this cable is 9.19 mm.
This cable meets key industry standards including CSA, CE, and UL, ensuring safety and quality.
The cable features a polyethylene jacket with a slate coloration, providing durability and environmental resistance.
The recommended minimum bend radius is 10 times the cable diameter to avoid damage during installation.
It has a VW-1 flammability rating, indicating it meets specific fire safety standards.
It is designed for use in factory automation, instrumentation, sensor arrays, and control panel wiring.
This model is available in a length of 305 meters.
The cable is shielded with aluminium/mylar tape and a tinned-copper braid with 90% minimum coverage to reduce EMI noise.
