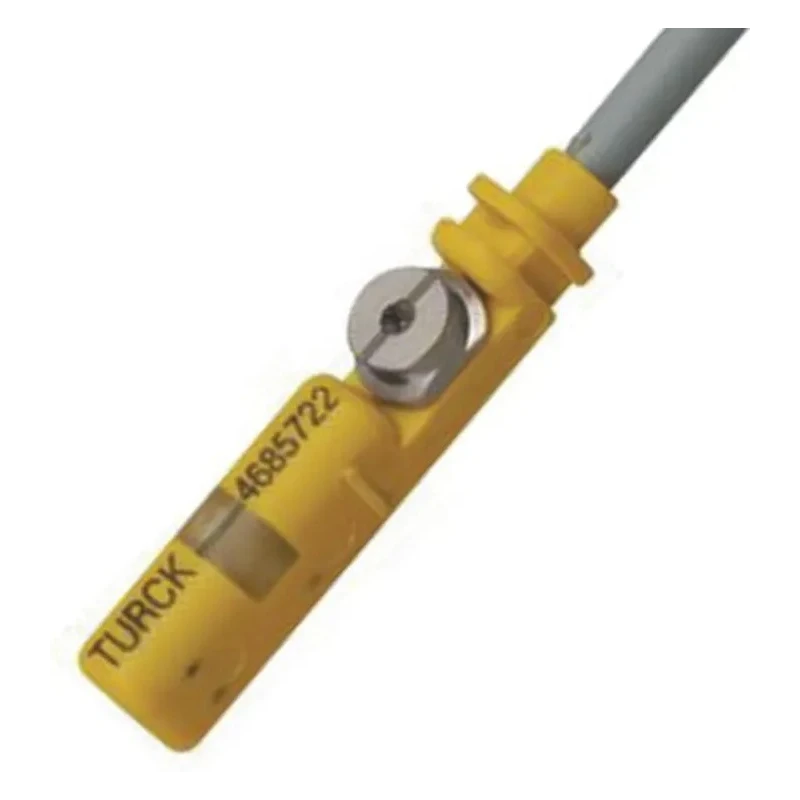

Turck Block Inductive Proximity Sensor NPN Output 30V DC 150mA IP67 BIM-UNT-AN6X-0.3-PSG3M
Specifications
| Country of Origin | China |
|---|---|
| Brand | Turck |
| Length | 28mm |
| Model | BIM-UNT-AN6X-0.3-PSG3M |
| Depth | 6mm |
| IP Rating | IP67 |
| Mount Type | Non-Flush |
| Housing Material | Polypropylene |
| Output type | NPN |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -25°C |
| Switching Current | 150mA |
| Terminal type | M8 |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Unshielded |
| Maximum Switching Frequency | 1kHz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Magnet Equipped Piston |
| Turck Block Proximity Sensor, 10 → 30 V dcBrand | Turck |
Key Features
- The sensor features a compact 28mm block body style suitable for non-flush mount installation.
- It operates with a maximum supply voltage of 30 V DC and supports a switching current up to 150 mA.
- Constructed with polypropylene housing for IP67 rating, ensuring protection against dust and water ingress.
- Operates reliably in temperatures ranging from -25°C to 70°C with excellent disturbance immunity compliant with EN60947-5-2 and EN 61000-4-6 standards.
- Incorporates overload, short circuit, and reverse polarity protection along with an LED status display for easy monitoring.
- Detects magnet-equipped pistons with unshielded sensing face and supports switching frequencies up to 1 kHz.
- Terminal connection via M8 connector enables quick and secure wiring.
Product Description
Turck BIM-UNT-AN6X-0.3-PSG3M block Inductive Proximity Sensor is engineered for high precision and robust performance in industrial automation and control applications. Featuring a compact 28mm block body made of durable polypropylene, this sensor delivers reliable detection of magnet-equipped pistons in pneumatic cylinder systems.
Its IP67 rated housing offers dust-tight and water-resistant protection, ensuring long-lasting operation even in harsh factory environments. The sensor supports a maximum supply voltage of 30 V DC and a maximum switching current of 150 mA for versatile control signal interfacing.
Designed for non-flush mounting, the sensor includes an M8 terminal connection for easy integration. It achieves a maximum switching frequency of 1 kHz and operates safely within a temperature range of -25°C to 70°C.
Compliance with EN60947-5-2 and EN 61000-4-6 standards guarantees excellent immunity to electrical disturbances and secure operation in noisy industrial settings. Built-in overload, short circuit, and reverse polarity protections increase reliability and reduce downtime.
An integrated LED status display allows quick visual confirmation of sensor state for efficient troubleshooting and maintenance. This sensor is ideal for automated manufacturing, packaging, and processing lines where accurate position detection contributes to system productivity and safety.
The sensor features a compact 28mm block body style suitable for non-flush mount installation. It operates with a maximum supply voltage of 30 V DC and supports a switching current up to 150 mA. Constructed with polypropylene housing for IP67 rating, ensuring protection against dust and water ingress.
Operates reliably in temperatures ranging from -25°C to 70°C with excellent disturbance immunity compliant with EN60947-5-2 and EN 61000-4-6 standards. Incorporates overload, short circuit, and reverse polarity protection along with an LED status display for easy monitoring.
Detects magnet-equipped pistons with unshielded sensing face and supports switching frequencies up to 1 kHz. Terminal connection via M8 connector enables quick and secure wiring. Explore the comprehensive range of industrial sensors at EnvMart for solutions tailored to automation, manufacturing, and control applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 30 V DC.
It supports a maximum switching current of 150 mA.
This unit operates reliably in temperatures ranging from -25°C to 70°C.
The sensor is constructed with polypropylene housing, providing durability and protection.
It has an IP67 rating, ensuring protection against dust and water ingress.
It features an M8 terminal connection for quick and secure wiring.
This model has an NPN output type.
The maximum switching frequency is 1 kHz.
It is designed to detect magnet-equipped pistons.
It incorporates overload, short circuit, and reverse polarity protection for enhanced reliability.
It complies with EN60947-5-2 and EN 61000-4-6 standards.
The sensor features a compact block body style suitable for non-flush mounting.
