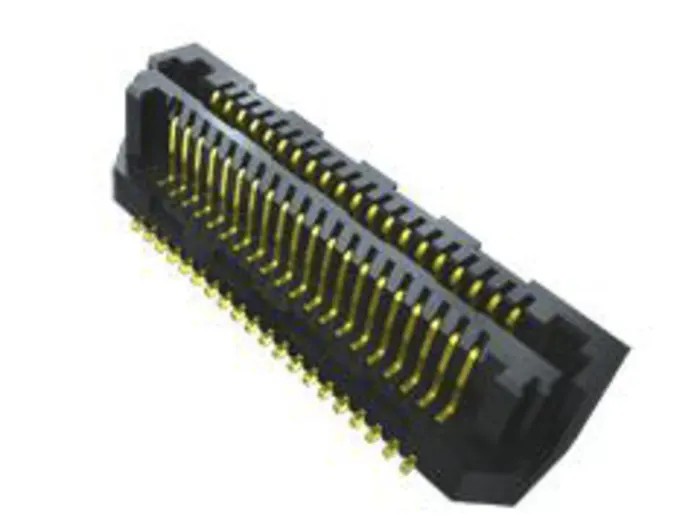

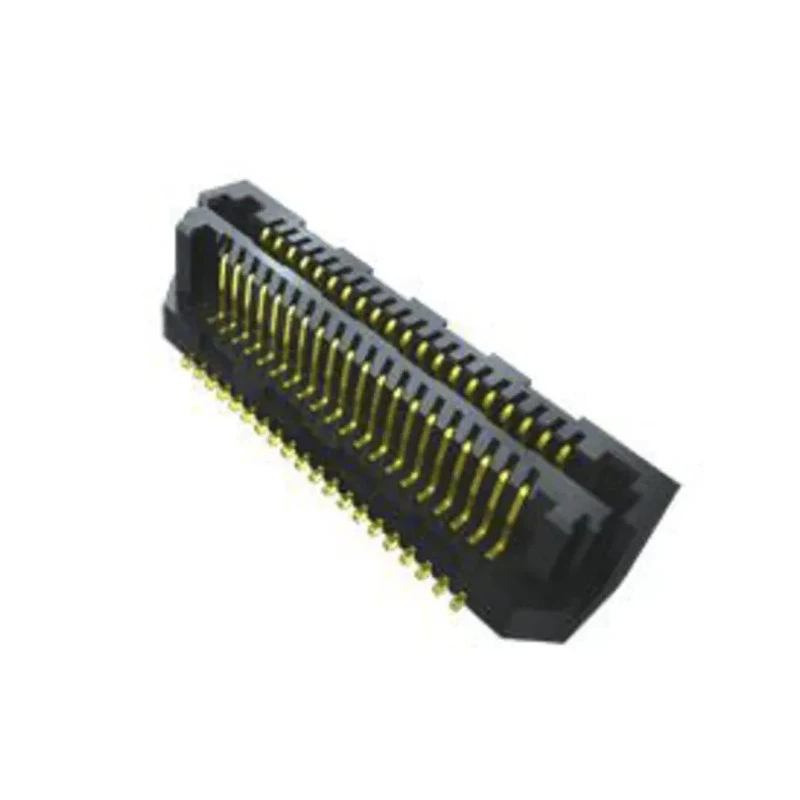

Samtec LSS Series Straight Surface PCB Header 20 Contacts 0.635 mm Pitch 2 Row Shrouded LSS-110-02-F-DV-A

Samtec LSS-110-02-F-DV-A is a high-quality PCB header from the LSS Series, designed for straight surface mounting applications. With 20 contacts arranged in two rows and a 0.635 mm pitch, this shrouded connector offers durable and reliable connections for board-to-board interfaces. The housing is constructed from liquid crystal polymer, which provides excellent thermal stability and mechanical integrity, making it suitable for demanding industrial and electronic environments.

The connector features phosphor bronze contacts plated with gold to enhance conductivity and resist corrosion, supporting a current rating of 1.7 A and voltage ratings of up to 300 and 424V AC. Its male contact gender and solder termination type are optimized for secure and stable surface mount PCB assembly.

Operating reliably in temperatures from -55°C to 125°C, this PCB header is designed for robust performance across a wide range of applications. The shrouded construction prevents damage during handling and contributes to the connector's mating and unmating forces, which are approximately 4 to 6 times greater than similar micro pitch connectors, ensuring connection stability.

Applications include industrial equipment, power and control connectors, consumer electronics, and any scenario requiring compact, high-density board connections with enhanced durability. The self-mating system helps reduce inventory costs while maintaining up to 100 I/O connections in a compact footprint.

The connector supports a current rating of 1.7 A for efficient signal transmission. Its housing is made from liquid crystal polymer, providing durability and heat resistance. Gold-plated phosphor bronze contacts ensure excellent conductivity and corrosion resistance.

Operating temperature ranges from -55°C to 125°C for versatile environmental use. Designed for solder termination with a male contact gender, optimized for surface mount assembly. Voltage rating supports up to 300 and 424V AC for safe electrical performance.

Includes a self-mating system that reduces inventory and assembly complexity. The shrouded design increases connector robustness and safeguards contacts during handling. Ideal for industrial, electronics manufacturing, and PCB assembly applications requiring precise and reliable connectors.

Manufactured in Costa Rica, ensuring quality compliance and consistency. Browse the Electronics & Electricals category on EnvMart for more PCB Header and connector solutions from trusted brands like Samtec.
