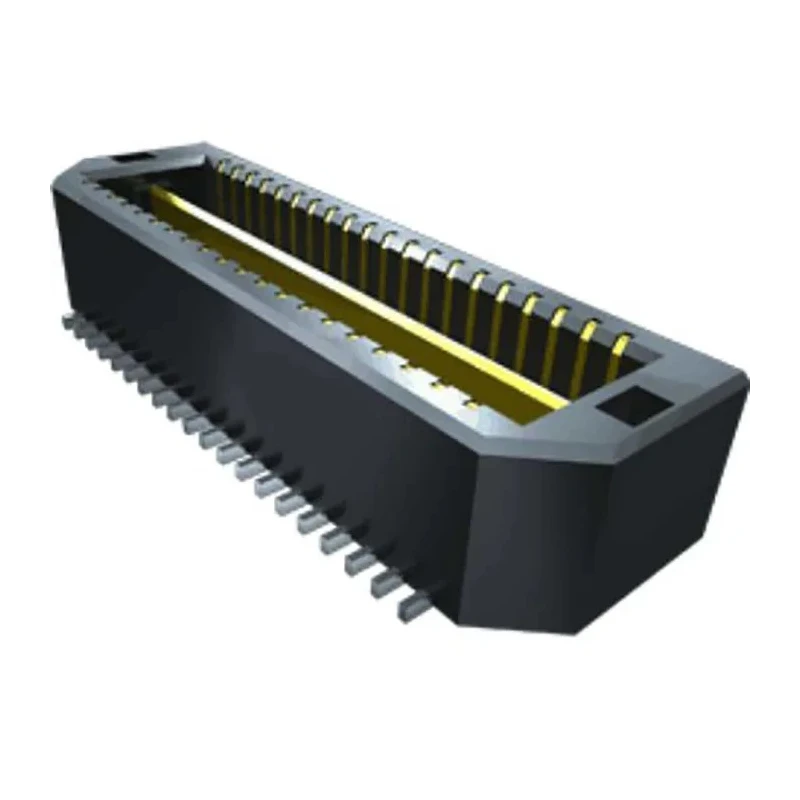

Samtec QTE Series Right Angle Surface Mount PCB Header, 40 Contacts, 0.8 mm Pitch, 2 Row, Shrouded QTE-020-01-F-D-A-K-TR

Free Delivery in India | Lowest Global Shipping Charges

Samtec QTE Series Right Angle Surface Mount PCB Header, 40 Contacts, 0.8 mm Pitch, 2 Row, Shrouded QTE-020-01-F-D-A-K-TR

Name: Samtec QTE Series Right Angle Surface Mount PCB Header, 40 Contacts, 0.8 mm Pitch, 2 Row, Shrouded QTE-020-01-F-D-A-K-TR
Brand: Samtec
SKU: 402661
Price: 6.17 USD
Availability: InStock



Category PCB Header Brand Samtec Condition New

Specifications

Country of Origin	India
Voltage	225V
Brand	Samtec
Orientation	Right Angle
Current	2A
Model	QTE-020-01-F-D-A-K-TR
Mount Type	Surface
Housing Material	Liquid Crystal Polymer
Contact Material	Phosphor Bronze
Series	QTE
Termination Type	Solder
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-55°C
Number of Rows	2
Pitch	0.8mm
Contact Plating	Gold
Number of Contacts	40
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Board-to-Board

Key Features

This PCB header is constructed with Liquid Crystal Polymer housing for durability.
It features 40 male phosphor bronze contacts plated with gold for reliable connectivity.
The 2-row configuration improves circuit board design flexibility.
It supports a maximum current of 2A and a voltage rating of 225V.
The header is shrouded to protect contacts and ensure stable connections.
Operating temperature ranges from -55°C to 125°C, suitable for various environments.
Surface mount type allows for easy PCB assembly and solder termination.
Includes features such as board guide, ground bus (plane), and pick and place compatibility.

Product Description

Samtec presents the QTE-020-01-F-D-A-K-TR, a high-quality right angle surface mount PCB header featuring 40 male contacts with a 0.8 mm pitch and two rows. Manufactured with Liquid Crystal Polymer housing and phosphor bronze contacts plated in gold, it delivers reliable board-to-board connections for electronic devices. This connector supports 2A current and voltage up to 225V, making it suitable for demanding industrial, commercial, and electronic applications.

The shrouded design safeguards the contact pins, enhancing connection stability and protection against damage. The PCB header is optimized for surface mounting, enabling efficient soldering and automated assembly processes including pick and place compatibility. It operates across a broad temperature spectrum from -55°C to 125°C, ensuring performance in diverse environmental conditions.

Additional features include an integrated board guide and ground bus to improve signal integrity and mechanical robustness. This reliable PCB connector is ideal for electronic components, power connectors, custom circuit boards, and other manufacturing and laboratory applications.

This PCB header is constructed with Liquid Crystal Polymer housing for durability. It features 40 male phosphor bronze contacts plated with gold for reliable connectivity. The 2-row configuration improves circuit board design flexibility.

It supports a maximum current of 2A and a voltage rating of 225V. The header is shrouded to protect contacts and ensure stable connections. Operating temperature ranges from -55°C to 125°C, suitable for various environments.

Surface mount type allows for easy PCB assembly and solder termination. Includes features such as board guide, ground bus (plane), and pick and place compatibility.

Samtec PCB Headers are trusted for reliability in electronic manufacturing, industrial equipment, telecommunications, and automotive systems. Explore more from Samtec and the Electronics & Electricals category at EnvMart for quality components and better system integration.
