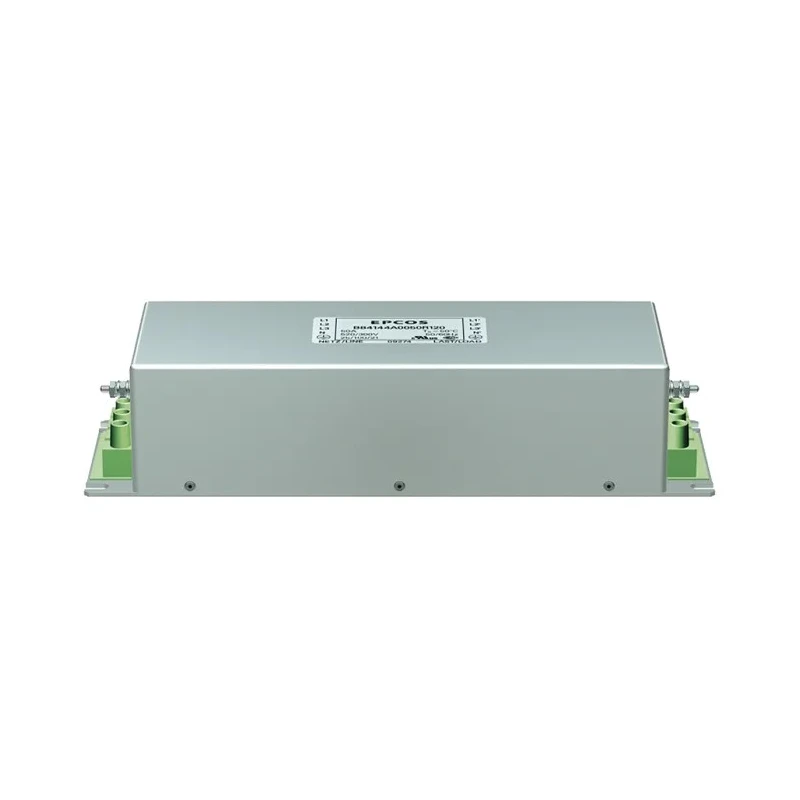

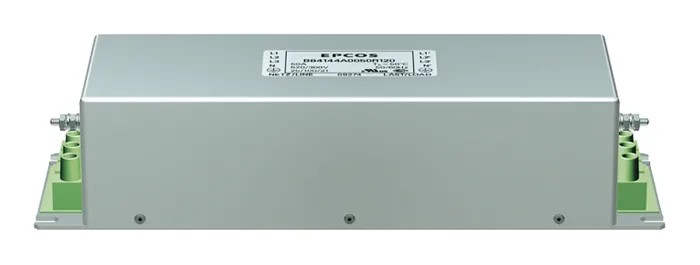

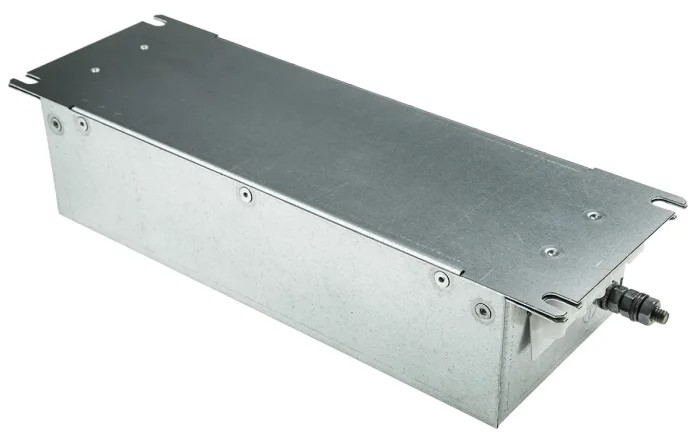

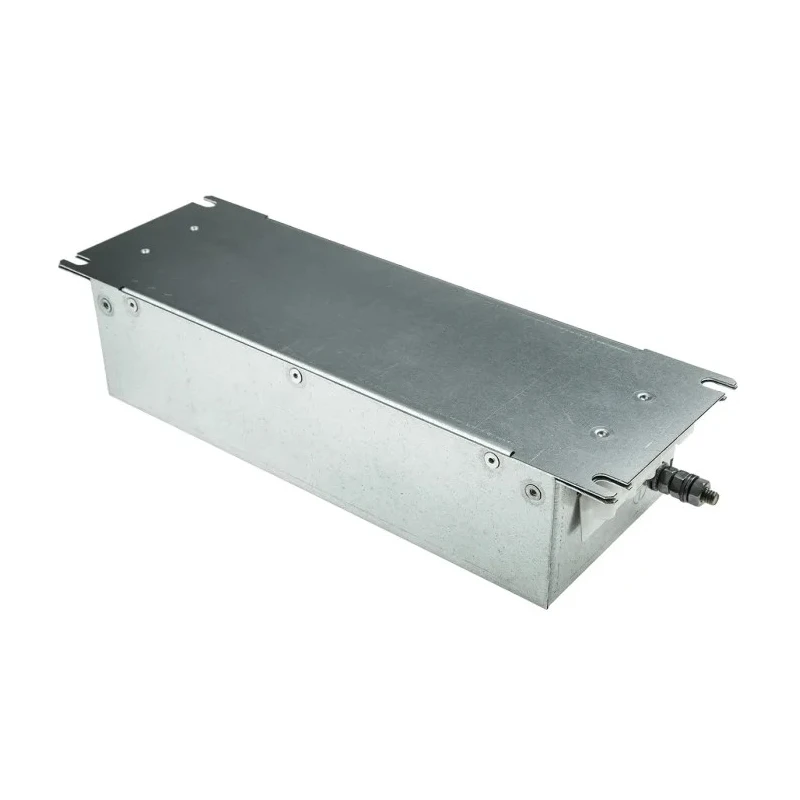

TDK 3 Phase Flange EMC Filter 36 A 520 V AC 50 Hz, 60 Hz, Screw Termination B84144A0036R120

Free Delivery in India | Lowest Global Shipping Charges

TDK 3 Phase Flange EMC Filter 36 A 520 V AC 50 Hz, 60 Hz, Screw Termination B84144A0036R120



Category EMC Filter Brand TDK Condition New

Specifications

Country of Origin	China
Brand	TDK
Height	60mm
Length	90mm
Model	B84144A0036R120
Depth	272mm
Packaging	Box
Mount Type	Flange
Operating Frequency	50, 60Hz
Series	B84144A*R120
Maximum Operating Temperature	100°C
Number Of Stages	1
Resistance	2.7mΩ
Minimum Operating Temperature	-25°C
Maximum Current	36A
Number of Phases	3
Leakage Current	13mA
Maximum Voltage	520V ac
Standards/Approvals	UL1283
Termination Style	Screw
Applications include	Frequency converters for motor drives (e.g. elevators, pumps, conveyor systems and HVAC systems), Power supplies and Industrial applications
TDK, B84144A*R000 36 A 440V ac 50Hz, 60 Hz, Flange EMC Filter, Tab 3 PhaseBrand	TDK

Key Features

This filter features a robust flange mount for secure installation.
Suitable for frequency converters in motor drives including elevators, pumps, conveyors, and HVAC systems.
Constructed with a metal case potted in polyurethane (UL 94 V-0) for durability and safety.
Designed to operate in harsh industrial environments with temperature tolerance from -25°C to 100°C.
Ensures low leakage current of 13 mA enhancing electrical safety.
Compact dimensions of 90 mm length, 60 mm height, and 272 mm depth optimize space usage.
Compliance with standards EN 133200, UL 1283, and CSA C22.2 No.8 assures reliable performance.
Ideal for industrial power supplies and EMC noise suppression applications.

Product Description

TDK B84144A0036R120 is a high-performance 3 phase flange EMC filter designed for industrial and commercial electronic applications. This filter operates at a maximum current of 36 A and maximum voltage of 520 V AC, suitable for frequencies of 50 Hz and 60 Hz. Its durable metal casing is potted in polyurethane resin rated UL 94 V-0, providing excellent insulation and protection against environmental conditions.

The product is engineered for use with frequency converters in motor drives, including applications such as elevators, pumps, conveyor systems, and HVAC installations. Its flange mounting and screw termination ensure easy and stable installation in complex industrial setups.

Operating temperature range from -25°C to 100°C makes it reliable in varying harsh environments. With low leakage current of 13 mA, it ensures safety and compliance with electrical standards.

Exact dimensions are 90 mm in length, 60 mm in height, and 272 mm in depth, making it a compact solution without compromising performance. Resistance is rated at 2.7 mΩ ensuring minimal voltage loss and high efficiency.

This EMC Filter complies with multiple industry standards including EN 133200, UL 1283, and CSA C22.2 No.8, and UL and cUL approvals are pending. It is an optimal solution for reducing electromagnetic interference in power supplies and industrial applications.

This filter is recommended for industrial, manufacturing, HVAC, and power supply equipment environments. Designed for easy installation and reliable long-term operation under full load and in presence of long motor cables.
