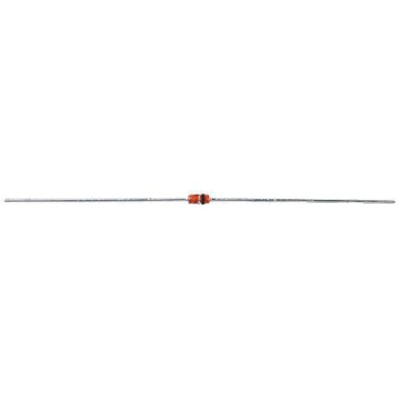

Vishay 1.27 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 TZX2V7B-TR

Free Delivery in India | Lowest Global Shipping Charges

Vishay 1.27 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 TZX2V7B-TR

Name: Vishay 1.27 V 500 mW Single Zener Diode Through Hole 2-Pin SOD-27 TZX2V7B-TR
Brand: Vishay
SKU: 395706
Price: 0.04 USD
Availability: InStock



Category Zener Diode Brand Vishay Condition New

Specifications

Country of Origin	China
Brand	Vishay
Length	3.9mm
Model	TZX2V7B-TR
Mount Type	Through Hole
Series	TZX
Maximum Operating Temperature	175°C
Package Type	SOD-27
Minimum Operating Temperature	-65°C
Standards/Approvals	RoHS
Pin Count	2
Number of Elements per Chip	1
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	500mW
Diode Configuration	Single
Test Current It	5mA
Maximum Reverse Leakage Current	5μA
Nominal Zener Voltage Vz	2.7V
Zener Type	Voltage Regulator
Maximum Zener Impedance	100Ω

Key Features

Offers a maximum power dissipation of 500 mW for reliable voltage regulation.
Nominal Zener voltage is 2.7 V with ±4% voltage tolerance.
Manufactured with high stability and low noise for precision applications.
Features a sharp reverse characteristic and low reverse leakage current of 5 μA.
Designed for through-hole mounting with a compact 3.9 mm length SOD-27 package.
Complies with RoHS standards and automotive AEC-Q101 certification.
Operates reliably from -65°C to 175°C to suit varied industrial environments.
Test current is 5 mA, suitable for sensitive electronic circuits.

Product Description

Vishay TZX2V7B-TR is a single Zener diode engineered for voltage regulation with a nominal voltage of 2.7 V and a maximum power dissipation of 500 mW. It features a 2-pin through-hole SOD-27 package measuring 3.9 mm in length, which makes it ideal for inclusion in compact designs requiring stable voltage regulation.

This diode exhibits very sharp reverse characteristic with a low reverse leakage current of only 5 μA, ensuring minimal loss and noise in sensitive electronic circuits. Its ±4% voltage tolerance guarantees precision in applications requiring voltage stabilization.

Designed for robust industrial and automotive applications, it is compliant with RoHS environmental standards and AEC-Q101 automotive qualification, making it suitable for high-reliability systems. The operating temperature range from -65°C to 175°C expands its usability across harsh environments.

The diode is tested at a current of 5 mA and features a maximal Zener impedance of 100 Ω, promoting efficient and consistent voltage regulation in power supply and protection circuits.

Use cases include electronic components assembly, power regulation in automotive electronics, instrumentation, industrial control systems, and laboratory equipment. Its through-hole mount type permits easy integration into printed circuit boards.

Offers a maximum power dissipation of 500 mW for reliable voltage regulation. Nominal Zener voltage is 2.7 V with ±4% voltage tolerance. Manufactured with high stability and low noise for precision applications. Features a sharp reverse characteristic and low reverse leakage current of 5 μA.

Designed for through-hole mounting with a compact 3.9 mm length SOD-27 package. Complies with RoHS standards and automotive AEC-Q101 certification. Operates reliably from -65°C to 175°C to suit varied industrial environments.

Test current is 5 mA, suitable for sensitive electronic circuits. Maximum Zener impedance is 100 Ω ensuring stable voltage regulation. Explore more electronic semiconductors and Zener Diode options from Vishay on EnvMart for industrial, automotive, and laboratory applications.
