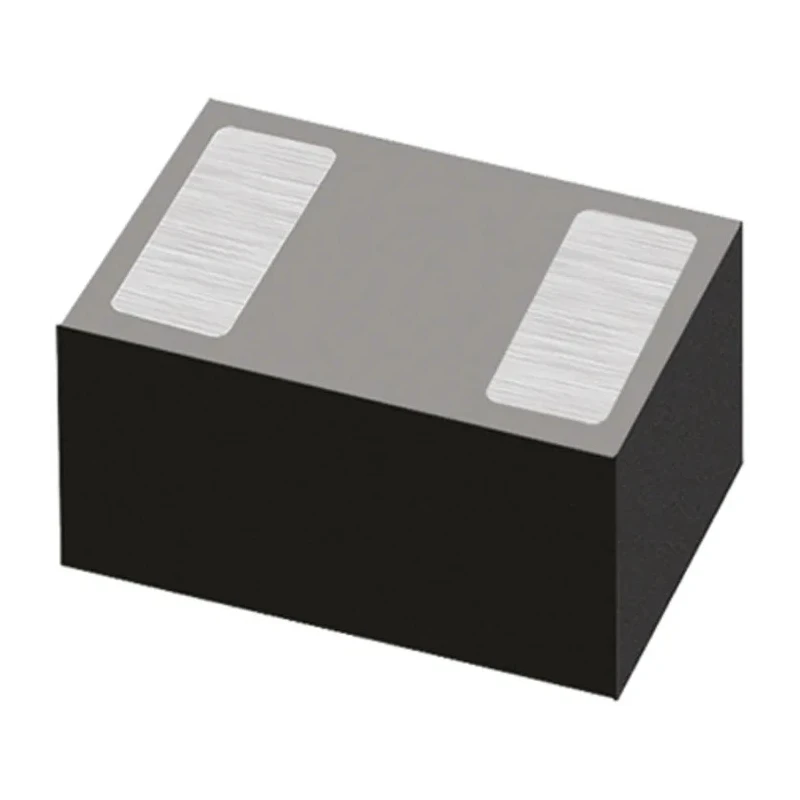

DiodesZetex General Purpose 3.6 V 250 mW Zener Diode Surface Mount 2-Pin X1-DFN BZT52C3V6LP-7
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 0.53mm |
| Length | 1.08mm |
| Model | BZT52C3V6LP-7 |
| Mount Type | Surface |
| Series | BZT52C3V6LP |
| Maximum Operating Temperature | 150°C |
| Package Type | X1-DFN |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Automotive Standard | AEC-Q101 |
| Maximum Power Dissipation Pd | 250mW |
| Diode Configuration | Single |
| Test Current It | 5mA |
| Maximum Reverse Leakage Current | 5μA |
| Nominal Zener Voltage Vz | 3.6V |
| Zener Type | General Purpose |
| Maximum Zener Impedance | 90Ω |
| Typical Voltage Temperature Coefficient | -3.5mV/°C |
Key Features
- This diode has a tight Zener voltage tolerance of ±6 percent.
- It features a compact X1-DFN 2-pin surface mount package for easy PCB integration.
- The device offers a maximum power dissipation of 250 mW at a test current of 5 mA.
- Operating temperature ranges from -65°C to 150°C, suitable for automotive and industrial environments.
- The diode meets AEC-Q101 automotive standard for reliability and quality assurance.
- It has a maximum Zener impedance of 90 ohms and a reverse leakage current no greater than 5 microamperes.
- Typical voltage temperature coefficient is -3.5 mV/°C, allowing stable voltage regulation under temperature variations.
- Its small dimensions (1.08 mm length, 0.53 mm height) make it ideal for compact electronic assemblies.
Product Description
DiodesZetex BZT52C3V6LP-7 is a General Purpose Zener Diode designed for surface mount applications requiring precise voltage regulation. This device offers a nominal Zener voltage of 3.6 volts and a maximum power dissipation of 250 milliwatts, suitable for protecting electronic circuits from voltage spikes and ensuring stable operation.
The diode utilizes a compact X1-DFN package with 2 pins, optimizing board space and facilitating automated assembly technologies. It operates reliably within a wide temperature range of -65°C to 150°C, meeting stringent automotive quality standards including AEC-Q101, making it suitable for automotive electronics, industrial controls, and other harsh environment applications.
The BZT52C3V6LP series features a low maximum reverse leakage current of 5 microamperes and a maximum Zener impedance of 90 ohms, enabling efficient voltage clamping with minimal power loss. Its typical voltage temperature coefficient of -3.5 mV per degree Celsius provides stable voltage performance across temperature fluctuations.
With its precise ±6% voltage tolerance and robust construction, this Zener diode is ideal for use in power supplies, voltage reference circuits, and protective circuits in industrial, automotive, and consumer electronics sectors.
This diode has a tight Zener voltage tolerance of ±6 percent. Compact X1-DFN 2-pin surface mount package for space-saving PCB design. Maximum power dissipation rated at 250 mW with a test current of 5 mA. Complies with AEC-Q101 automotive standard for enhanced reliability.
Operating temperature from -65°C to 150°C for diverse application environments. Low maximum reverse leakage current of 5 μA ensuring efficiency. Voltage temperature coefficient of -3.5 mV/°C ensures voltage stability. Device dimensions enable use in compact electronic assemblies.
This Zener diode is widely used in industrial machinery controls, automotive electronics, laboratory instruments, and power management systems. Its quality and specifications align with the requirements for semiconductor components in precision voltage regulation and protection applications.
Explore more semiconductor products and Zener Diode options in the electronics & electricals category on EnvMart for reliable and high-performance components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The nominal Zener voltage of this diode is 3.6 volts.
This model has a maximum power dissipation of 250 milliwatts at a test current of 5 mA.
The operating temperature range for this diode is from -65°C to 150°C.
The maximum reverse leakage current for this diode is 5 microamperes.
It comes in a compact X1-DFN 2-pin surface mount package, which is suitable for space-saving PCB designs.
The maximum Zener impedance is 90 ohms.
Yes, it complies with the AEC-Q101 automotive standard for reliability and quality assurance.
The typical voltage temperature coefficient is -3.5 mV/°C, which helps maintain stable voltage regulation across temperature variations.
This diode has 2 pins.
The diode configuration is single, designed for general purpose applications.
The height of this diode is 0.53 mm.
The length of this model is 1.08 mm.
