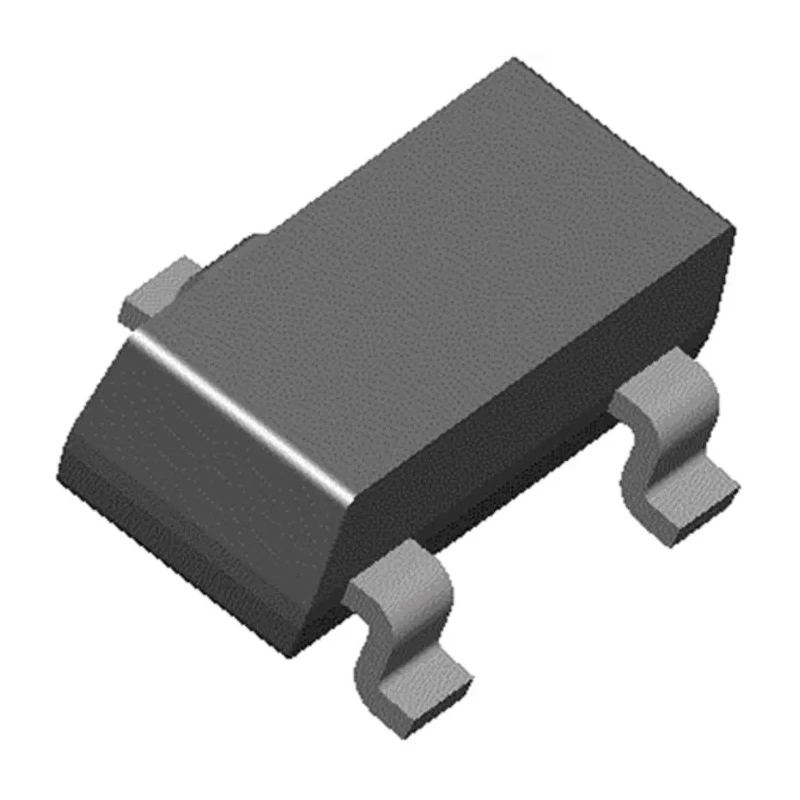

Taiwan Semiconductor Surface Mount Hall Effect Sensor 2.5 V to 24 V Supply, SOT-23, 3-Pin TSH188CX RFG
Specifications
| Country of Origin | Taiwan |
|---|---|
| Brand | Taiwan Semiconductor |
| Response time | 0.45μs |
| Height | 1.1mm |
| Length | 2.9mm |
| Model | TSH188CX RFG |
| Technology | Chopper-Stabilised DMOS |
| Sensor Type | Hall Effect Sensors |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | TSH188 |
| Maximum Operating Temperature | 125°C |
| Package Type | SOT-23 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 3 |
| Maximum Supply Voltage | 24V |
| Minimum Supply Voltage | 2.5V |
| Supply Current | 5mA |
| Magnetic Type | Bipolar |
| Maximum Frequency Response | 69kHz |
Key Features
- Operates with a minimum supply voltage of 2.5 V and maximum of 24 V.
- Features chopper-stabilised DMOS technology for high precision.
- Compact SOT-23 surface mount package with dimensions 2.9mm length, 1.6mm width, and 1.1mm height.
- High frequency response up to 69 kHz and fast response time of 0.45 microseconds.
- Wide operating temperature range from -40°C to 125°C for reliability in harsh environments.
- Bipolar magnetic type sensor suitable for magnetic field detection applications.
- Low supply current of 5 mA enabling efficient power consumption.
- 3-pin design facilitating straightforward PCB integration.
Product Description
Taiwan Semiconductor TSH188CX RFG is a surface mount Hall Effect sensor designed for precise magnetic field detection with a supply voltage range from 2.5 V up to 24 V. It comes in a compact 3-pin SOT-23 package measuring 2.9 mm in length, 1.6 mm in width, and 1.1 mm in height, suitable for space-constrained PCB layouts.
This sensor utilizes chopper-stabilised DMOS technology which ensures stability and accuracy over temperature variations and time. It supports a maximum frequency response of 69 kHz and a fast response time of 0.45 microseconds, making it ideal for switching and sensing applications that require quick and reliable magnetic detection.
The bipolar magnetic type enables it to detect both north and south magnetic poles effectively. Its low supply current of 5 mA allows for low power consumption in battery-powered or energy-sensitive devices.
Operating temperature ranges from -40°C to 125°C, enabling usage in industrial, automotive, and environmental conditions requiring robust performance.
This sensor is commonly used in automotive sensing, position sensing, speed detection, proximity sensing, and other applications in industrial automation, robotics, and consumer electronics.
Minimum operating voltage of 2.5 V and maximum supply voltage of 24 V. Surface mount SOT-23 package perfect for automated assembly. Compact size supports miniaturized electronics designs. Stable performance due to chopper-stabilised DMOS technology.
Wide temperature tolerance for demanding environments.
Choose the Taiwan Semiconductor TSH188CX RFG Hall Effect Sensor for reliable and efficient magnetic sensing in your electronic and industrial applications. Explore EnvMart categories for additional semiconductor sensors and related electronic components ideal for your design requirements.
