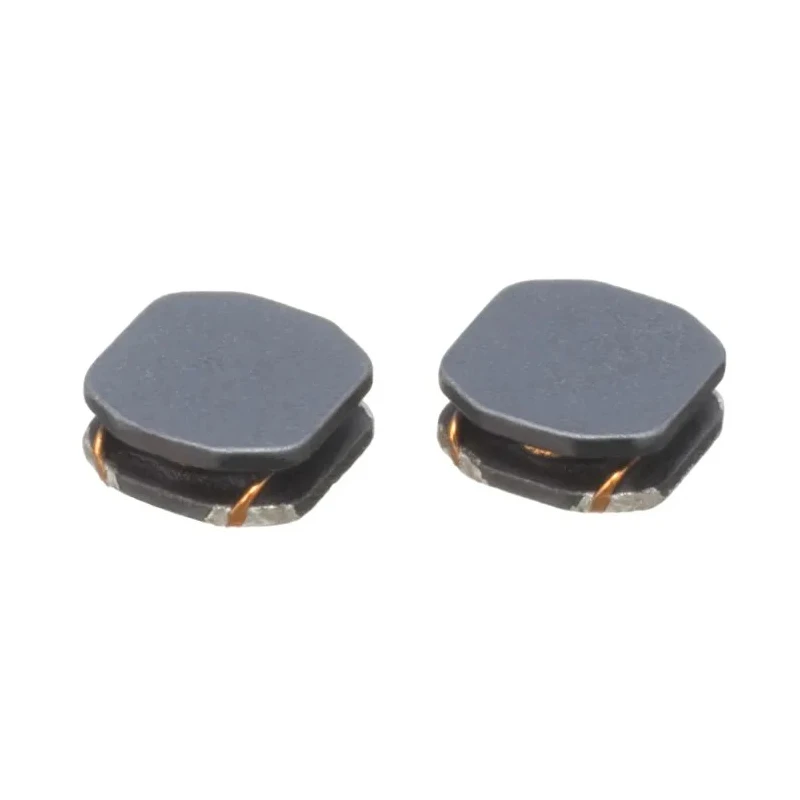

TDK VLS-E 3010 Shielded Wirewound Surface Mount Inductor with Ferrite Core 10 μH ±20 % 800 mA Idc VLS3010ET-100M
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 1mm |
| Length | 3mm |
| Model | VLS3010ET-100M |
| Depth | 3mm |
| Packaging | Tape & Reel |
| Series | VLS-E |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Package/Case | 3010 |
| Maximum DC Current | 800mA |
| Pin Count | 2 |
| Maximum DC Resistance | 468mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Shielded |
Key Features
- The inductor is shielded, enhancing magnetic compatibility and reducing interference.
- Constructed with a ferrite core to ensure efficient magnetic flux concentration.
- Maximum DC current rating of 800 mA supports robust circuit operation.
- Compact 3010 package case measures 3 mm length and 1 mm height for high-density mounting.
- Suitable for consumer electronics like smartphones, tablets, and HDDs due to low profile design.
- Terminations are soldered for reliability in surface mount assembly.
- Operating temperature range from -40°C to 105°C supports varied industrial environments.
- RoHS compliant, adhering to environmental and safety standards.
Product Description
TDK VLS3010ET-100M shielded wirewound surface mount inductor offers 10 μH inductance with ±20 % tolerance, designed with a ferrite core for effective magnetic performance. This component supports a maximum DC current of 800 mA and features a compact 3010 package with dimensions 3 mm in length, 3 mm depth, and 1 mm in height. Its shielded construction reduces electromagnetic interference, making it ideal for power circuits requiring high density mounting.
The VLS-E series includes low-profile inductors with heights up to 1.5 mm, with this model offering a 1 mm height suitable for compact electronic devices. Termination style is solder, ensuring secure placement on printed circuit boards. The operating temperature range from -40°C to 105°C allows usage in various commercial and industrial environments, including smart phones, tablets, hard disk drives, solid state drives, digital cameras, and portable gaming devices.
This inductor is RoHS compliant and designed for reliability in high-frequency switching power supply circuits, optimizing efficiency and noise suppression. The ferrite core material and shielded magnetic construction provide enhanced performance and compatibility in demanding applications.
Key features also include tape and reel packaging facilitating automated assembly processes. Its automotive standard compliance is noted as No, which is suitable for non-automotive general electronic applications.
The shielded design reduces electromagnetic interference. Ferrite core optimizes magnetic flux concentration. Maximum DC current rating of 800 mA ensures circuit stability. Compact 3010 package dimensions facilitate dense PCB layouts.
Wide operating temperature range supports industrial use. RoHS compliant for environmentally safe manufacturing. Low DC resistance reduces power loss. Solder termination style ensures robust mounting. Tape and reel packaging suitable for mass production.
This TDK surface mount inductor is ideal for industrial, consumer electronics, telecommunications, and computing applications requiring stable inductance and compact design. Explore more surface mount inductors and magnetic components at EnvMart for quality and performance.
Explore more products in our Electronic Components, Power & Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 10 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 800 mA, ensuring robust circuit operation.
The dimensions of the 3010 package case are 3 mm in length, 3 mm in depth, and 1 mm in height.
The operating temperature range for this inductor is from -40°C to 105°C, making it suitable for various industrial environments.
This inductor is constructed with a ferrite core, which optimizes magnetic flux concentration.
The termination style is solder, ensuring reliable placement on printed circuit boards.
It is packaged in tape and reel format, which is suitable for automated assembly processes.
Yes, this model is RoHS compliant, adhering to environmental and safety standards.
This inductor is suitable for consumer electronics such as smartphones, tablets, and hard disk drives due to its low profile design.
The maximum DC resistance is 468 mΩ, which helps reduce power loss in circuits.
