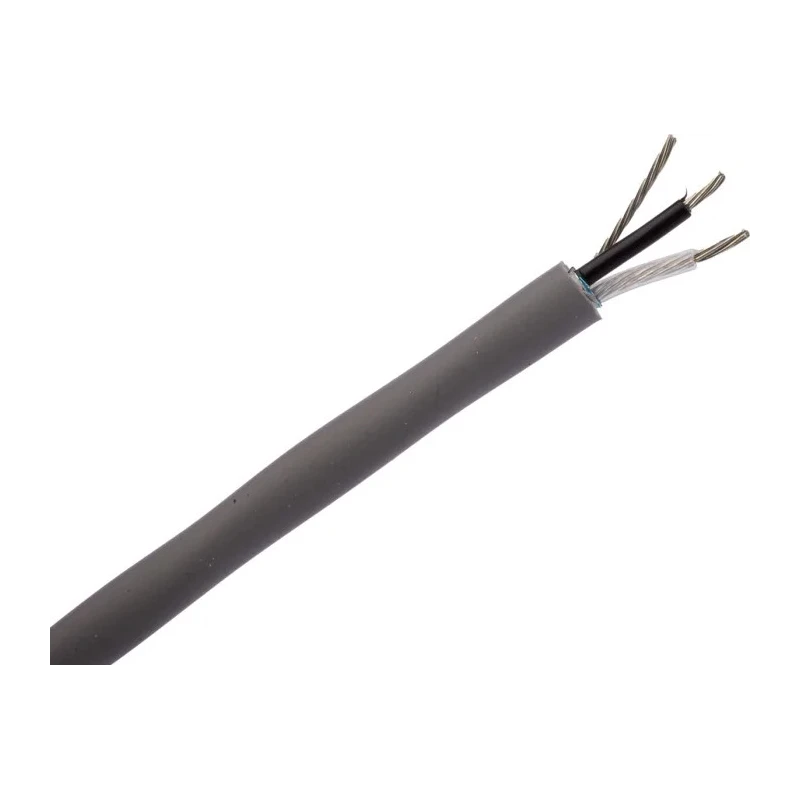

Belden 8762NH Series Screened Twisted-Pair Data Cable 1 Pair 2 Cores 0.5 mm² 304 m Silver Sheath Low Smoke Zero 8762NH.00305
Specifications
| Country of Origin | Netherlands |
|---|---|
| Voltage | 300V |
| Brand | Belden |
| CROSS SECTIONAL AREA | 0.5 mm² |
| Model | 8762NH.00305 |
| Cable Length | 304m |
| Series | 8762NH |
| Outside diameter | 5.6mm |
| Maximum Operating Temperature | 75°C |
| Number Of Cores | 2 |
| Conductor Material | Copper |
| Minimum Operating Temperature | -20°C |
| Jacket Material | Low Smoke Zero Halogen |
| Standards/Approvals | Euroclass Dca-s1 d1 a1 |
| Jacket Colour | Silver |
| Fire Behaviour | Low Smoke Zero Halogen (LSZH), Flame Retardant |
| Conductor Type | Stranded |
| Number of Strands | 7 |
| Core Strands | 7 x 28AWG |
| Size of Strands | 28AWG |
| Number of Pairs | 1 |
Key Features
- Features patented Beldfoil shielding for optimal electromagnetic interference protection.
- Constructed with a silver low smoke zero halogen (LSZH) jacket for enhanced fire safety.
- Operates reliably across temperatures from -20°C to 75°C.
- Copper stranded conductors ensure high-quality data transmission with 88.6pF/m capacitance.
- 304-meter reel length suitable for large-scale installations requiring long runs.
- Complies with Euroclass Dca-s1 d1 a1 standard for fire behaviour.
- Maximum pull tension of 210 Newtons provides mechanical durability during installation.
- Ideal for use in instrumentation, control systems, and computer network environments.
Product Description
Belden 8762NH.00305 is a screened twisted-pair data cable featuring 1 pair and 2 cores with a 0.5 mm² cross-sectional area and a total length of 304 meters. This cable is designed to deliver reliable data transmission for demanding industrial and commercial applications, including instrumentation, control systems, and computer networking.
The cable incorporates Belden's proprietary Beldfoil shielding made from aluminium and polyester foil, producing a thin, lightweight yet robust structure that offers excellent protection against electromagnetic interference (EMI). Its silver-colored low smoke zero halogen (LSZH) jacket is flame retardant and minimizes the emission of toxic fumes in the event of a fire, promoting safety in enclosed environments.
Built with stranded copper conductors composed of 7 strands of 28AWG wire, it ensures superior signal integrity with a conductor-to-conductor capacitance of 88.6 picofarads per meter. The cable’s overall diameter is 5.6 mm, and it maintains high performance across a temperature range from -20°C up to 75°C, accommodating various operational environments.
The maximum pull tension is specified at 210 Newtons, allowing installation with confidence under mechanical strain. The cable meets the Euroclass Dca-s1 d1 a1 fire safety standard and IEC 332-3C classifications.
Features patented Beldfoil shielding for optimal electromagnetic interference protection. Constructed with a silver low smoke zero halogen (LSZH) jacket for enhanced fire safety. Operates reliably across temperatures from -20°C to 75°C.
Copper stranded conductors ensure high-quality data transmission with 88.6pF/m capacitance. 304-meter reel length suitable for large-scale installations requiring long runs. Complies with Euroclass Dca-s1 d1 a1 standard for fire behaviour.
Maximum pull tension of 210 Newtons provides mechanical durability during installation. Ideal for use in instrumentation, control systems, and computer network environments.
This Belden data cable is engineered for industrial usage where signal integrity, installation robustness, and safety compliance are critical. Its extensive length and shielding properties make it suitable for extensive wiring projects in instrumentation and automation sectors.
Explore more from Belden and similar Data Cables under the Electronics & Electricals Wires & Cables category at EnvMart for reliable quality and professional-grade wiring solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this cable is 75°C.
The conductors in this model have a capacitance of 88.6 picofarads per meter.
This data cable has a total length of 304 meters.
It features patented Beldfoil shielding made from aluminium and polyester foil for optimal electromagnetic interference protection.
The minimum operating temperature is -20°C.
The outside diameter of this cable is 5.6 mm.
The jacket is made from low smoke zero halogen (LSZH) material, which is flame retardant.
This cable has 2 cores.
The maximum pull tension specified for installation is 210 Newtons.
It complies with the Euroclass Dca-s1 d1 a1 standard for fire behaviour.
This cable uses stranded copper conductors composed of 7 strands of 28AWG wire.
It is ideal for use in instrumentation, control systems, and computer network environments.
